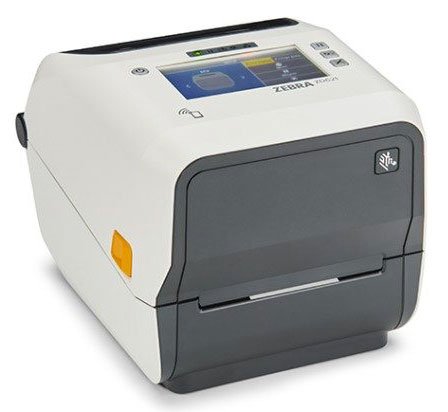

Zebra ZD62H42-T01F00EZ Barcode Label Printer

Zebra ZD6AH42-301F00EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6AH42-301F00EZ Barcode Label Printer.
Zebra ZD620t-HC - Healthcare Desktop Label Printer, Zebra ZD620t-HC, Thermal Transfer, 203 dpi, 8ips, USB/USB Host/Bluetooth/Serial/Ethernet, 4-inch Print Width
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host
Print Resolution
203 dpi
Max Print Width
4.75 inch
Ribbon Core Size
1 inch
  • Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • This printer produces high-quality labels and receipts
  • Save time and money for your business by using one printer for all your employees
  • 4.65" maximum label width to easily accommodate your needs with added productivity
  • 39.02" maximum label length for dependable, desired results
  • Supports reflective media type for maximum feasibility and better accommodation of your requirements
  • Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 256 MB standard memory for timely printing with added reliability
Read More
Discontinued See Replacement
Add to Quote
Zebra ZD620-HC Barcode Label Printer Model Overview
Zebra's ZD620 Healthcare Desktop Printers provide maximum print quality, efficiency and manageability. The ZD620-HC rises above conventional desktop printers, offering premium print quality and state of the art features. Available in direct thermal and thermal transfer models that deliver the most standard features of any Zebra desktop printer, as well as an optional LCD and 10-button interface that simplify printer setup and status. The ZD620-HC was designed for healthcare and is ready for constant disinfecting. With its optional 300 dpi printing, the tiniest labels are crisp and legible. Every ZD620-HC comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. The ZD620-HC delivers the print speed, print quality and printer manageability you need to boost productivity, accuracy and the quality of care.
Zebra ZD62H42-T01F00EZ Barcode Label Printer Overview

MAXIMUM PRINT QUALITY, EFFICIENCY AND MANAGEABILITY

As a healthcare provider, you need to give your healthcare professionals the tools to provide the very best in patient care, every second of every day. Zebra's ZD620-HC rises above conventional desktop printers with premium print quality and state of the art features. Available in both direct thermal and thermal transfer models, the ZD620-HC offers the most standard features of any Zebra desktop printer, as well as an optional color LCD and 10-button interface that simplify printer setup and status. Designed for healthcare, the ZD620-HC is ready for constant disinfecting and offers a healthcare-compliant power supply. With its optional 300 dpi printing, the tiniest labels are crisp and legible. The ZD620 runs Link-OS® and is supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 - delivering the print speed, print quality and printer manageability you need to keep boost productivity, accuracy and the quality of care.

Comprehensive connectivity options

With comprehensive connection options, you can connect the ZD620-HC to your existing wired and wireless networks, or directly to any PC. Every ZD620-HC comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1. And using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD620-HC to pair and print - as well as instantly access Zebra's extensive knowledge base of how-to videos.

Movable sensor for comprehensive media compatibility

While Zebra Certified Printer Supplies provide optimal printer performance, the ZD620-HC's movable media sensor lets you use virtually any media from any manufacturer.

Easy to clean and sanitize with a healthcare
compliant power supply

Disinfectant-ready plastics and a sealed button interface make the ZD620-HC easy to clean and disinfect, helping prevent the spread of germs in hospitals and clinics. With UV-resistant housing, the ZD620-HC supports the growing use of UV-cleaning protocols. And the power supply is IEC 60601-1 compliant for use in healthcare facilities.

Sharp 300 dpi printing for crisp labels

The ZD620-HC offers 300 dpi high resolution printing - ideal for printing the tiny labels for a wide variety of items, from patient records and patient wristbands to medication prescriptions and tiny specimen vials. And if you don't need 300 dpi printing today, you can easily change it onsite using an accessory kit.
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.99 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Application/Usage:
Desktop
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Reflective
  • Black Mark
  • Gap
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
  • Label
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Maximum Label Length:
39.02"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
7.6"
Width:
8"
Depth:
10.5"
Weight (Approximate):
5.51 lb
Miscellaneous
Package Contents:
  • ZD620t-HC Thermal Transfer Printer
  • Empty Ribbon Take-up Cores (1 in. and 0.5 in.)
  • 300 m Ribbon Core Adapters for Non-Zebra ribbon (2)
  • AC power supply
  • Power Cord(s)
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Power Adapter Included:
Yes
Platform Supported:
iOS
Energy Star:
Yes
Item Numbers
GTIN: 0783555201169
UPC: 783555201169
EAN: 0783555201169
UNSPSC: 43212108
