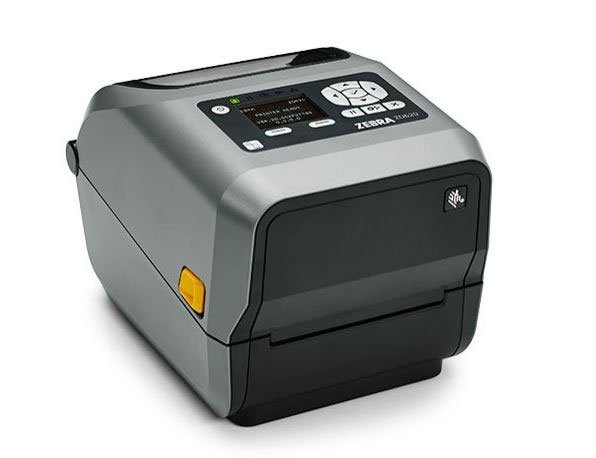

Zebra ZD62143-T11L01EZ Barcode Label Printer

Zebra ZD6A143-311L01EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A143-311L01EZ Barcode Label Printer.
Zebra ZD620t - Desktop Label Printer, Zebra ZD620t, Thermal Transfer, 300 dpi, 6ips, USB/USB Host/Serial/Ethernet/Bluetooth/Wi-Fi, Dispenser, LCD User Interface, 4-inch Print Width
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Wi-Fi
Print Resolution
300 dpi
Printer Options
Peeler, Dispenser
Max Print Width
4.75 inch
Ribbon Core Size
1 inch
  • Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.65" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports roll fed media type for dependable, efficient results with maximum productivity
  • Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 256 MB standard memory to ensure maximum efficiency with great quality printing results
Read More
Discontinued See Replacement
Add to Quote
Zebra ZD620 Barcode Label Printer Model Overview
Zebra's ZD620 4-Inch Performance Desktop Printers provide maximum print quality, efficiency and mangeability. The next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the ZD620 meets a wide variety of application requirements. The ZD620 is easy to set up and configure and has an option 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted. You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host.
Zebra ZD62143-T11L01EZ Barcode Label Printer Overview

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. As the next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in both direct thermal and thermal transfer models, as well as healthcare-specific models, the ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. The ZD620 runs Link-OS and is supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 - delivering the print speed, print quality and printer manageability you need to keep your operations moving forward.

DEPLOYMENT AND APPLICATION FLEXIBILITY

Backwards compatibility with virtually any existing printer

With the ZD620, whether you are currently using a Zebra or competitive printer, you'll be able to use the same label formats and applications you're using today. The ZD620 supports both EPL and ZPL printer languages. And with on printer Virtual Devices, part of Zebra's Print DNA suite of tools and utilities, the ZD620 can use languages normally associated with other printer brands.

Comprehensive connectivity options

With comprehensive connection options, you can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1. And using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD620 to pair and print - as well as instantly access Zebra's extensive knowledge base of how-to videos.

Movable sensor for comprehensive media compatibility

While Zebra Certified Printer Supplies provide optimal printer performance, the ZD620's movable media sensor lets you use virtually any media from any manufacturer, giving you the flexibility to utilize supplies you may have on hand or continue to utilize an existing supplies provider.

Go green with linerless media

Support for linerless media eliminates waste and delivers more labels per roll for fewer roll changes, while providing excellent print quality. For optimal results and to ensure trouble-free operation, the adhesive formulation of the media must be matched to the material of the printer platen roller. Zebra offers a complete line of linerless media that is designed and tested to ensure trouble free printer operation.

EASY TO MANAGE

Easily manage all your printers - all from a single location The ZD620 supports Zebra Link-OS, a one-of-a-kind enterprise printer operating system that makes it easier than ever to manage and troubleshoot your networked printers from one remote location. With optional Printer Profile Manager Enterprise, you can manage one printer, a group of specific printers or all printers anywhere in the world. Instantly discover every Link-OS printer on your network, including the ZD620 and other Zebra mobile, desktop and industrial printers - there's no need to walk through the facility to locate,configure or troubleshoot printers interface lets you see printer status at a glance.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.27"
Application/Usage:
Desktop
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
  • Label
  • Gap
  • Reflective
  • Black Mark
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Maximum Label Length:
39"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
7.5"
Width:
8"
Depth:
10.5"
Weight (Approximate):
5.50 lb
Miscellaneous
Package Contents:
  • ZD620t Thermal Transfer Printer
  • Empty Ribbon Take-Up Cores (1 in. and 0.5 in.)
  • 2 x 300 m Ribbon Core Adapters For Non-Zebra Ribbon
  • AC Power Supply
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • iOS
Energy Star:
Yes
Warranty
Limited Warranty:
12 Month
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD62143-T11L01EZ Barcode Label Printer is also known as ZEB-ZD62143T11L01EZ or ZD62143T11L01EZ.
