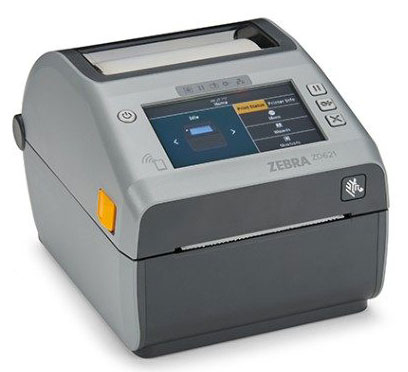

Zebra ZD62143-D01L01EZ Barcode Label Printer

Zebra ZD6A143-D01L01EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A143-D01L01EZ Barcode Label Printer.
Zebra ZD621 - Barcode Label Printers, Zebra ZD620d, DT ZD620, LCD, Standard EZPL, 300 dpi, US Cord, USB, USB Host, Serial, Ethernet, 802.11, BT USA/Canada
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Wi-Fi
Print Resolution
300 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • This printer produces high-quality labels and receipts
  • Save time and money for your business by using one printer for all your employees
  • Print your documents from the comfort of your couch with Wireless LAN connectivity enabled
  • 4.65" maximum label width for your convenience and feasible usability
  • 39.02" maximum label length for your convenience and feasible usability
  • Supports tag media type for better reliance and maximum usability
  • Direct Thermal Printer with desktop application/usage provides reliable, feasible printing solution
Read More
Discontinued See Replacement
Add to Quote
Zebra ZD621 Barcode Label Printer Model Overview
The Zebra ZD621 is a direct thermal or thermal transfer desktop printer, which can print labels up to 4 inches wide, and delivers premium features, maximum performance and unmatched security for years of quality printing. Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And Print Secure makes it easy to shield printers from cyberattacks. Operates with ease with the five LED icons to take the guesswork out of printer status, and has a three-button user interface for added functionality and control. Get the optional 4.3" full color touch LCD with 3-button user interface. Connectivity includes Ethernet, Serial, USB and USB Host standard, and optional dual wireless radio with 802.11ac Wi-Fi and Bluetooth 4.1 - available as factory- or field-installable. The new ZD621 replaces the  legacy GX Series, ZD500 and ZD620 Series, offering more functions and capabilities powered by a new innovative architecture that can run more tasks. Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery, carrying case, peeler, cutter, keyboard display unit, mounting plate, and enclosed power supply.
Zebra ZD62143-D01L01EZ Barcode Label Printer Overview

MAXIMUM PRINT QUALITY, EFFICIENCY AND MANAGEABILITY

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. As the next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in both direct thermal and thermal transfer models, as well as healthcare-specific models, the ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. The ZD620 runs Link-OS® and is supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 - delivering the print speed, print quality and printer manageability you need to keep your operations moving forward.

DEPLOYMENT AND APPLICATION FLEXIBILITY

Backwards compatibility with virtually any existing printer

With the ZD620, whether you are currently using a Zebra or competitive printer, you'll be able to use the same label formats and applications you're using today. The ZD620 supports both EPL and ZPL printer languages. And with on printer Virtual Devices, part of Zebra's Print DNA suite of tools and utilities, the ZD620 can use languages normally associated with other printer brands.

Comprehensive connectivity options

With comprehensive connection options, you can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1. And using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD620 to pair and print - as well as instantly access Zebra's extensive knowledge base of how-to videos.

Movable sensor for comprehensive media compatibility

While Zebra Certified Printer Supplies provide optimal printer performance, the ZD620's movable media sensor lets you use virtually any media from any manufacturer, giving you the flexibility to utilize supplies you may have on hand or continue to utilize an existing supplies provider.

Go green with linerless media

Support for linerless media eliminates waste and delivers more labels per roll for fewer roll changes, while providing excellent print quality. For optimal results and to ensure trouble-free operation, the adhesive formulation of the media must be matched to the material of the printer platen roller. Zebra offers a complete line of linerless media that is designed and tested to ensure trouble free printer operation.

EASY TO MANAGE
Easily manage all your printers - all from a single location

The ZD620 supports Zebra Link-OS, a one-of-a-kind enterprise printer operating system that makes it easier than ever to manage and troubleshoot your networked printers from one remote location. With optional Printer Profile Manager Enterprise, you can manage one printer, a group of specific printers or all printers anywhere in the world. Instantly discover every Link-OS printer on your network, including the ZD620 and other Zebra mobile, desktop and industrial printers - there's no need to walk through the facility to locate,

Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.25"
Application/Usage:
Desktop
Mobile Device Printing:
Yes
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Wireless LAN:
Yes
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Tag
  • Label
  • Receipt
  • Black Mark
  • Reflective
  • Gap
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Roll
  • Tag Stock
  • Continuous Receipt
  • Wristband
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Maximum Label Length:
39.02"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
5.9"
Width:
7"
Depth:
8.7"
Weight (Approximate):
3.53 lb
Miscellaneous
Package Contents:
  • ZD620d Direct Thermal Printer
  • AC Power Supply
  • Power Cords
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Power Adapter Included:
Yes
Platform Supported:
  • iOS
  • PC
Energy Star:
Yes
Country of Origin:
China
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD62143-D01L01EZ Barcode Label Printer is also known as ZEB-ZD62143D01L01EZ or ZD62143D01L01EZ.
