Full specifications (PDF)
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.99 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Application/Usage:
Desktop

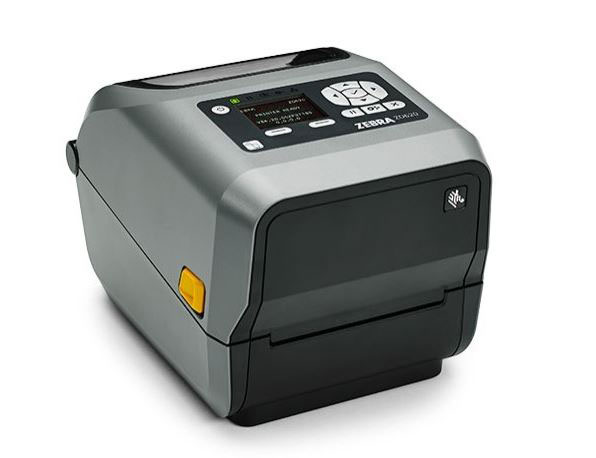

Zebra ZD620 Barcode Label Printer Model Overview
Zebra's ZD620 4-Inch Performance Desktop Printers provide maximum print quality, efficiency and mangeability. The next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the ZD620 meets a wide variety of application requirements. The ZD620 is easy to set up and configure and has an option 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted. You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host.

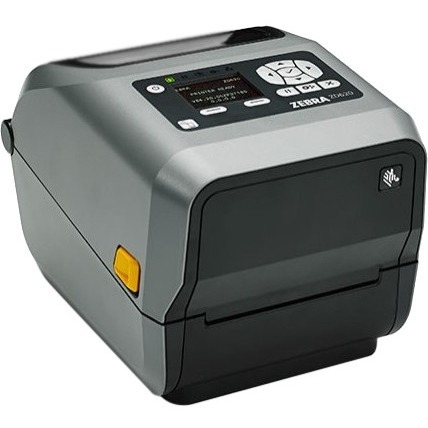

Zebra ZD62142-T21L01EZ Barcode Label Printer Overview
MAXIMUM PRINT QUALITY, EFFICIENCY AND MANAGEABILITY
When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. As the next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in both direct thermal and thermal transfer models, as well as healthcare-specific models, the ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. The ZD620 runs Link-OS® and is supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 - delivering the print speed, print quality and printer manageability you need to keep your operations moving forward.
Technical Information
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Wireless LAN:
Yes
Media Types & Handling
Media Type:
- Label
- Receipt
- Black Mark
- Reflective
- Gap
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Roll
- Tag Stock
- Continuous Receipt
- Wristband
- Linerless
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Maximum Label Length:
39.02"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
7.6"
Width:
8"
Depth:
10.5"
Weight (Approximate):
5.51 lb
Miscellaneous
Package Contents:
- ZD620t Thermal Transfer Printer
- Empty Ribbon Take-up Cores
- 300 m Ribbon Core Adapters for Non-Zebra Ribbon
- AC Power Supply
- Power Cord(s)
- USB Cable
- Quick Start Guide
- Regulatory Guide
Cables Included:
- USB
- AC
Power Adapter Included:
Yes
Platform Supported:
- PC
- iOS
Energy Star:
Yes
Country of Origin:
China
Item Numbers
UNSPSC:
43212108
Questions? Get help from a
Printer Expert!
Printer Expert!
The Zebra ZD62142-T21L01EZ Barcode Label Printer is also known as
ZEB-ZD62142T21L01EZ
or ZD62142T21L01EZ.
