Zebra ZD62142-D11L01EZ Barcode Label Printer

Zebra ZD6A142-D11L01EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A142-D11L01EZ Barcode Label Printer.
Zebra ZD620d - Desktop Label Printer, Zebra ZD620d, Direct Thermal, 203 dpi, 8ips, USB/USB Host/Serial/Ethernet/Bluetooth/Wi-Fi, Dispenser (Peeler), 4-inch Print Width, US Power Cord, LCD Touchscreen
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Wi-Fi
Print Resolution
203 dpi
Printer Options
Peeler, Dispenser
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Print methods: Thermal Transfer or Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host, Serial, Ethernet, BTLE
  • Media dancer
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR qualified
  • Real Time Clock
Read More
Discontinued See Replacement
Add to Quote
Zebra ZD620 Barcode Label Printer Model Overview
Zebra's ZD620 4-Inch Performance Desktop Printers provide maximum print quality, efficiency and mangeability. The next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the ZD620 meets a wide variety of application requirements. The ZD620 is easy to set up and configure and has an option 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted. You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host.
Zebra ZD62142-D11L01EZ Barcode Label Printer Overview
MAXIMUM PRINT QUALITY, EFFICIENCY AND MANAGEABILITY

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. The next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. Link-OS® and Zebra's powerful Print DNA tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 - the print speed, print quality and manageability you need to keep your operations moving forward.

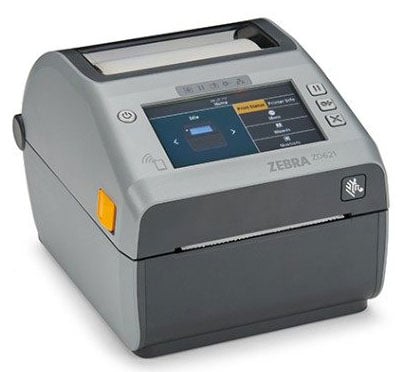

Configuration is a snap with the optional color LCD and 10-button user interface

It's easy to set up and configure the ZD620 with the optional 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted.

Deployment and application flexibility

Backwards compatibility with virtually any existing printer

Whether you are currently using a Zebra or competitive printer, can use the same label formats and applications you're using today. The ZD620 supports both EPL and ZPL printer languages. And with on printer Virtual Devices, part of Zebra's Print DNA suite of tools and utilities, the ZD620 can use languages normally associated with other printer brands.

Comprehensive connectivity options

You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1. And with the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD620 to pair and print - as well as instantly access Zebra's extensive knowledge base of how-to videos.

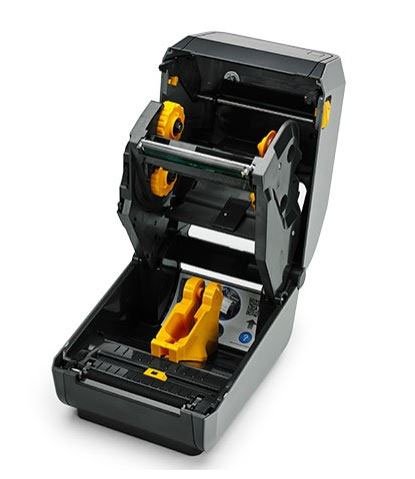

Movable sensor for comprehensive media compatibility

While Zebra Certified Printer Supplies provide optimal printer performance, the ZD620's movable media sensor lets you use virtually any media from any manufacturer, giving you the flexibility to utilize supplies you may have on hand or continue to utilize an existing supplies provider.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.99 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Application/Usage:
Desktop
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Wireless LAN:
Yes
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Label
  • Reflective
  • Black Mark
  • Gap
  • Roll Fed
  • Fanfold
  • Continuous Label
  • Die-cut Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Linerless
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39.02"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
5.9"
Width:
7"
Depth:
8.7"
Weight (Approximate):
3.53 lb
Miscellaneous
Platform Supported:
  • PC
  • iOS
Energy Star:
Yes
Warranty
Limited Warranty:
12 Month
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD62142-D11L01EZ Barcode Label Printer is also known as ZEB-ZD62142D11L01EZ or ZD62142D11L01EZ.
