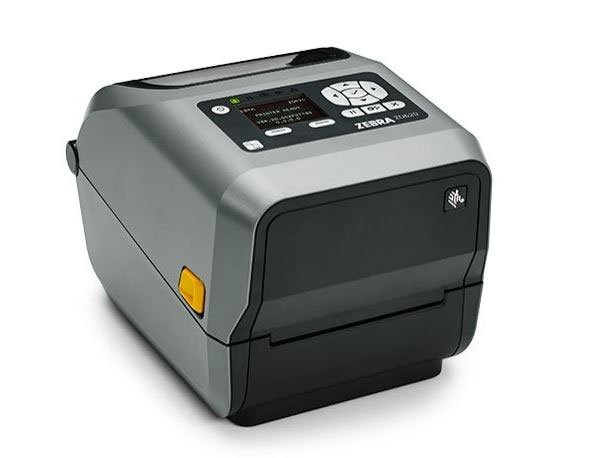

Zebra ZD62043-T01L01EZ Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZD6A043-301L01EZ Barcode Label Printer.

Zebra ZD620t - Desktop Label Printer, Zebra ZD620t, Thermal Transfer, 300 dpi, 6ips, USB/USB Host/Serial/Ethernet/Bluetooth/Wi-Fi, Icon User Interface, 4-inch Print Width

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Wi-Fi

Print Resolution

300 dpi

Max Print Width

4.75 inch

Ribbon Core Size

1 inch

Thermal Transfer print method
ZPL and EPL programming languages
5 status icon, 3 button user interface
USB 2.0, USB Host, Serial, Ethernet, BTLE
Media dancer
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR qualified
Real Time Clock

Need a different version? See all Zebra ZD620 Barcode Label Printers

Discontinued See Replacement

Quantity	Unit Price	Discount
2	$835.08	1% OFF
5	$818.21	3% OFF

Add to Quote

Zebra ZD62043-T01L01EZ Barcode Label Printer

Overview

Full specifications (PDF)

Zebra ZD620 Barcode Label Printer Model Overview

Zebra's ZD620 4-Inch Performance Desktop Printers provide maximum print quality, efficiency and mangeability. The next generation in Zebra's desktop printer line, the ZD620 replaces Zebra's popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the ZD620 meets a wide variety of application requirements. The ZD620 is easy to set up and configure and has an option 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted. You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host.

Zebra ZD62043-T01L01EZ Barcode Label Printer Overview

MAXIMUM THROUGHPUT, PRINT QUALITY AND MANAGEABILITY

When print quality, productivity, application flexibility and management simplicity matter, the ZD620 delivers. This premium desktop thermal transfer printer brings advanced industrial printing quality to a compact desktop printer, offering the fastest speeds and best quality in its class.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label/Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5.98 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.25"

Application/Usage:

Desktop

Mobile Device Printing:

Yes

Memory

Standard Memory:

512 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Bluetooth:

Yes

Wireless LAN:

Yes

Near Field Communication (NFC):

Yes

Media Types & Handling

Media Type:

Tag
Label
Receipt
Black Mark
Reflective
Gap
Roll Fed
Fanfold
Die-cut Label
Continuous Roll
Tag Stock
Continuous Receipt
Wristband

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Maximum Label Length:

39.02"

Power Description

Power Source:

AC Supply

Physical Characteristics

Height:

7.6"

Width:

Depth:

10.5"

Weight (Approximate):

5.50 lb

Miscellaneous

Package Contents:

ZD620 Thermal Transfer Printer
Empty Ribbon Take-up Cores (1 in. and 0.5 in.)
2 x 300 m Ribbon Core Adapter for Non-Zebra Ribbon
AC Power Supply
Power Cords (EU & UK)
USB Cable
Quick Start Guide
Regulatory Guide

Cables Included:

Power Adapter Included:

Yes

Energy Star:

Yes

Item Numbers

GTIN: 0000034717042

UPC: 000034717042

EAN: 0000034717042

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra ZD62043-T01L01EZ Barcode Label Printer is also known as ZEB-ZD62043T01L01EZ
