Zebra ZD50043-T01200FZ Barcode Label Printer

Zebra ZD6A143-301F00EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A143-301F00EZ Barcode Label Printer.
Zebra ZD500 - Desktop Printer, Zebra ZD500, Thermal Transfer, 300 dpi, 4ips, USB/USB Host/Bluetooth/Serial/Ethernet, 4-inch, Standard Tear, LCD User Interface
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, Serial (RS-232), USB, USB Host
Print Resolution
150 dpi, 300 dpi
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 128 MB standard memory to ensure maximum efficiency with great quality printing results
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

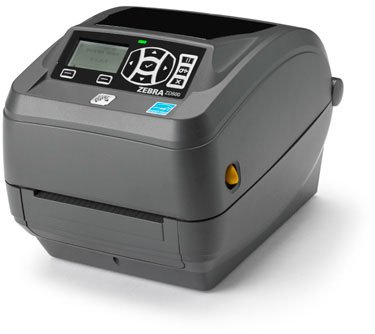

Zebra ZD500 Barcode Label Printer Model Overview
Zebra's ZD500 Performance Desktop Printer is compact and feature packed for performance. Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you'll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, the ZD500 is ideal for numerous applications such as retail tagging as well as manufacturing, government and healthcare tracking. Since it is built with the same innovative technology as Zebra's industry-leading RFID printer/encoders, existing applications can be easily adapted for use with the ZD500R. The ZD500R supports next generation inlays and offers 802.11 a/b/g/n wireless and Bluetooth connectivity.
Zebra ZD50043-T01200FZ Barcode Label Printer Overview

Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Code 49
  • Maxi Code
  • Codablock
  • Data Matrix
  • QR Code
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Tear-off
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
256 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
Media Sensor:
  • Cover Open Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Adjustable Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
0.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
  • XML
  • ZBI
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.90 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555044278
UPC: 783555044278
EAN: 0783555044278
UNSPSC: 43212108
