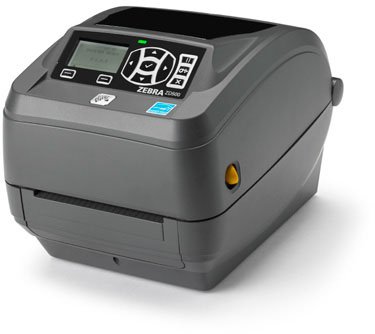

Zebra ZD50042-T21A00FZ Barcode Label Printer

Zebra ZD6A142-321L01EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A142-321L01EZ Barcode Label Printer.
Zebra ZD500 - Desktop Printer, Zebra ZD500, Thermal Transfer, 203 dpi, 6ips, USB/USB Host/Serial/Ethernet/Wi-Fi/Bluetooth, Cutter, 4-inch, LCD User Interface
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, Serial (RS-232), USB, USB Host, Wi-Fi
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Monochrome print color capability to meet your printing requirements with maximum efficiency
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for your convenience and feasible usability
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Cutter helps you determine the whereabouts of your design you want the shape to be cut to ensure maximum efficiency
Read More

Need a different version? See all Zebra ZD500 Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZD50042-T21A00FZ Barcode Label Printer
Zebra ZD50042-T21A00FZ Barcode Label Printer Zebra ZD50042-T21A00FZ Barcode Label Printer
Zebra ZD50042-T21A00FZ Barcode Label Printer
Zebra ZD50042-T21A00FZ Barcode Label Printer
Full specifications (PDF)
Zebra ZD500 Barcode Label Printer Model Overview
Zebra's ZD500 Performance Desktop Printer is compact and feature packed for performance. Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you'll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, the ZD500 is ideal for numerous applications such as retail tagging as well as manufacturing, government and healthcare tracking. Since it is built with the same innovative technology as Zebra's industry-leading RFID printer/encoders, existing applications can be easily adapted for use with the ZD500R. The ZD500R supports next generation inlays and offers 802.11 a/b/g/n wireless and Bluetooth connectivity.
Zebra ZD50042-T21A00FZ Barcode Label Printer Overview

Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Code 49
  • Maxi Code
  • Codablock
  • Data Matrix
  • QR Code
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Tear-off
  • Element Energy Equalizer
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
256 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Adjustable Media Sensor
  • Cover Open Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
0.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
  • XML
  • ZBI
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.90 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD50042-T21A00FZ Barcode Label Printer is also known as ZEB-ZD50042T21A00FZ
