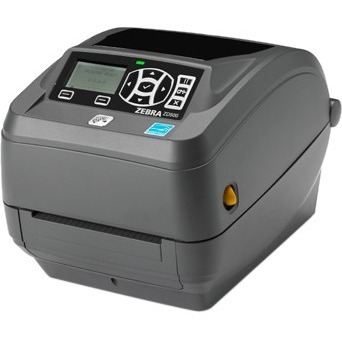

Zebra ZD50042-T21200FZ Barcode Label Printer

Zebra ZD6A142-321F00EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A142-321F00EZ Barcode Label Printer.
Zebra ZD500 - Desktop Printer, Zebra ZD500, Thermal Transfer, 203 dpi, 6ips, USB/USB Host/Bluetooth/Serial/Ethernet, Cutter, 4-inch, LCD User Interface
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, Serial (RS-232), USB, USB Host
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • 4.25" maximum label width for your convenience and feasible usability
  • 39" maximum label length for your convenience and feasible usability
  • Supports label media type for dependable, efficient results with maximum productivity
  • Features multi-functional knives for conveniently cutting the paper to provide you with the desired shape
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides maximum usability with better reliance
  • Comes with 128 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra ZD500 Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZD50042-T21200FZ Barcode Label Printer
Zebra ZD50042-T21200FZ Barcode Label Printer Zebra ZD50042-T21200FZ Barcode Label Printer
Zebra ZD50042-T21200FZ Barcode Label Printer
Zebra ZD50042-T21200FZ Barcode Label Printer
Full specifications (PDF)

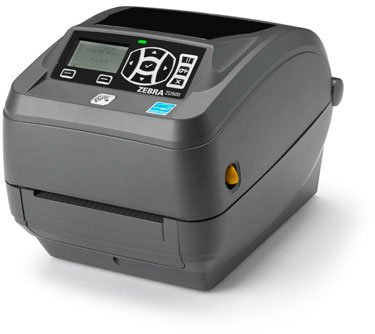

Zebra ZD500 Barcode Label Printer Model Overview
Zebra's ZD500 Performance Desktop Printer is compact and feature packed for performance. Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you'll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, the ZD500 is ideal for numerous applications such as retail tagging as well as manufacturing, government and healthcare tracking. Since it is built with the same innovative technology as Zebra's industry-leading RFID printer/encoders, existing applications can be easily adapted for use with the ZD500R. The ZD500R supports next generation inlays and offers 802.11 a/b/g/n wireless and Bluetooth connectivity.
Zebra ZD50042-T21200FZ Barcode Label Printer Overview

Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Code 49
  • Maxi Code
  • Codablock
  • Data Matrix
  • QR Code
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Tear-off
  • Element Energy Equalizer
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
256 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Adjustable Media Sensor
  • Cover Open Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
0.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
  • XML
  • ZBI
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.90 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD50042-T21200FZ Barcode Label Printer is also known as ZEB-ZD50042T21200FZ
