Zebra ZD50042-T11A00FZ Barcode Label Printer

Zebra ZD6A142-311L01EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6A142-311L01EZ Barcode Label Printer.
Zebra ZD500R - Desktop Label Printer, Zebra ZD500, USB/USB Host/Serial/Ethernet/Wi-Fi/Bluetooth, 4-inch Print Width, 203 dpi, LCD User Interface, Includes Dispenser/Peeler
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth
Print Resolution
203 dpi
Printer Options
Peeler, Dispenser
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 128 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
Read More
Discontinued See Replacement
Add to Quote

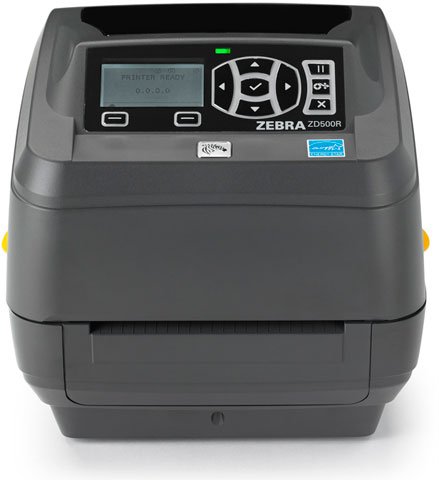

Zebra ZD500R RFID Printer Model Overview
The ZD500R extends Zebra's broad range of RFID printers by adding UHF RFID printing and encoding to Zebra's line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in store exception tagging. The ZD500R is available as direct thermal and thermal transfer printers and is compatible with inlays from all leading suppliers to support a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. The ZD500R leverages Zebra's new Link-OS environment—Zebra's innovative software platform with powerful applications that enhance the capabilities of the printer, making it significantly easier to integrate into global operations and manage from any location.
Zebra ZD50042-T11A00FZ Barcode Label Printer Overview

Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Code 49
  • Maxi Code
  • Codablock
  • Data Matrix
  • QR Code
  • Aztec Code
Peel Facility:
Yes
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Tear-off
  • Element Energy Equalizer
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
256 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Adjustable Media Sensor
  • Cover Open Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
0.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
  • XML
  • ZBI
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.90 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555113370, 0880959991853
UPC: 783555113370, 880959991853
EAN: 0783555113370, 0880959991853
UNSPSC: 43212108
