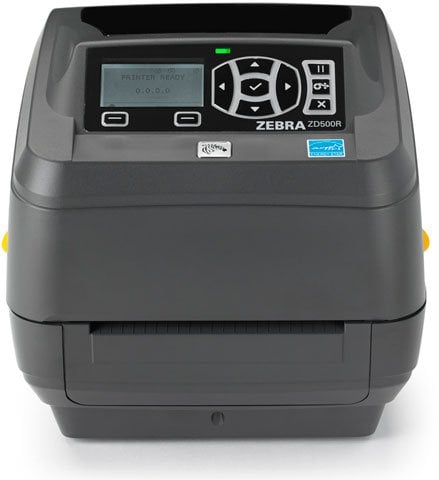

Zebra ZD50042-T112R1FZ RFID Printer

Part Number: ZD50042-T112R1FZ
Model: ZD500R

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Interface Options
Bluetooth, Serial (RS-232), USB, Wi-Fi
Print Resolution
203 dpi
Printer Options
Peeler, Dispenser

Product Description:

  Desktop RFID Label Printer, Zebra ZD500R, UHF Frequency Range, Includes Dispenser, USB/USB Host/Bluetooth/Serial/Ethernet, 4-inch Print Width, 203 dpi, LCD User Interface

Zebra ZD500R RFID Printer Model Overview

The ZD500R extends Zebra's broad range of RFID printers by adding UHF RFID printing and encoding to Zebra's line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in store exception tagging. The ZD500R is available as direct thermal and thermal transfer printers and is compatible with inlays from all leading suppliers to support a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. The ZD500R leverages Zebra's new Link-OS environment—Zebra's innovative software platform with powerful applications that enhance the capabilities of the printer, making it significantly easier to integrate into global operations and manage from any location.
Zebra ZD50042-T112R1FZ RFID Printer Overview

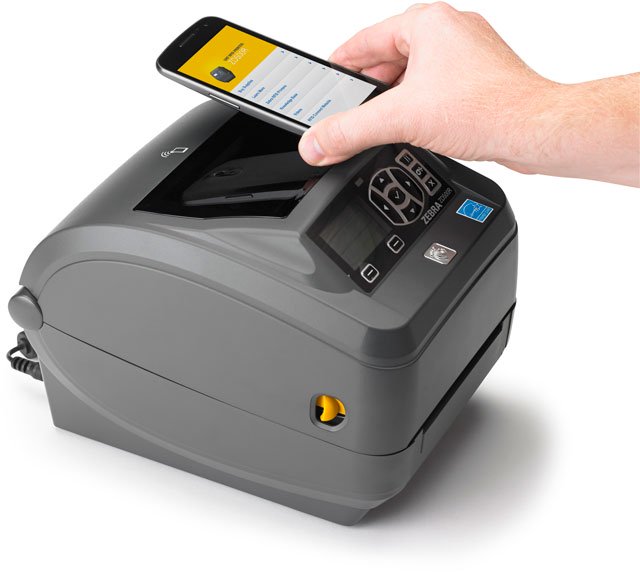

Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you'll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, it is ideal for numerous applications such as retail tagging, and manufacturing, government and healthcare tracking.

Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Code 49
  • Maxi Code
  • Codablock
  • Data Matrix
  • QR Code
  • Aztec Code
Peel Facility:
Yes
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Tear Bar
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
256 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
Media Sensor:
  • Cover Open Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Adjustable Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
0.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZPL
  • XML
  • ZBI
  • EZPL
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.90 lb
Miscellaneous
Package Contents:
  • ZD500R Thermal Transfer RFID Label Printer
  • North America Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
