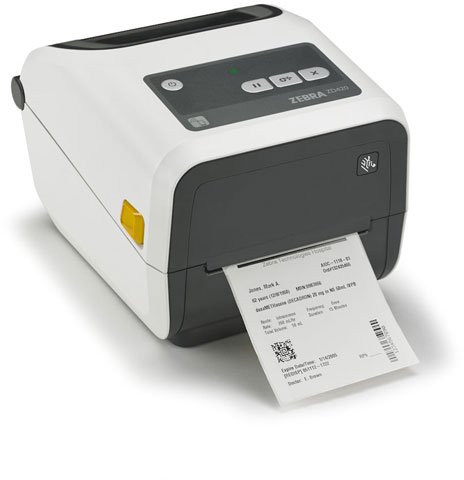

Zebra ZD42H42-C01E00EZ Barcode Label Printer

Zebra ZD4AH42-C01E00EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD4AH42-C01E00EZ Barcode Label Printer.
Zebra ZD420c-HC - Desktop Printer, Zebra ZD420c-HC, Ribbon Cartridge, 203 dpi, 6ips, USB/USB Host/Bluetooth/Ethernet, ZPL2/EPL2/XML/ZBI, US Cord, Healthcare, Standard Tear
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, USB, USB Host
Print Resolution
203 dpi
Max Print Width
4.75 inch
Ribbon Core Size
0.5 inch, 1 inch
  • Print methods: Thermal Transfer or Direct Thermal
  • IEC 60601-1 compliant power supply and healthcare
  • wipeable plastics
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR qualified
Read More
Discontinued See Replacement
Add to Quote
Zebra ZD420-HC Barcode Label Printer Model Overview
Zebra's ZD420 Healthcare Desktop Printers provide a new level of ease of use, application flexibility, management simplicity and TCO. With the ZD420-HC, you get an easy to use clamshell design and an intuitive interface. Designed for healthcare, the ZD420-HC is ready for the constant disinfecting and offers a healthcare compiant power supply. Available in both direct thermal and thermal transfer models, the ZD420-HC run Link-OS and are supported by Zebra's powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The ZD420-HC comes standard with USB and USB Host and you can also choose optional Ethernet or serial and a dual wireless radio that offers the very latest wireless options, Wi-Fi and MFi certified Bluetooth 4.1, which enables printing from any iOS device.
Zebra ZD42H42-C01E00EZ Barcode Label Printer Overview
A NEW LEVEL OF EASE OF USE, APPLICATION FLEXIBILITY, MANAGEMENT SIMPLICITY AND TCO

Zebra's ZD420-HC printers deliver features and functionality that take deployment and management simplicity, ease-of-use, application flexibility and total cost of ownership (TCO) to a new level in this printer class. Designed for healthcare, this printer is ready for the constant disinfecting and offers a healthcare compliant power supply. Available in both direct thermal and thermal transfer models, the ZD420-HC offers Zebra's easy to use clamshell design combined with an intuitive interface. With optional 300 dpi printing, even the tiniest labels are crisp and legible. ZD420-HC printers run Link-OS® and are supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The ZD420-HC - when ease of use, flexibility and management simplicity matter.

Multiple connectivity options
With multiple connection options, you can connect the ZD420-HC to your existing wired and wireless networks, or directly to any PC. The ZD420-HC comes standard with USB and USB Host. You can also choose optional Ethernet or serial and a dual wireless radio that offers the very latest wireless options, Wi-Fi 802.11ac and MFi certified Bluetooth 4.1, which enables printing from any iOS device. And using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD420-HC to pair and print - as well as instantly access Zebra's extensive knowledge base of how-to videos.

Easy to clean and sanitize
Disinfectant-ready plastics and a sealed button interface make the ZD420-HC easy to clean and disinfect, helping prevent the spread of germs in hospitals and clinics. With UV-resistant housing, the ZD420-HC supports the growing use of UV-cleaning protocols. And the power supply is IEC 60601-1 compliant for use in healthcare facilities.

Optional battery for cordless operation
With the removable desktop battery power option, you can easily transport the ZD420-HC printer on a workstation on wheels for on-the-spot label printing at patient bedside and in the lab to reduce opportunity for errors and improve patient safety. The battery housing mounts securely to the printer base and connecting the battery is as simple as snapping the battery into the housing. And the high-capacity battery can power it all for a full shift - the printer at maximum print speed, along with a peeler, cutter and keyboard.

Sharp 300 dpi printing for crisp labels
High resolution printing 300 dpi printing is ideal for the tiny labels on everything from patient records and patient wristbands to medication prescriptions and tiny specimen vials. And if you don't need 300 dpi printing today, you can easily add it onsite using an accessory kit.

Movable sensor for comprehensive media compatibility
The ZD420-HC's movable media sensor lets you use virtually any media from any manufacturer, giving you the flexibility to utilize supplies you may have on hand or continue to utilize any existing supplies provider.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Application/Usage:
Desktop
Memory
Standard Memory:
256 MB
Interfaces/Ports
USB:
Yes
Network & Communication
Ethernet:
Yes
Media Types & Handling
Media Type:
  • Label
  • Reflective
  • Black Mark
  • Gap
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Maximum Label Length:
39.02"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
7.5"
Width:
8"
Depth:
10.5"
Weight (Approximate):
5.30 lb
Miscellaneous
Package Contents:
  • ZD420t-HC Thermal Transfer Printer
  • Empty Ribbon Take-UP Cores (1 in. and 0.5 in.)
  • 300 m Ribbon Core Adapters for Non-Zebra Ribbon (2)
  • AC Power Supply
  • Power Cord(s)
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Power Adapter Included:
Yes
Platform Supported:
  • iOS
  • PC
Energy Star:
Yes
TAA Compliant:
No
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0009196232004
UPC: 009196232004
EAN: 0009196232004
UNSPSC: 43212108
