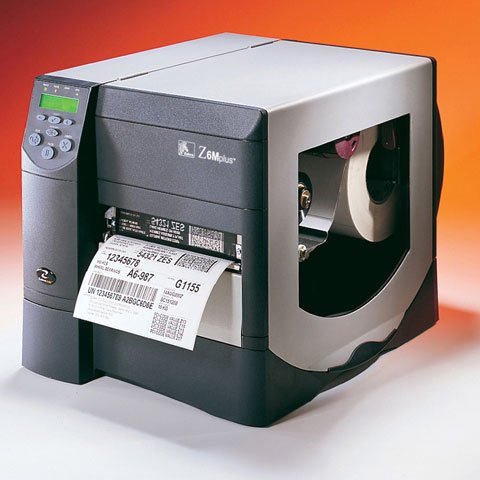

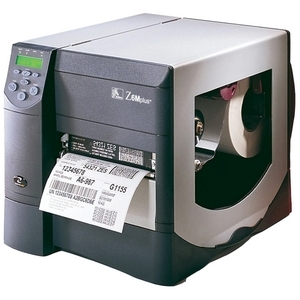

Zebra Z6M00-3001-5020 Barcode Label Printer

The Zebra Z6M00-3001-5020 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z6M Plus - Thermal transfer & direct thermal, 300 dpi, 6 ips, 6.6" print width, ZebraNet PrintServer II & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & peeler with full roll rewind. Order cables separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Max Print Width
6.75 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
  • 6.75" maximum label width for your convenience and feasible usability
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 8 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra Z6M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z6M00-3001-5020 Barcode Label Printer
Zebra Z6M00-3001-5020 Barcode Label Printer Zebra Z6M00-3001-5020 Barcode Label Printer Zebra Z6M00-3001-5020 Barcode Label Printer
Zebra Z6M00-3001-5020 Barcode Label Printer
Zebra Z6M00-3001-5020 Barcode Label Printer

Full specifications (PDF)
Zebra Z6M Plus Barcode Label Printer Model Overview
The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z6M00-3001-5020 Barcode Label Printer Overview

Z6Mplus is ideal for shipping and receiving, compliance labeling, and brand protection for commercial or small business needs. Rely on this top-of-the-line printer to get the job done, cost-effectively.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
Peel Facility:
Yes
Rewinder:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Notched
  • Tag Stock
  • Perforated Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
6.75"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
13.4"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z6Mplus Label Printer
  • Power Cord with US plug
  • Safety Guide
  • User's CD
Cables Included:
AC
Additional Information:
  • Power Cord with US plug
  • Peel with full roll rewind
  • Auto-calibration
  • Color-coded operator cues
  • Zebra's E3 Printhead Energy Control
  • Real Time Clock
  • Media sensors: Transmissive and Reflective
  • Supports user-defined fonts and graphics, including custom logos
  • ZPL II drawing commands, including boxes and lines
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55024 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z6M00-3001-5020 Barcode Label Printer is also known as ZEB-Z6M0030015020 or Z6M0030015020.
