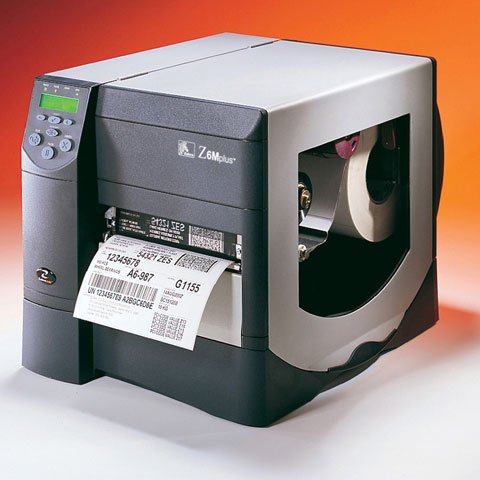

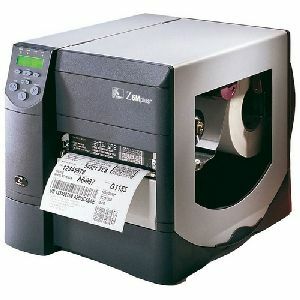

Zebra Z6M Plus – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer
Part Number:
Z6M00-3001-0020
Request a Bulk Pricing Quote
Chat with a Product Expert
Zebra Z6M Plus Barcode Label Printer Model Overview
The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z6M00-3001-0020 Barcode Label Printer Overview
Processing labels fast is a breeze with the Z6Mplus industrial and commercial bar code printer. Z6Mplus printer output labels quickly and efficently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z6Mplus die-cast metal consutruction means reliablity and top performance for industrial environments and distribution centres.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
Codabar Code 11 Code 39 Code 93 EAN-8 EAN-13 Interleaved 2 of 5 Industrial 2 of 5 ISBT-128 LOGMARS MSI Planet Code Plessey POSTNET RSS Standard 2 of 5 UPC 2 or 5 Digit Extension EAN With 2 or 5 Digit Extension UPC-A UPC-E Code 128-A Code 128-B Code 128-C UCC Codablock Code 49 Data Matrix Maxi Code PDF-417 QR Code Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Interfaces/Ports
Network & Communication
Ethernet Technology:
Ethernet
Display & Graphics
Media Types & Handling
Media Type:
Continuous Form Fanfold Die-cut Label Notched Tag Stock Perforated Label Black Mark
Media Sensor:
Transmissive Media Sensor Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Length:
39"
Fonts & Emulation
Power Description
Physical Characteristics
Miscellaneous
Package Contents:
Z6Mplus Label Printer Safety Guide User's CD Power Cord with US plug
Additional Information:
Print length: 73" (1,851 mm) 32-bit processor Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm) Metal media cover with large clear window Auto-calibration Color-coded operator cues Zebra's E3 Printhead Energy Control Real Time Clock Media sensors: Outside diameter: 3.2" (81.3 mm) Standard length: 1476' (450 m) or 984' (300 m) Ratio: 3:1 media roll to ribbon ratios Ribbon width: 2" (51 mm) to 4.33" (110 mm) Ribbon setup: Ribbon wound ink side out ID Core: 1.0" (25.4 mm) Sets: IBM Code Page 850 International character set Optional European and Asian font sets Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands, including boxes and lines Thermal transfer: 40° F (5° C) to 104° F (40° C) Direct thermal: 32° F (0° C) to 104° F (40° C)
Certifications & Standards:
IEC60950 EN55022 Class B EN55024 Class B EN55024 EN61000-3-2 EN61000-3-3 CULus CE Marking FCC-B ICES-003 VCCI C-Tick NOM IRAM CCC GOST-R BSMI
Warranty
Additional Warranty Information:
Printhead is warranted separately.
Item Numbers
Recommended Accessories
Category
Barcode Label Rewinder (1)
Print Server (1)
Printer Accessories (7)
Recommended Accessories for Model: Zebra Z6M00-3001-0020 Barcode Label Printer
Top Barcode Label Rewinder Purchased With Zebra Z6M00-3001-0020
Zebra G34111M Label Rewinder
Label Rewinders, Zebra, Kit PCBA with Motor for Media Rewind Spindle ZT420 ZM600
Item on backorder — chat for lead time
Top Print Server Purchased With Zebra Z6M00-3001-0020
Zebra 79823 Print Server
Print Server, Zebra, Kit Internal ZebraNet PrintServer 10/100 ZMX00 Series, Xi4 Series, 105Slplus, ZE500 Series
In Stock
The Zebra Z6M00-3001-0020 Barcode Label Printer is also known as
ZEB-Z6M0030010020
or Z6M0030010020.
Zebra Z6M00-3001-0020 Barcode Label Printer
Full specifications (PDF)
