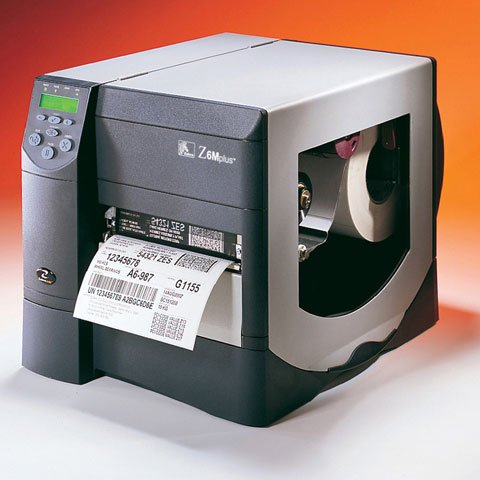

Zebra Z6M Plus – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: Z6M00-2401-0030
Model: Z6M Plus
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Rewind Kit, Imager, Serial or Parallel Interface, Print Resolution203 dpi, Maximum Print Width, 6.6,
Explore all Zebra Z6M Plus Barcode Label Printers
Add to Quote
Zebra Z6M00-2401-0030 Barcode Label Printer
Zebra Z6M00-2401-0030 Barcode Label Printer
Zebra Z6M00-2401-0030 Barcode Label Printer
Zebra Z6M00-2401-0030 Barcode Label Printer Zebra Z6M00-2401-0030 Barcode Label Printer

Full specifications (PDF)

Zebra Z6M Plus Barcode Label Printer Model Overview

The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z6M00-2401-0030 Barcode Label Printer Overview

The Z6Mplus Label Printer is ideal for shipping and receiving, compliance labeling, and brand protection for commercial or small business needs. Zebra Printer Management, and complex multi-language font support, the Z6Mplus is an unbeatable commercial wide web printer.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • TLC 39
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Size:
  • Custom Size - 7" x 39" - Roll Paper
  • 7" x Roll Paper
Maximum Roll Diameter:
8"
Maximum Label Width:
6.75"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
13.4"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z6Mplus Label Printer
  • Power Cord with US plug
  • Safety Guide
  • User's CD
Cables Included:
AC
Additional Information:
  • Real time clock
  • Unicode -Compliant
  • Color-coded operator cues
  • Auto-detectable power supply
  • X-Mode (XML Enabled Printer)
  • Zebra's E3 Printhead Energy Control
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
