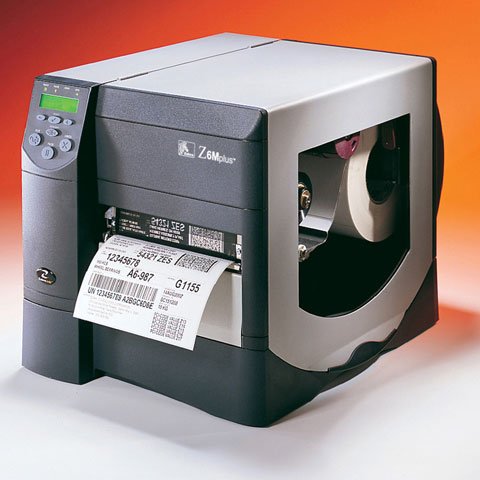

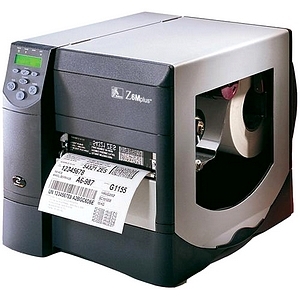

Zebra Z6M00-2001-5230 Barcode Label Printer

The Zebra Z6M00-2001-5230 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z6M Plus - Z6MPlus Direct Thermal-Thermal Transfer Printer (203 dpi, 2MB Flash, Power Cord with US Plug, Peel with Full Roll Rewind, Socket Board for ZebraNet Wireless PrintServer and ZebraNet 10/100)
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Wi-Fi
Print Resolution
203 dpi
Max Print Width
6.75 inch
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 6.75" maximum label width for your convenience and feasible usability
  • 39" maximum label length for dependable, desired results
  • Supports fanfold media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • Custom Size - 6.73" x 39" media size for maximum feasibility and better accommodation of your requirements
Read More

Need a different version? See all Zebra Z6M Plus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Z6M00-2001-5230 Barcode Label Printer
Zebra Z6M00-2001-5230 Barcode Label Printer Zebra Z6M00-2001-5230 Barcode Label Printer Zebra Z6M00-2001-5230 Barcode Label Printer
Zebra Z6M00-2001-5230 Barcode Label Printer
Zebra Z6M00-2001-5230 Barcode Label Printer

Full specifications (PDF)
Zebra Z6M Plus Barcode Label Printer Model Overview
The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z6M00-2001-5230 Barcode Label Printer Overview

The Z6Mplus Label Printer is ideal for shipping and receiving, compliance labeling, and brand protection for commercial or small business needs. Zebra Printer Management, and complex multi-language font support, the Z6Mplus is an unbeatable commercial wide web printer.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • Aztec Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • TLC 39
Peel Facility:
Yes
Rewinder:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Size:
  • Custom Size - 6.73" x 39"
  • 6.75" x Roll Paper
Maximum Roll Diameter:
8"
Maximum Label Width:
6.75"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
13.4"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z6Mplus Label Printer
  • Power Cord with US plug
  • Safety Guide
  • User's CD
Cables Included:
AC
Additional Information:
  • Real time clock
  • CF Memory option
  • Unicode -Compliant
  • Color-coded operator cues
  • ZPL Programming Language
  • Auto-detectable power supply
  • Zebra's E3 Printhead Energy Control
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
