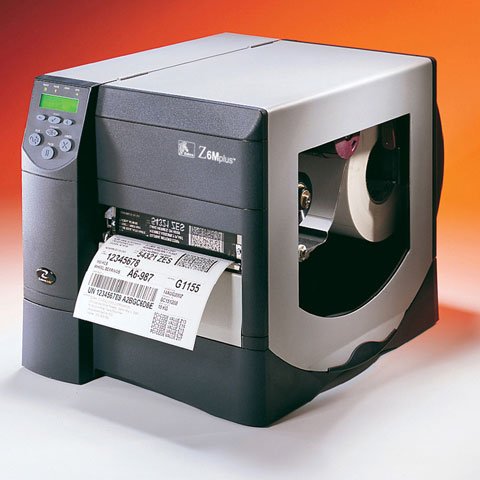

Zebra Z6M Plus – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: Z6M00-2001-0220
Model: Z6M Plus
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Wi-Fi
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, 10 ips, 6.6" print width, ZebraNet PrintServer II & wireless PrintServer interfaces, 8MB RAM & 2MB flash. Includes ZebraLink& US power cord. Order cables separately. See accessories. Wireless functionality requires wireless network compact flash card (Part# LA-4137-1020-WW), not included. See accessories.
Explore all Zebra Z6M Plus Barcode Label Printers
Add to Quote
Zebra Z6M00-2001-0220 Barcode Label Printer
Zebra Z6M00-2001-0220 Barcode Label Printer
Zebra Z6M00-2001-0220 Barcode Label Printer
Zebra Z6M00-2001-0220 Barcode Label Printer Zebra Z6M00-2001-0220 Barcode Label Printer

Full specifications (PDF)

Zebra Z6M Plus Barcode Label Printer Model Overview

The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z6M00-2001-0220 Barcode Label Printer Overview

Processing labels fast is a breeze with the Z6Mplus Thermal Printer. At 6.6 inches (254 mm) per second, this printer outputs labels quickly and efficiently, maximizing production and minimizing wait time for demanding jobs like variable information applications. The Z6Mplus die-cast metal construction means reliability and top performance for industrial environments and distributions centers.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • Codabar
  • ISBT-128
  • UPC-E
  • UPC-A
  • Plessey
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Planet Code
  • Industrial 2 of 5
  • LOGMARS
  • POSTNET
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • MSI
  • Codablock
  • Micro PDF-417
  • Maxi Code
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • TLC 39
  • RSS
  • EAN-8
  • EAN-13
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Form
  • Die-cut Label
  • Notched
  • Tag Stock
  • Black Mark
  • Perforated Label
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
2
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • ZBI
Software
Software Included:
  • Ztools Utilities
  • ZPL Programming Guide
  • BAR-ONE Life/Patinum deni
  • BAR-ONE for mySAP Business Suite
  • Zebra's Universal Windows Print Driver
Power Description
Input Voltage:
110 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
13.3"
Width:
13.4"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z6Mplus Network Thermal Label Printer
  • Power Cord
  • Safety Guide
Cables Included:
AC
Additional Information:
  • Real time clock
  • 32 bit processor
  • Auto-calibration
  • Auto-ranging power supply
  • Color-coded operator cues
  • Socket Board for ZebraNet Wireless Print Server and Memory cards
  • Direct Thermal Operating Temperature 32 to 104 Degree Fahrenheit
  • Thermal Transfer Operating Temperature 40 to 104 Degree Fahrenheit
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55024 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • cULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI (pending)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
