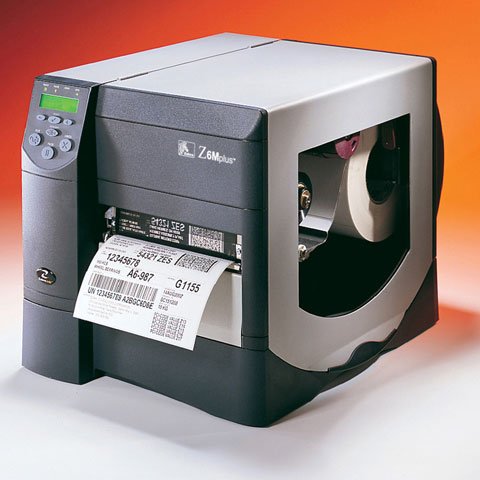

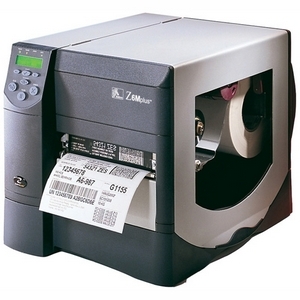

Zebra Z6M00-2001-0020 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra Z6M Plus - Thermal transfer, 203 dpi, 10 ips, 6.6" print width, ZebraNet PrintServer II & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink & US power cord. Order cables separately. See accessories.
Enhanced performance from a name you trust

The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z6Mplus
  • Product Name: Z6Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 13.4"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Zebra Z6Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord
    • Zebra Z6Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord
  • Certifications & Standards:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • Product Markings:
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)
  • Additional Information:
    • Print length: 73" (1,851 mm)
    • 32-bit processor
    • Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
    • Metal media cover with large clear window
    • Auto-calibration
    • Color-coded operator cues
    • Zebra's E3 Printhead Energy Control
    • Real Time Clock
    • Media sensors:
    • Transmissive
    • Reflective
    • Ribbon Characteristics:
    • Outside diameter: 3.2" (81.3 mm)
    • Standard length: 1476' (450 m) or 984' (300 m)
    • Ratio: 3:1 media roll to ribbon ratios
    • Ribbon width: 2" (51 mm) to 4.33" (110 mm)
    • Ribbon setup: Ribbon wound ink side out
    • ID Core: 1.0" (25.4 mm)
    • Fonts and Graphics:
    • Sets: IBM Code Page 850 International character set
    • Optional European and Asian font sets
    • Supports user-defined fonts and graphics, including custom logos
    • ZPL II drawing commands, including boxes and lines
    • Operating temperature:
    • Thermal transfer: 40° F (5° C) to 104° F (40° C)
    • Direct thermal: 32° F (0° C) to 104° F (40° C)

Media Types & Handling

  • Maximum Label Width: 7"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Die-cut Label
    • Notched
    • Tag Stock
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Memory

  • Standard Memory: 8 MB
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model Z6M Plus
Print Resolution 203 dpi
Print Method Thermal Transfer
Print Speed 10
Label Core 3 inches
Maximum Print Width 6.60
Max Label Width 6.75
Interface Options Serial, Ethernet
Max Roll Outer Diameter 8
Printer Type Industrial
Printer Mobility Not Mobile
