Zebra Z6M00-2001-0000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

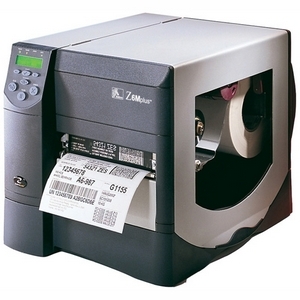

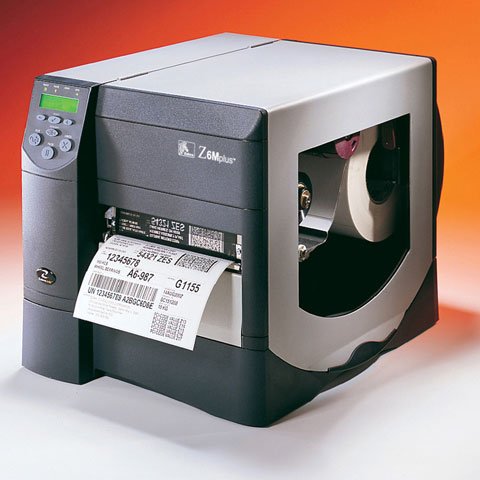

Zebra Z6M Plus - Thermal transfer, 203 dpi, 10 ips, 6.6" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink & US power cord. Order cables separately. See accessories.
Enhanced performance from a name you trust

The new Z6M Plus is up to five times faster than the original Z6M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z6M Plus metal printers from Zebra provide exceptional performance and value.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 7"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ZPL II
    • ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 13.32" (338.33mm) x 13.43" (341.12mm) x 18.69" (475mm)
    • 13.32" (338.33mm) x 13.43" (341.12mm) x x 18.69" (475mm)
  • Weight: 34.7 lb (15.74 kg) - without packaging

Agency Approvals

  • Agency Approvals:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Other

  • Package Contents:
    • Z6Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model Z6M Plus
Print Speed 10
Label Core 3 inches
Print Resolution 203 dpi
Print Method Thermal Transfer
Interface Options Serial, Parallel
Maximum Print Width 6.60
Printer Type Industrial
Max Roll Outer Diameter 8
Max Label Width 6.75
Printer Mobility Not Mobile
Ribbon Core 1
