Zebra Z4M00-3004-0000 Barcode Label Printer

The Zebra Z4M00-3004-0000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra Z4M Plus - Thermal transfer & direct thermal printing, 300 dpi, 4" print width, Parallel and Serial Interfaces, ZPL, 8MB DRAM, 2MB Flash. Includes Power Cord with EU/UK Plug. Order cables separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 1 maximum label width for dependable, desired results
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for dependable, efficient results with maximum productivity
  • Comes with 8 MB standard memory for timely printing with added reliability
  • LCD display is long-lasting with reduced screen burning to ensure maximum efficiency
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

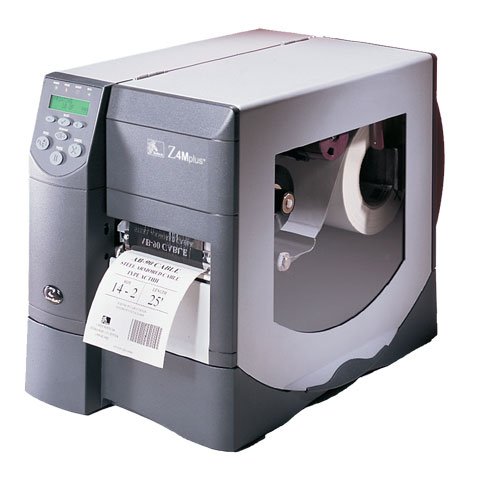

Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.

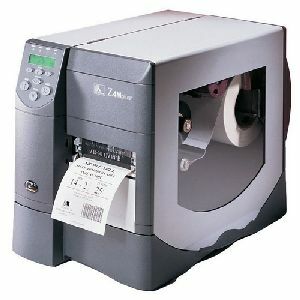

Zebra Z4M00-3004-0000 Barcode Label Printer Overview

Form follows function in this simple-to-operate Z4Mplus die-cast metal thermal printer. This dependable performer offers many standard features, including ZebraNet Bridge for the efficiency of centralized printer management. Rely on these top-of-the-line printers to get the job done, cost-effectively, with Zebra's faster linear PCMCIA Flash memory option that drives productivity farther than ever before!

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Notched
  • Tag Stock
  • Perforated Label
  • Black Mark
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
1
Maximum Label Length:
39"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Software
Software Included:
  • Ztools Utilities
  • ZPL II Programming Guide
  • BAR-ONE Lite/Platinum demo
  • BAR-ONE for mySAP Business Suite
  • Zebra's Universal Window Printer Driver
Power Description
Input Voltage:
220 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Thermal Label Printer
  • Safety Guide
  • UK Power Cord
Cables Included:
AC
Additional Information:
  • Real Time Clock
  • Auto-calibration
  • 32-bit processor
  • Color-coded operator cues
  • Adjustable Reflective media Sensor
  • Zebra's E3 Printhead Energy Control
  • Fixed Transmissive media Sensor
  • Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
  • Ribbon Characteristics:
  • Outside diameter: 3.2" (81.3 mm)
  • Standard length: 1476' (450 m) or 984' (300 m)
  • Ratio: 3:1 media roll to ribbon ratios
  • Ribbon width: 2" (51 mm) to 4.33" (110 mm)
  • Ribbon setup: Ribbon wound ink side out
  • ID Core: 1.0" (25.4 mm)
  • Fonts and Graphics:
  • Sets: IBM Code Page 850 International character set
  • Optional European and Asian font sets
  • Supports user-defined fonts and graphics, including custom logos
  • ZPL II drawing commands, including boxes and lines
  • Operating temperature:
  • Thermal transfer: 40° F (5° C) to 104° F (40° C)
  • Direct thermal: 32° F (0° C) to 104° F (40° C)
Platform Supported:
PC
Certifications & Standards:
  • IEC60950
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • CULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI (pending)
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:

Printhead is warranted separately.

Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Z4M00-3004-0000 Barcode Label Printer is also known as ZEB-Z4M0030040000 or Z4M0030040000.
