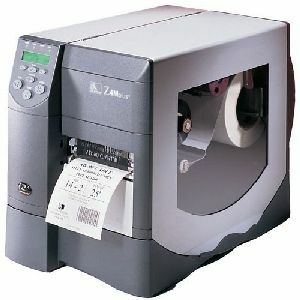

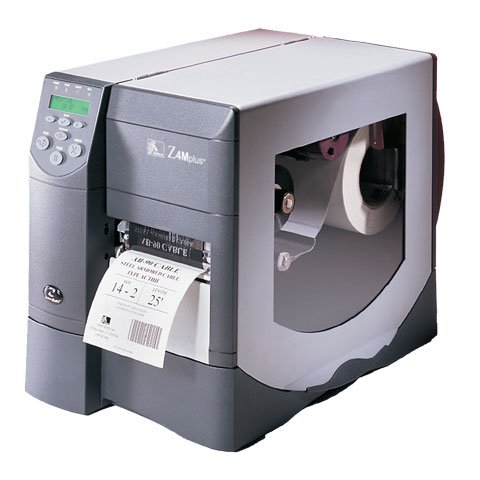

Zebra Z4M00-3001-0020 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra Z4M Plus - Thermal transfer, 300 dpi, 6 ips, 4" print width, ZebraNet PrintServer II & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink & US power cord. Order cables separately. See accessories.
Enhanced performance from a name you trust

The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z4Mplus
  • Product Name: Z4Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Zebra Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug
    • Zebra Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug
  • Certifications & Standards:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • Product Markings:
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)
  • Additional Information:
    • Auto-calibration
    • Real Time Clock
    • Color-coded operator cues
    • Auto-detectable power supply
    • Zebra's E3 Printhead Energy Control
    • External Socket: Standard version

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Die-cut Label
    • Notched
    • Tag Stock
    • Perforated Label
    • Black Mark
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model Z4M Plus
Interface Options Serial, Ethernet
Print Method Thermal Transfer
Label Core 3 inches
Print Speed 6
Max Label Width 4.25
Maximum Print Width 4.09
Max Roll Outer Diameter 8
Printer Type Industrial
Print Resolution 305 dpi
Printer Mobility Not Mobile
Ribbon Core 1
