Zebra Z4M00-2001-5000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

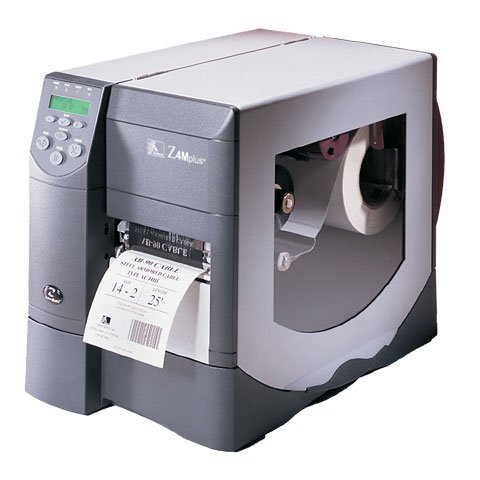

Zebra Z4M Plus - Thermal transfer, 203 dpi, 10 ips, 4" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & peeler with full roll rewind. Order cables separately. See accessories.
Enhanced performance from a name you trust

The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Peel Facility
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z4Mplus
  • Product Name: Z4Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • US Power Cord
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • US Power Cord
  • Certifications & Standards:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • Product Markings:
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)
  • Additional Information:
    • Print length: 73" (1,851 mm)
    • 32-bit processor
    • Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
    • Metal media cover with large clear window
    • Auto-calibration
    • Color-coded operator cues
    • Zebra's E3 Printhead Energy Control
    • Real Time Clock
    • Media sensors:
    • Transmissive
    • Reflective
    • Ribbon Characteristics:
    • Outside diameter: 3.2" (81.3 mm)
    • Standard length: 1476' (450 m) or 984' (300 m)
    • Ratio: 3:1 media roll to ribbon ratios
    • Ribbon width: 2" (51 mm) to 4.33" (110 mm)
    • Ribbon setup: Ribbon wound ink side out
    • ID Core: 1.0" (25.4 mm)
    • Fonts and Graphics:
    • Sets: IBM Code Page 850 International character set
    • Optional European and Asian font sets
    • Supports user-defined fonts and graphics, including custom logos
    • ZPL II drawing commands, including boxes and lines
    • Operating temperature:
    • Thermal transfer: 40° F (5° C) to 104° F (40° C)
    • Direct thermal: 32° F (0° C) to 104° F (40° C)

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Die-cut Label
    • Notched
    • Tag Stock
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Memory

  • Standard Memory: 8 MB
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model Z4M Plus
Max Label Width 4.25
Print Method Thermal Transfer
Interface Options Serial, Parallel
Print Resolution 203 dpi
Max Roll Outer Diameter 8
Included Features Peeler
Maximum Print Width 4.09
Printer Type Industrial
Print Speed 10
Label Core 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
