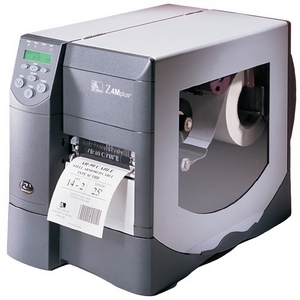

Zebra Z4M00-2001-3000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra Z4M Plus - Thermal transfer, 203 dpi, 10 ips, 4" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & peeler. Order cables separately. See accessories.
Enhanced performance from a name you trust

The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ZPL II
    • ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 13.32" (338.33mm) x 10.93" (277.62mm) x 18.69" (475mm)
    • 13.32" (338.33mm) x 10.93" (277.62mm) x x 18.69" (475mm)
  • Weight: 32.4 lb (14.7 kg) - without packaging

Included Features

  • Included Features: Peel

Agency Approvals

  • Agency Approvals:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Other

  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model Z4M Plus
Max Roll Outer Diameter 8
Included Features Peeler
Interface Options Serial, Parallel
Print Method Thermal Transfer
Print Resolution 203 dpi
Max Label Width 4.25
Maximum Print Width 4.09
Printer Type Industrial
Print Speed 10
Label Core 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
