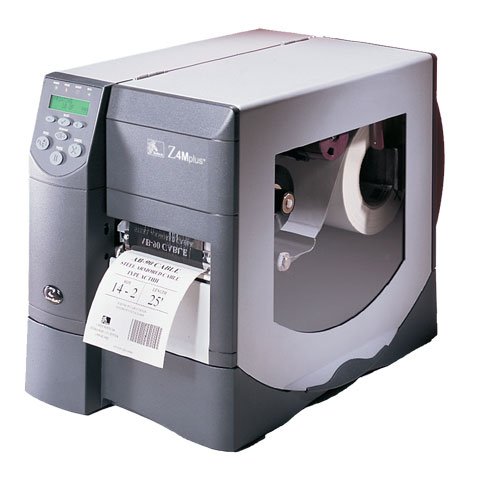

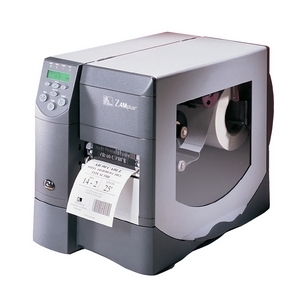

Zebra Z4M Plus – Barcode Label Printer – 203 dpi – Thermal Transfer – Cutter

Part Number: Z4M00-2001-1020
Model: Z4M Plus
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), Wi-Fi
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, 10 ips, 4" print width, Serial & PrintServerII interfaces, 8MB RAM & 2MB flash and Cutter. Includes US power cord. Does not include wireless card. (See (Part# LA-4137-1020-WWR). Order cables separately. See accessories.
Explore all Zebra Z4M Plus Barcode Label Printers
Add to Quote
Zebra Z4M00-2001-1020 Barcode Label Printer
Zebra Z4M00-2001-1020 Barcode Label Printer
Zebra Z4M00-2001-1020 Barcode Label Printer
Zebra Z4M00-2001-1020 Barcode Label Printer Zebra Z4M00-2001-1020 Barcode Label Printer

Full specifications (PDF)

Zebra Z4M Plus Barcode Label Printer Model Overview

The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-2001-1020 Barcode Label Printer Overview

Processing labels fast is a breeze with the Z4Mplus industrial and commercial bar code printer. At 10 inches (254 mm) per second, this Z4Mplus printer output labels quickly and efficently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z4Mplus die-cast metal consutruction means reliablity and top performance for industrial environments and distribution centres.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Width:
4.09"
Memory
Standard Memory:
8 MB
Flash Memory:
2 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Wireless LAN:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • Z4Mplus Label Printer
  • Safety Guide
  • User's CD
  • Power Cord With US Plug
Cables Included:
AC
Certifications & Standards:

Agency Approvals:

  • IEC60950
  • EN55024 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3

Product Markings:

  • cULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • BSMI (pending)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
