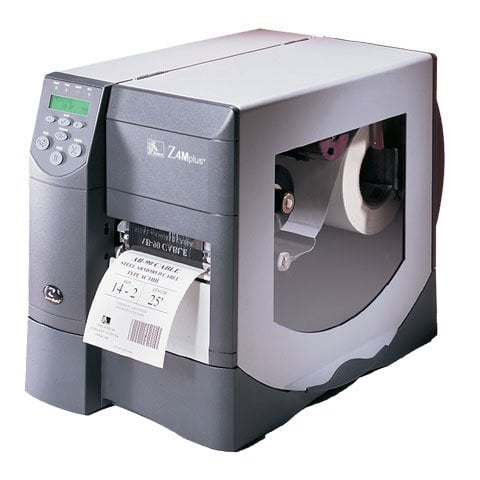

Zebra Z4M Plus – Barcode Label Printer – 203 dpi – Thermal Transfer
Part Number:
Z4M00-2001-0020
Request a Bulk Pricing Quote
Chat with a Product Expert
Zebra Z4M Plus Barcode Label Printer Model Overview
The new Z4M Plus is up to five times faster than the original Z4M printer when processing complex, variable-information labels. Faster processing results in faster first label out and less time between labels. With intuitive controls, optional internal Ethernet connectivity, and print speeds up to 10"/254 mm per second, the new Z4M Plus metal printers from Zebra provide exceptional performance and value.
Zebra Z4M00-2001-0020 Barcode Label Printer Overview
Processing labels fast is a breeze with the Z4Mplus industrial and commercial bar code printer. At 10 inches (254 mm) per second, this Z4Mplus printer output labels quickly and efficently, maximizing production and minimizing wait time for demanding jobs like variable-information applications. The Z4Mplus die-cast metal consutruction means reliablity and top performance for industrial environments and distribution centres.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
Codabar Code 11 Code 39 Code 93 EAN-8 EAN-13 Interleaved 2 of 5 Industrial 2 of 5 ISBT-128 LOGMARS MSI Planet Code Plessey POSTNET RSS Standard 2 of 5 UPC 2 or 5 Digit Extension EAN With 2 or 5 Digit Extension UPC-A UPC-E Code 128-A Code 128-B Code 128-C UCC Codablock Code 49 Data Matrix Maxi Code PDF-417 QR Code Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Interfaces/Ports
Network & Communication
Ethernet Technology:
Ethernet
Display & Graphics
Media Types & Handling
Media Type:
Continuous Form Fanfold Die-cut Label Notched Tag Stock Perforated Label Black Mark
Media Sensor:
Transmissive Media Sensor Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Fonts & Emulation
Power Description
Physical Characteristics
Miscellaneous
Package Contents:
Z4Mplus Label Printer Safety Guide User's CD Power Cord With US Plug
Additional Information:
Print length: 73" (1,851 mm) 32-bit processor Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm) Metal media cover with large clear window Auto-calibration Color-coded operator cues Zebra's E3 Printhead Energy Control Real Time Clock Media sensors: Outside diameter: 3.2" (81.3 mm) Standard length: 1476' (450 m) or 984' (300 m) Ratio: 3:1 media roll to ribbon ratios Ribbon width: 2" (51 mm) to 4.33" (110 mm) Ribbon setup: Ribbon wound ink side out ID Core: 1.0" (25.4 mm) Sets: IBM Code Page 850 International character set Optional European and Asian font sets Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands, including boxes and lines Thermal transfer: 40° F (5° C) to 104° F (40° C) Direct thermal: 32° F (0° C) to 104° F (40° C)
Certifications & Standards:
Agency Approvals:
IEC60950 EN55024 Class B EN55024 EN61000-3-2 EN61000-3-3 Product Markings:
cULus CE Marking FCC-B ICES-003 VCCI C-Tick NOM IRAM CCC GOST-R BSMI (pending)
Warranty
Additional Warranty Information:
Printhead is warranted separately.
