Full specifications (PDF)
Connectivity Technology:
Wireless
Zebra VC8010SSBB31CBAAXX Data Terminal
Part Number:
VC8010SSBB31CBAAXX
Model:
VC80 Vehicle Mount Computer

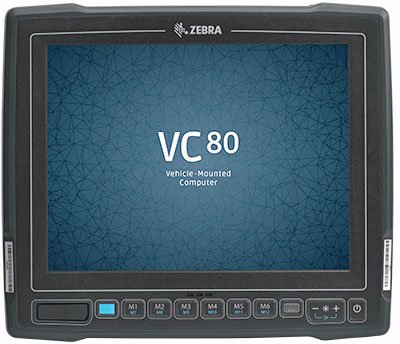

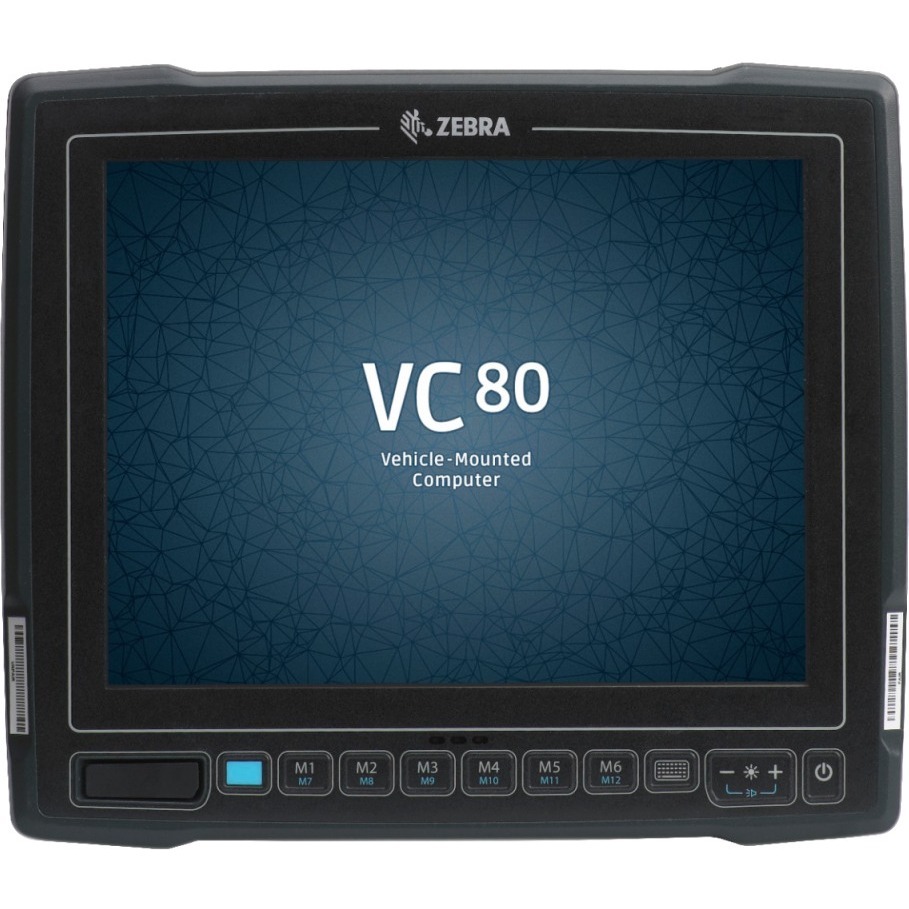

Zebra VC80 Data Terminal Model Overview
With the Zebra VC80, you can give operators in material handling vehicles mobile access to the desktop applications they need to complete tasks faster and more accurately. You get full Windows support in a super rugged design built for your toughest indoor and outdoor environments - from warehouses and distribution centers to airports, seaports, railway yards and more - plus the fastest wireless connections available to keep workers connected to your data and business applications. And with its compact design and flexible mounting options, it’s easy to install in forklifts, clamp trucks, yard mules, cranes and more. The VC80 - real desktop power for your material handling vehicles.
Zebra VC8010SSBB31CBAAXX Data Terminal Overview
COMPLETE TASKS FASTER AND MORE ACCURATELY
The VC80 fits in virtually any warehouse/material handling vehicle and features Windows 10 IoT Enterprise, Embedded standards 7 or Windows 7 Professional operating system. Programmable keys that simplify the most complex operations and the field replaceable touchscreen or optional keyboard which can be used even with the thickest gloves.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3845
Processor Core:
Quad-core (4 Core)
Processor Type:
Atom
Processor Speed:
1.91 GHz
Memory
Standard Memory:
4 GB
Storage
Solid State Drive Capacity:
64 GB
Display & Graphics
Screen Size:
10.4"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Power Description
Power Source:
Power Supply
Software
Operating System:
Windows 10 IoT Enterprise
Physical Characteristics
Width:
9.3"
Depth:
3.5"
Length:
10.4"
Weight (Approximate):
8.60 lb
Miscellaneous
Certifications & Standards:
Sealing:
- IP66
- IEC 60721-3-5M3
- MIL-STD 810G
- Method 514.6
- MIL-STD 810G
- Method 516.6
- MIL STD 810-G
- Method 505.5
- Procedure I
- UL/cUL/IEC/EN 60950-1 Indoor use
- UL/cUL/IEC/EN 60950-22 Outdoor
- FCC Part 15, Class B
- ICES 003 Class B
- EN55022
- EN 301 489-1
- EN 301 489-17
- FCC Part 15.247
- FCC Part 15.407
- EN 300 328
- EN 301 893
- AS/NZS 4268
- IEC UL94-V0
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
