Zebra VC8010SSBB21CCAAXX Data Terminal

Zebra VC8010SSBC31CCAAXX Data Terminal A newer version of this item is available.
It is replaced by the Zebra VC8010SSBC31CCAAXX Data Terminal.
Zebra VC80 Vehicle Mount Computer - 10" STANDARD DISPLAY, INTEL E3845 QUAD CORE, 1.91 GHZ, 2 MB CACHE, 4 GB RAM, 64 GB SSD, WINDOWS 7 PRO FOR EMBEDDED SYSTEMS, TEKTERM, BASIC IO PLUS CAN-BUS, INTERNAL ANTENNAS
Discontinued See Replacement
Add to Quote

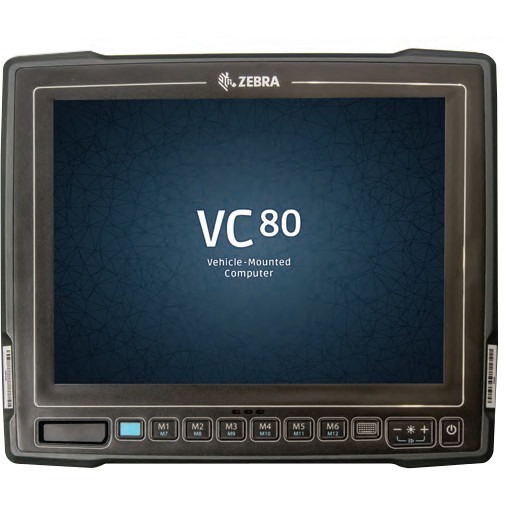

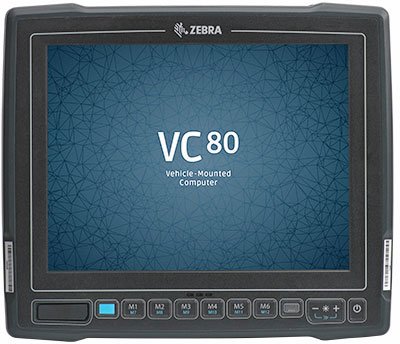

Zebra VC80 Data Terminal Model Overview
With the Zebra VC80, you can give operators in material handling vehicles mobile access to the desktop applications they need to complete tasks faster and more accurately. You get full Windows support in a super rugged design built for your toughest indoor and outdoor environments - from warehouses and distribution centers to airports, seaports, railway yards and more - plus the fastest wireless connections available to keep workers connected to your data and business applications. And with its compact design and flexible mounting options, it’s easy to install in forklifts, clamp trucks, yard mules, cranes and more. The VC80 - real desktop power for your material handling vehicles.
Zebra VC8010SSBB21CCAAXX Data Terminal Overview
PUT DESKTOP APPLICATIONS AT THE FINGERTIPS OF YOUR VEHICLE OPERATORS

With the VC80, you can give operators in material handling vehicles mobile access to the desktop applications they need to complete tasks faster and more accurately. You get full Windows support in a super rugged design built for your toughest indoor and outdoor environments - from warehouses and distribution centers to airports, seaports, railway yards and more - plus the fastest wireless connections available to keep workers connected to your data and business applications. And with its compact design and flexible mounting options, it's easy to install in forklifts, clamp trucks, yard mules, cranes and more. The VC80 - real desktop power for your material handling vehicles.

Technical Information
Connectivity Technology:
Wireless
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3845
Processor Core:
Quad-core (4 Core)
Processor Speed:
1.91 GHz
Memory
Standard Memory:
4 GB
Storage
Solid State Drive Capacity:
64 GB
Display & Graphics
Screen Size:
10.4"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Serial:
Yes
USB:
Yes
CANbus:
Yes
Software
Operating System:
Windows 7 Professional
Physical Characteristics
Width:
9.3"
Depth:
3.5"
Length:
10.4"
Weight (Approximate):
8.60 lb
Miscellaneous
Certifications & Standards:
Sealing:
  • IP66
Shock/Vibration:
  • IEC 60721-3-5M3
  • MIL-STD 810G
  • Method 514.6
  • MIL-STD 810G
  • Method 516.6
Solar Radiation:
  • MIL STD 810-G
  • Method 505.5
  • Procedure I
Electrical Safety:
  • UL/cUL/IEC/EN 60950-1 Indoor use
  • UL/cUL/IEC/EN 60950-22 Outdoor
EMI/RFI:
  • FCC Part 15, Class B
  • ICES 003 Class B
  • EN55022
  • EN 301 489-1
  • EN 301 489-17
WLAN/Bluetooth:
  • FCC Part 15.247
  • FCC Part 15.407
  • EN 300 328
  • EN 301 893
  • AS/NZS 4268
Flammability:
  • IEC UL94-V0
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211505
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Zebra VC8010SSBB21CCAAXX Data Terminal is also known as ZEB-VC8010SSBB21CCAA or VC8010SSBB21CCAAXX.
