Full specifications (PDF)
Connectivity Technology:
Wireless
Zebra VC8010SSAA11CAAAXX Data Terminal
Part Number:
VC8010SSAA11CAAAXX
Model:
VC80 Vehicle Mount Computer

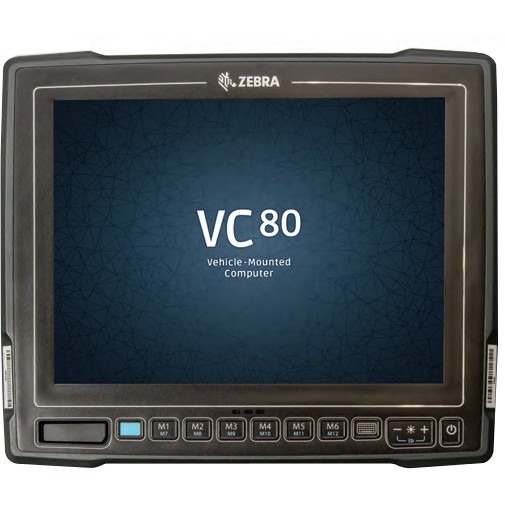

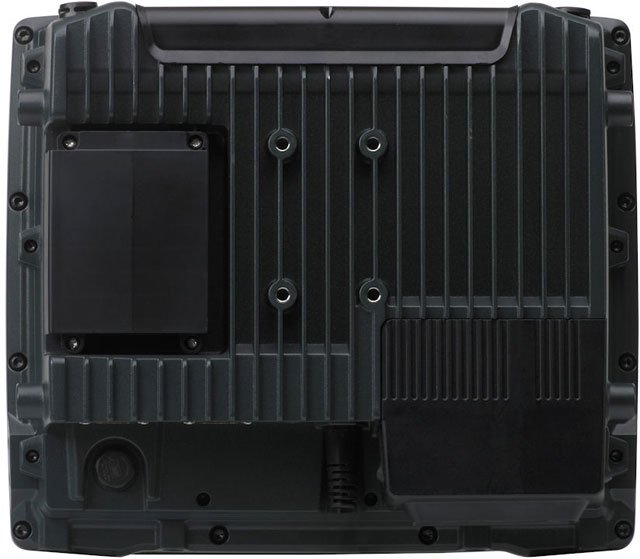

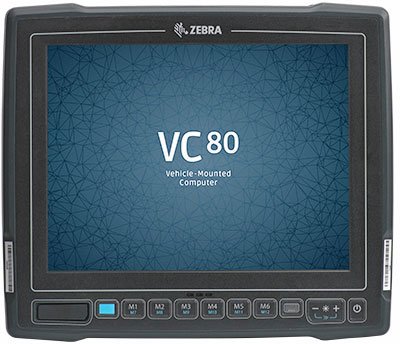

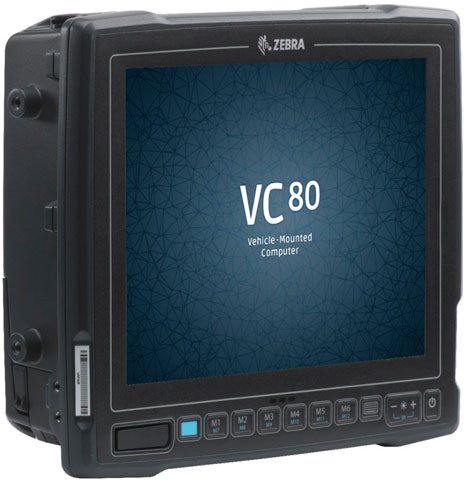

Zebra VC80 Data Terminal Model Overview
With the Zebra VC80, you can give operators in material handling vehicles mobile access to the desktop applications they need to complete tasks faster and more accurately. You get full Windows support in a super rugged design built for your toughest indoor and outdoor environments - from warehouses and distribution centers to airports, seaports, railway yards and more - plus the fastest wireless connections available to keep workers connected to your data and business applications. And with its compact design and flexible mounting options, it’s easy to install in forklifts, clamp trucks, yard mules, cranes and more. The VC80 - real desktop power for your material handling vehicles.
Zebra VC8010SSAA11CAAAXX Data Terminal Overview
PUT DESKTOP APPLICATIONS AT THE FINGERTIPS OF YOUR VEHICLE OPERATORS
With the VC80, you can give operators in material handling vehicles mobile access to the desktop applications they need to complete tasks faster and more accurately. You get full Windows support in a super rugged design built for your toughest indoor and outdoor environments - from warehouses and distribution centers to airports, seaports, railway yards and more - plus the fastest wireless connections available to keep workers connected to your data and business applications. And with its compact design and flexible mounting options, it's easy to install in forklifts, clamp trucks, yard mules, cranes and more. The VC80 - real desktop power for your material handling vehicles.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3825
Processor Core:
Dual-core (2 Core)
Processor Speed:
1.33 GHz
Memory
Standard Memory:
2 GB
Storage
Solid State Drive Capacity:
32 GB
Display & Graphics
Screen Size:
10.4"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Serial:
Yes
USB:
Yes
Software
Operating System:
Windows Embedded Standard 7
Physical Characteristics
Width:
9.3"
Depth:
3.5"
Length:
10.4"
Weight (Approximate):
8.60 lb
Miscellaneous
Certifications & Standards:
Sealing:
- IP66
- IEC 60721-3-5M3
- MIL-STD 810G
- Method 514.6
- MIL-STD 810G
- Method 516.6
- MIL STD 810-G
- Method 505.5
- Procedure I
- UL/cUL/IEC/EN 60950-1 Indoor use
- UL/cUL/IEC/EN 60950-22 Outdoor
- FCC Part 15, Class B
- ICES 003 Class B
- EN55022
- EN 301 489-1
- EN 301 489-17
- FCC Part 15.247
- FCC Part 15.407
- EN 300 328
- EN 301 893
- AS/NZS 4268
- IEC UL94-V0
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
