Zebra UWT-1500-B-10-WR Data Networking
Full specifications (PDF)
Zebra UWB Tag Data Networking Model Overview
Features and Benefits
- FCC Part 15.250 and ETSI EN 302 500-1 compliant
- Compliant with International UWB standard, IEEE 802.15.4f,and ISO 24730-61 International standard
- IP67 rated – fully dust and waterproof
- Exceptional performance – Performs in high multi-pathenvironments
- Excellent real-time location accuracy – Better than 30 cm(1 foot) line of sight
- Long tag battery life – Up to 7 years at 1 Hz blink rate
- Long RF Range – Up to 200 meters (650 feet)
- Programmable on/off and wide range of tag transmission rates
- UL 913, Class 1 Division 1, Groups A-D, T4
Frequently Asked Questions
What is the maximum range and accuracy of the Zebra UWT-1500-B-10-WR UWB tag?
The Zebra UWB Tag delivers exceptional real-time location accuracy with a range of up to 200 meters (650 feet) and better than 30cm (1 foot) accuracy in line-of-sight conditions. This performance is achieved through ultra-wideband pulse transmission technology that works effectively even in high multi-path environments, making it ideal for both indoor and outdoor asset tracking applications.
How long does the battery last on these UWB tags?
The Zebra UWT-1500-B-10-WR tags offer exceptional battery longevity, with up to 7 years of continuous operation when programmed at a 1 Hz blink rate. The tags are powered by a 3V coin cell battery and support a wide range of configurable blink rates from 0.01 Hz to 200 Hz, allowing you to optimize battery life based on your tracking requirements.
What standards does the Zebra UWB tag comply with?
The Zebra UWB Tag is the world's first UWB tag compliant with the new International UWB Standard IEEE 802.15.4.f and ISO-24730-61. This standards compliance means you can configure the tag to operate in either native Zebra format or ISO/IEEE format, protecting your infrastructure investment and ensuring compatibility with other standards-compliant UWB systems.
What are the physical specifications and environmental ratings of this UWB tag?

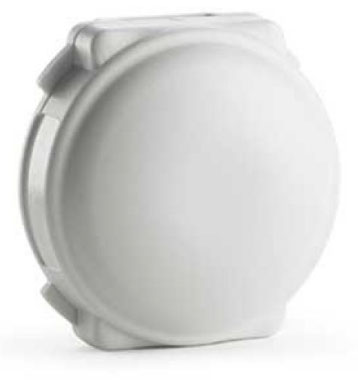

The UWT-1500-B-10-WR is a small circular tag measuring 32mm in diameter by 15mm in height with an IP67 rating, making it suitable for harsh industrial environments and both indoor and outdoor deployment. The tag features an omni-directional antenna and non-medical ABS/PS housing, designed for reliable asset and personnel tracking in demanding conditions.
Can I track thousands of tags simultaneously with this system?
Yes, the ultra-wideband pulse transmission technology used by Zebra UWB Tags enables simultaneous tracking of thousands of tags. The short-duration UWB pulses allow the system to inventory and provide reports on multiple tags in real-time, making this solution ideal for large-scale asset visibility and personnel tracking operations.
What is included in the UWT-1500-B-10-WR kit and how do I configure the tags?
This kit includes ten UWT-1500-A-00AB UWB tag units ready for deployment. Tags can be configured using the Zebra UWB Wand Module, which allows you to set blink rates, turn tags on or off, and manage configurations for up to 100 tags at once through manual input, barcode scanning, or low-frequency detection. Contact us today to learn more about configuration options and how to get started with your UWB tracking solution.
