Zebra UWT-1500-A-10-WR Data Networking

Part Number: UWT-1500-A-10-WR
Model: UWB Tag
Add to My Shopping List Add to Compare
$1,302.63
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Description:

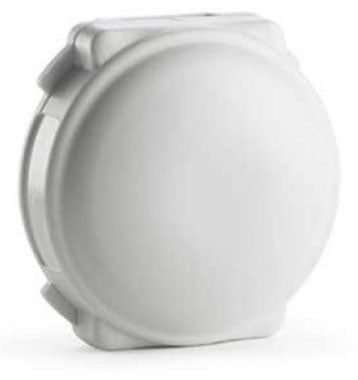

  Data Networking, Zebra UWB Tag, Quantity Ten (10) Of The UWT-1500-A-00AA UWB Tag With Omni-Directional Antenna, Small (32mm Diameter By 15mm) IP67, 6-Axis Accelerometer And Long Battery Life In A Unique Package That Can Be Attached To Assets And People
Explore all Zebra UWB Tag Data Networkings
Add to Quote
Zebra UWT-1500-A-10-WR Data Networking
Zebra UWT-1500-A-10-WR Data Networking
Zebra UWT-1500-A-10-WR Data Networking Zebra UWT-1500-A-10-WR Data Networking
Full specifications (PDF)

Zebra UWB Tag Data Networking Model Overview

Zebra UWB Tags are small, active tags used in asset and personnel visibility applications. The tags emit short Ultra-wideband (UWB) pulses that are detected by Zebra’s UWB Sensors. Each tag transmits a unique ID that can be associated with a specific asset. The UWB Sensors connect to Zebra’s UWB Hub, which determine the real-time location of the UWB Tags.The Zebra UWB Tag is the world’s first UWB tag compliant with the new International UWB Standard, IEEE 802.15.4.f, as well as ISO-24730-61. The Zebra UWB Tag may be configured to operate in its native Zebra format or in ISO/IEEE format. Like our UWB Tag, Zebra’s UWB Sensors are also ISO/IEEE compliant. With Zebra’s standards-compliant UWB solution, you secure your UWB infrastructure investment and extend its capabilities since the infrastructure is compatible not only with Zebra’s tags but also other standards-compliant tags.UWB Tag transmissions are extremely short in duration, providing excellent real-time location accuracy and permitting thousands of tags to be simultaneously located. The short-duration UWB pulses also result in exceptionally long battery life. For example, the UWB (programmed at 1 Hz blink rate) can be used to continuously track an asset for over seven years. Tags are powered with a 3V coin cell battery and can be turned on/off and set to a wide range of blink rates using the Zebra UWB Wand.

Features and Benefits

  • FCC Part 15.250 and ETSI EN 302 500-1 compliant
  • Compliant with International UWB standard, IEEE 802.15.4f,and ISO 24730-61 International standard
  • IP67 rated – fully dust and waterproof
  • Exceptional performance – Performs in high multi-pathenvironments
  • Excellent real-time location accuracy – Better than 30 cm(1 foot) line of sight
  • Long tag battery life – Up to 7 years at 1 Hz blink rate
  • Long RF Range – Up to 200 meters (650 feet)
  • Programmable on/off and wide range of tag transmission rates
  • UL 913, Class 1 Division 1, Groups A-D, T4
Full specifications (PDF)
Brand
Zebra
Model
UWB Tag

Frequently Asked Questions

The Zebra UWB Tag delivers up to 200 meters (650 feet) of range with better than 30 centimeters (1 foot) line-of-sight accuracy, making it ideal for real-time asset and personnel tracking in warehouse and logistics environments. This exceptional performance is maintained even in high multi-path environments where traditional RFID solutions struggle.

When programmed at a 1 Hz blink rate, the Zebra UWB Tag can operate continuously for up to 7 years on a single 3V coin cell battery. The short-duration UWB pulse technology enables this exceptionally long battery life while still providing real-time location updates.

Yes, the Zebra UWB Tag is the world's first UWB tag compliant with both the IEEE 802.15.4f international standard and ISO-24730-61. This standards-based approach protects your infrastructure investment and allows compatibility with other standards-compliant tags beyond just Zebra's ecosystem.

The UWT-1500-A-10-WR features a small circular form factor measuring 32mm in diameter by 15mm in height, with an IP67 environmental rating suitable for both indoor and outdoor use. It includes a 6-axis accelerometer for enhanced tracking capabilities and can be easily attached to assets or personnel.

Yes, the Zebra UWB Tag can be configured with blink rates ranging from 0.01 Hz to 200 Hz using the Zebra UWB Wand Module, allowing you to balance battery life with tracking frequency based on your application needs. The tag can be turned on or off and supports up to 100 tags configured simultaneously.

The Zebra UWB Hub (UWH-1100-A-00AA) can manage up to 10,000 tags per hub with a data throughput of up to 3,500 1 Hz tags per second, enabling large-scale deployments for warehouse and logistics operations. Contact us today to discuss system architecture for your specific tracking requirements.

The Zebra UWT-1500-A-10-WR Data Networking is also known as ZEB-UWT1500A10WR or UWT-1500-A-10-WR.
