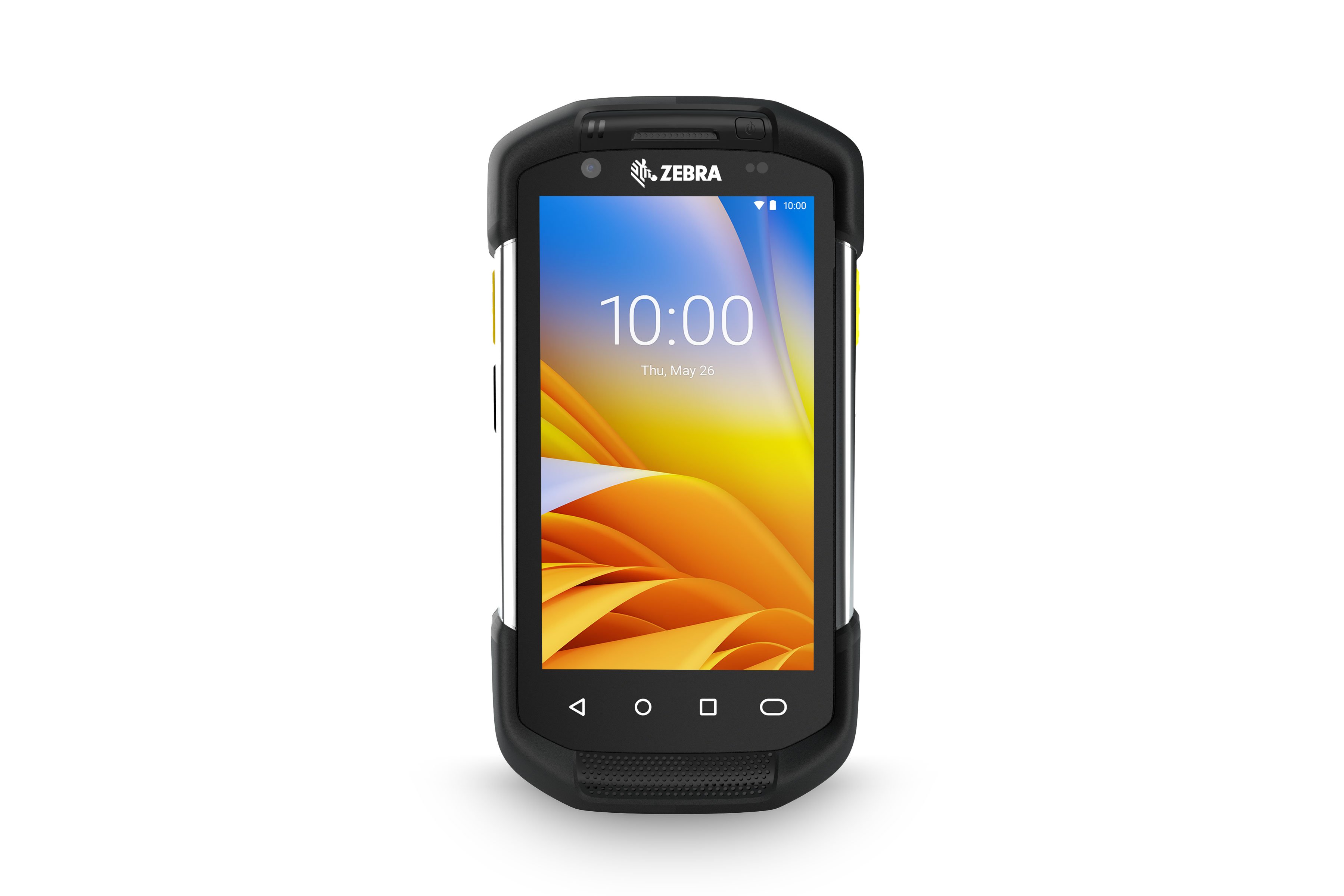

Zebra TC77HL-5ME24BG-A6 Mobile Computer

Zebra TC77 - Mobile Computer, Zebra TC77, Wireless, Android 11 GMS, IP65/IP68, On-Screen Touch, Phone-size, Wi-Fi/Bluetooth/WWAN, 4GB RAM/32GB FLASH pSLC, 2D Imager, SD660, Near Field Communication, 2x2 MU-MIMO, 2 Nano SIM (no SAM), Scan Engine 4750SR, 5.0MP Front Camera, 13MP Rear Camera, 1 micro SD, Ecompass, Hand strap, AT&T, Verizon, Sprint, TIMO, Telstra, Vodafone, Rest of World (EMEA, LATAM, APAC)
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • The secure wireless connectivity allows your employees to stay productive while away from their desks
  • 4.7" HD display screen allows you to execute two applications at the same time
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Android 11 OS with all the creative and productive tools you need
  • 4 GB RAM / 32 GB flash memory helps run applications rapidly and stores the mightiest databases
  • microSD card slot gives an extra storage option
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • Phone-size form factor for your convenience and simplicity of usage
Read More
$3,342.25
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra TC77 Mobile Computer Model Overview
Zebra's TC72/TC77 Series Touch Computer is the ultimate in ultra-rugged enterprise-class all-touch computing. The TC72/TC77 is designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls. The TC72/TC77 is a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and it features a new platform offering more capabilities than any other device in this class. Powered by Android for instant familiarity, the TC72/TC77 virtually eliminates training time and adoption curves.
Zebra TC77HL-5ME24BG-A6 Mobile Computer Overview

The Ultimate in Ultra-Rugged Enterprise-Class All Touch Computing

At the edge of your business are your front line workers that spend their days face-to-face serving the important asset in your company - your customers. Now, there's a device designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability - the TC72 and TC77 Android Touch Computers. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls - a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 - for a real competitive edge at the edge of your business, delivered.

Super simple data capture: barcodes, labels and documents

Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc - regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance - no need to ever align the device with the barcode. Need to capture multiple barcodes on a label or data on a form? You can do it all with the press of a single button with Zebra's SimulScan, a no-cost pre-installed Mobility DNA application.

Full shift power your workers can count on

The PowerPrecision+ high capacity battery delivers up to an impressive 15 hours of power1 - plenty for the longest shift. With Warm Swap mode, swapping batteries is fast and easy - there's no need to turn off the device or close active apps. And with fast charging, batteries are fully charged in record time.

Complete cellular network flexibility with single device simplicity

No matter where your workers are, they can stay connected. Simultaneous support for two carriers is ideal for workers that travel to areas better served by different carriers. And aggregated carrier support delivers faster upload and download speeds. The TC77 is certified on leading public safety networks, including AT&T FirstNet and Verizon, assuring responders have the connectivity they need even when networks are overloaded in crisis situations.

The Ultimate User Experience

Android for instant familiarity

Your workers already know how to use an Android device, virtually eliminating training time and adoption curves. And you can deliver the highly graphic interactive apps today's workers expect.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Scan Engine Model:
SE4750
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Barcode Symbology Supported:

1D:

  • Code 128
  • EAN-8
  • EAN-13
  • GS1 DataBar Expanded
  • GS1 128
  • GS1 DataBar Coupon
  • UPCA
  • Interleaved 2 of 5
  • UPC Coupon Code

2D:

  • PDF-417
  • QR Code
  • Digimarc
  • Dotcode
Google Mobile Services (GMS):
Yes
Sensor Type:
  • Light Sensor
  • Motion Sensor
  • Pressure Sensor
Multi-SIM Supported:
Yes
Number of SIM Card Supported:
2
SIM Size Supported:
Nano
Features:
Gorilla Glass
Drop Specification:
  • 6ft To Concrete
  • 8ft To Concrete
Air Electrostatic Discharge (+/-):
15kV DC
Direct Electrostatic Discharge (+/-):
8kV DC
Indirect Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Type:
Snapdragon
Processor Model:
660
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.20 GHz
Memory
Standard Memory:
4 GB
Flash Memory:
32 GB
Memory Card Slot:
Yes
Memory Card Supported:
  • microSD
  • microSDXC
  • SDHC
Maximum Memory Card Size Supported:
256 GB
Display & Graphics
Screen Size:
4.7"
Screen Mode:
HD
Screen Resolution:
1280 x 720
Display Screen Type:
LCD
Backlight Technology:
LED
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Multi-touch Screen:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0 + LE
Cellular Network Supported:
GSM
Cellular Data Connectivity Technology:
  • GPRS
  • LTE
  • UMTS
  • HSPA
  • HSPA+
  • EDGE
GPS:
Yes
Interfaces/Ports
USB:
Yes
Camera
Front Camera:
Yes
Front Camera Resolution:
5 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
13 Megapixel
Software
Operating System:
Android 11
Battery Information
Battery Capacity:
4620 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Voltage:
3.70 V
Removable Battery:
Yes
Physical Characteristics
Form Factor:
Phone-size
Rugged:
Yes
Height:
6.3"
Width:
3.3"
Depth:
1.1"
Weight (Approximate):
13.26 oz
Miscellaneous
Application/Usage:
  • Warehouse
  • Manufacturing
  • Transportation
  • Government
  • Retail
  • Logistics
  • Public Safety
Ingress Protection (IP) Rating:
IP68
Country of Origin:
China
Item Numbers
GTIN: 4062621249325
EAN: 4062621249325
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Zebra TC77HL-5ME24BG-A6 Mobile Computer is also known as ZEB-TC77HL5ME24BGA6 or TC77HL5ME24BGA6.
