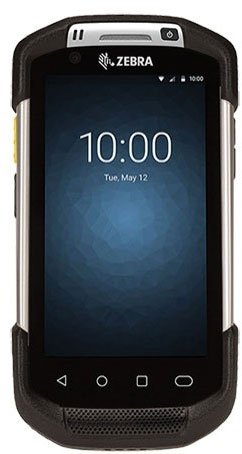

Zebra TC75EK-2MB24AB-US Mobile Computer

The Zebra TC75EK-2MB24AB-US Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra TC75x - Mobile Computer, Zebra TC75x, Wireless, Android 7.1 Nougat GMS, IP65/IP67, On-Screen Touch, Phone-size, Wi-Fi/Bluetooth, 4GB RAM/ 32GB FLASH pSLC, 2D Imager, Multi-Operator (AT&T/Verizon/T-Mobile), HSPA+/LTE/CDMA, Near Field Communication, 2x2 MIMO, 2 Nano SIM/ 1 SAM, SE4750 SR MPI, 1.3MP Front Camera, 13MP Rear Camera, 1 micro SD, Ecompass, Hand strap, United States Only
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • 4.7" HD display screen allows you to execute two applications at the same time
  • NFC is perfect for automated identity approval at facility section points
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • It's android 7.0 nougat operating system offers powerful platform to efficiently run routine applications
  • 4 GB RAM / 32 GB flash memory helps run applications rapidly and stores the mightiest databases
  • microSD memory card slot can be accessed easily by the user to expand storage
  • Wireless connectivity technology helps you always stay connected to your handheld terminal for maximum productivity
  • Experience the versatility of Bluetooth connectivity with your Zebra Handheld Terminal
  • Phone-size form factor is comfortable to utilize in intensive or non-intensive scan environments
Read More
Discontinued Need Assistance?
Add to Quote
Zebra TC75X Mobile Computer Model Overview
Zebra's TC75x Enterprise Touch Computer delivers it all. The TC75x has a rugged design for reliable everyday operation in the most demanding outdoor environments. With the TC75x, you have a choice of Android operating systems, with or without Google Mobile Services (GMS). Zebra's Mobility Extensions (Mx), a series of features that make Android a more robust enterprise-class operating system. The TC75x provides the ability to capture more types of data, faster than ever before — from 1D and 2D barcodes to photos, videos, NFC tags and all the data on a document — with the press of one button. Instant push-to-talk communications with co-workers out in the field — and back in the office. Support for up three SIM cards to enable connection to as many as three different 4G/LTE or GSM networks — ideal for workers who cover multiple counties and/or countries. Empower your field teams with a true mobile office with the TC75 Series — the right device makes all the difference.
Zebra TC75EK-2MB24AB-US Mobile Computer Overview

Your front line to a smarter enterprise
Your field workforce needs a mobile computer to access the people and information required to maximize efficiency and better serve your customers. You want to give them an enterprise-class handheld built for life out in the field - yet your workers expect a device that is every bit as refined and easy-to-use as their own consumer smartphone. Introducing the TC75, the Android mobile computer that delivers it all. A rugged design that delivers reliable everyday operation. Anywhere anytime access to virtually any information in your back-end systems. The ability to capture more types of data faster than ever before. Instant push-to-talk communications with co-workers out in the field as well as supervisors, dispatch and more back in the office. Fast data access with support for all 4G GSM cellular networks. And a full complement of accessories meets the unique needs of virtually any mobile worker. The TC75 - the easy way to empower your field teams with a true mobile office.

Mx - Making Android a More Robust Enterprise OS
Every TC75 Series ships with Mobility Extensions (Mx), a series of features that make Android a more robust enterprise-class operating system. Mx minimizes IT support time and maximizes worker productivity and device uptime by providing better control of your mobile devices, application access and Wi-Fi performance and security. Standard Configuration TC75 and TC75x devices come with Google Mobile Services (GMS) which provides integrated Google applications such as Gmail and Google Maps. Professional Configuration TC75 and TC75x devices ship without GMS, removing GMS applications and services. Both configurations are based on Android Open Source (AOSP) and ship with respective Android Enterprise functionality.

World-class Data Capture
An integrated enterprise-class imager offers Zebra's proprietary PRZM Intelligent Imaging technology, a megapixel sensor and advanced optics, enabling the lightning-fast capture of 1D and 2D barcodes in virtually any condition. The rear-facing color camera enables the easy capture of high- resolution photos, signatures, videos and more, so workers can capture more types of business intelligence to streamline more business processes. The front camera allows workers to place a video call to get the on-the-spot assistance they need. And Near Field Communications automates identity verification at facility entry points.

Maximum Data Entry Flexibility with an Industry Leading Dual Mode Touch Panel
Let your users choose their preferred data input pair: finger and gloved finger or finger and stylus - ideal for crisp signature capture. The intelligent 4.7 in. display automatically adjusts as needed, unlike competitive devices that require setting adjustments every time the user switches data input method.

Automatically Capture Data and Process Entire Documents
With SimulScan Document Capture, your workers can simultaneously capture barcodes, text fields, phone numbers, images, signatures and even check boxes in the time it takes to press a button, improving invoicing speed, order speed and more.

Superior Audio Quality and Functionality for a New Level of Voice Flexibility
Up to four times the loudness of popular smartphones and noise cancelling technology provides crystal clear audio on both ends of every call. Support for Workforce Connect Push-to-Talk (PTT) Express and Pro provides an instant connection to co-workers in the field, plus supervisors and other support staff back in the office.

Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Memory
Standard Memory:
4 GB
Flash Memory:
32 GB
Memory Card Supported:
  • microSD
  • microSDHC
  • microSDXC
Display & Graphics
Screen Size:
4.7"
Screen Mode:
HD
Screen Resolution:
1280 x 720
Touchscreen Information
Touchscreen:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac/d/h/i/r
Bluetooth:
Yes
Near Field Communication (NFC):
Yes
Cellular Network Supported:
GSM
Cellular Data Connectivity Technology:
  • 4G
  • LTE
GPS:
Yes
Camera
Rear Camera:
Yes
Software
Operating System:
Android 7.0 Nougat
Physical Characteristics
Form Factor:
Phone-size
Height:
6.3"
Width:
3.3"
Depth:
1.1"
Weight (Approximate):
13.30 oz
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Zebra TC75EK-2MB24AB-US Mobile Computer is also known as ZEB-TC75EK2MB24ABUS or TC75EK2MB24ABUS.
