The TC5X Series builds on the best-selling TC52 and TC57 rugged handheld mobile computers, with three models that deliver the ultimate in rugged, all-touch mobile computing. The Wi-Fi only TC52x and the Wi-Fi/cellular TC57x add support for the latest mobile innovations, paving the way for new apps that deliver more value and superior future-proofing — such as payment solutions. Support for more Mobility DNA tools makes everything easier — from the user interface to device management, integration and app development. The Wi-Fi only TC52ax adds Wi-Fi 6, a new scanner option with intelligent focusing, double the memory to boost application performance and the new Workstation Connect solution that allows the TC52ax to function simultaneously as a workstation and a mobile computer. And with LifeGuard 3, keeping all TC5X devices and data secure has never been easier.1 The TC5X Series — the ultimate rugged mobile computers, redefined.
A user experience in a class of its own
The 5 in. display provides more room to view more information. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And the best-in-class outdoor readability screen is easy to read, even in bright sunlight.
Powerful advanced scanning for the fastest, easiest data capture
Available in all models, the SE4720 delivers point-and-shoot simplicity with a large ‘sweet spot’ of up to 24 in./60 cm away, and easy capture of large barcodes at close range. Available in the TC52ax, the SE5500 Advanced Range Scan Engine with IntelliFocus™ technology intelligently adjusts to quickly capture barcodes in hand or over 40 ft./12 m2 away — ideal for dark stores and front-of-store micro-fulfillment centers. The best-in-class green laser aimer is designed for the extended scanning range. It’s up to seven times more visible than a red laser. And instead of the typical aiming dot, the aiming pattern spreads out over several feet. The result? Easy and accurate point-and-shoot aiming throughout the entire scan range — even in bright sunlight. And no matter which engine you choose, with Zebra’s PRZM Intelligent Imaging Technology, you get the performance that has made Zebra the worldwide leader in barcode scanning — dependably fast first-time every-time barcode capture.
Maximize productivity with enterprise accessories
Backwards compatibility with all TC52/TC57 accessories allows you to cost-effectively upgrade to the latest technology. Support is built in for the new generation of payment solutions. And Zebra’s HD4000 headmounted display enables new cutting edge hands-free directed-action workflows.
Easily find misplaced devices
An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices. And with support for the latest version of Device Tracker, the TC52ax can be located — even if the device is turned off or the battery is dead.
Full shift power your workers can count on
The PowerPrecision+ high capacity battery delivers an impressive 14 hours of power3 — plenty for the longest shift. With a two-minute Warm Swap mode, swapping batteries is fast and easy — there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.
Maximum application performance
Instantly navigate through application screens, thanks to the faster 2.45 GHz processor and new Universal Flash Storage (UFS).
Advanced higher-resolution touchscreen technology with Full HD
Full HD utilizes the entire 5-inch display, providing more room to view more information. The easy, even in bright sunlight.
Get double functionality — turn your TC52ax into a mobilepowered workstation
When workers need a larger display to best view information and interact with applications, the TC52ax with Workstation Connect delivers. This powerful complimentary software solution enables the display of TC52ax apps on a large monitor, complete with a mouse, keyboard and any other peripheral required to make app interaction easy. Workers get a true workstation experience — the application’s user interface takes advantage of the additional screen real estate and users can resize windows — and open multiple apps in multiple windows. And workers can switch between mobile computer and mobile-powered workstation on the fly to meet the app needs of the moment. The result? More ways to use your TC52ax, boosting device value and return on investment, while simplifying and reducing the cost of your technology infrastructure.
Rugged and ready for the toughest business day
The TC5X Series mobile computers may look like smartphones, but they are engineered for the enterprise. Drop it in water or on concrete, use it in the rain, snow or dusty areas. Sealing now includes the battery, increasing reliability. The unibody design provides extra impact protection for the sensitive electronics. And Corning® Gorilla® Glass provides maximum scratch-resistance and shatter-proofing for the touch panel and scanner window.
More Wi-Fi range and speed — with less power
2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting Wi-Fi network capacity, speed and range. Processing is shifted from the mobile device to the access point, extending battery cycle time. And if you need the latest in Wi-Fi technology, the future-ready TC52ax supports Wi-Fi 6, providing your workers with unmatched wireless performance.
The highest quality voice in its class
Three microphones, high-volume speakers and noise-cancellation technology work together to ensure that callers on both ends of every call can hear every word — even in the noisiest areas. And inside your facility, Zebra’s Fusion software ensures voice clarity everywhere — on the warehouse or sales floor, in a stairwell or in the parking lot.
Complete cellular network flexibility with single device simplicity
The TC57x provides workers anywhere in the world with dependable cellular service. And certification on leading public safety networks provides first responders with the dependable service they require.
Ultra high-resolution photos and videos
The 13 MP color rear camera captures detailed photos and videos for proof-of-condition/delivery/service, onsite support and more. And with more advanced software, color is accurate, images are sharper and crisper, a dynamic lighting range enables superior image capture in low light — and new on screen icons make the user interface more intuitive.
5 MP front-facing camera supports more advanced apps
Video calling improves service and productivity. Customers enjoy a more personal touch, while remote experts can assist with repair to help onsite technicians resolve issues faster and increase first-time-fix rates.
Bluetooth 5.x — 2x speed, 4x the range, all with less power
Improved data speeds up to 2 Mbps increase application flexibility and performance for Bluetooth peripherals, such as printers and headsets, while Bluetooth Low Energy (BLE) reduces power requirements to extend battery cycle times.
So many tools, so much value
LifeGuardTM for AndroidTM provides security patches that keep your device secure, every day your devices are in service — and devices can be updated automatically. Mobility Extensions (Mx) provides over a hundred features you can activate to improve the security, data capture support, wireless connectivity and device manageability of the standard Android operating system. Stage a handful or thousands of devices quickly and easily with StageNow — including deactivation of Google Mobile Services (GMS). Control the apps and device features your workers see with Enterprise Home Screen. Capture and send data right to your application with DataWedge — no coding required. WorryFree Wi-Fi provides dependably superior Wi-Fi. PowerPrecision Console and the PowerPrecision+ battery enable unsurpassed battery management. Add push to talk over Wi-Fi or cellular with PTT Pro. Turn TC5X Series devices into mobile PBX handsets with PTT Voice. And more.
Markets and Applications:
Retail Associates • Price/inventory checks • Item locator • Line busting/POS • Assisted selling Retail Managers • Workforce mgmt • Planogram mgmt • Promotion compliance • Merchandising Direct Store Delivery Drivers • Order automation • Delivery tracking • Inventory mgmt • Customer support Field Service Technicians • Asset mgmt • Parts inventory • Invoicing • Scheduling Parcel/Light Courier Drivers • Proof of delivery • Asset mgmt • Location services Government/ Public Safety • eCitation • Ticketing • Situational awareness • Communication and collaboration
Wireless LAN Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax4; 2x2 MU-MIMO; Wi-Fi™ certified; Dual Band Simultaneous; IPv4, IPv6 Data Rates 5GHz: 802.11a/n/ac/ax4 — 20MHz, 40MHz, 80MHz - up to 1201 Mbps; 2.4GHz: 802.11b/g/n/ax4 — 20MHz up to 286.8 Mbps Operating Channels Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13 Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,136, 140,144,149,153,157,161,165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2); EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP- 256) — EAP-TLS; Enhanced Open (OWE) Certifications Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (TC52ax only); Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3- Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM- Admission Control; Voice-Enterprise; Wi-Fi Direct Fast Roam PMKID caching; Cisco CCKM; 802.11r (OTA); OKC
Rugged and ready for the toughest business day
The TC5X Series mobile computers may look like smartphones, a dynamic lighting range enables superior image capture in low light — and new on screen icons make the user interface more intuitive.
5 MP front-facing camera supports more advanced apps

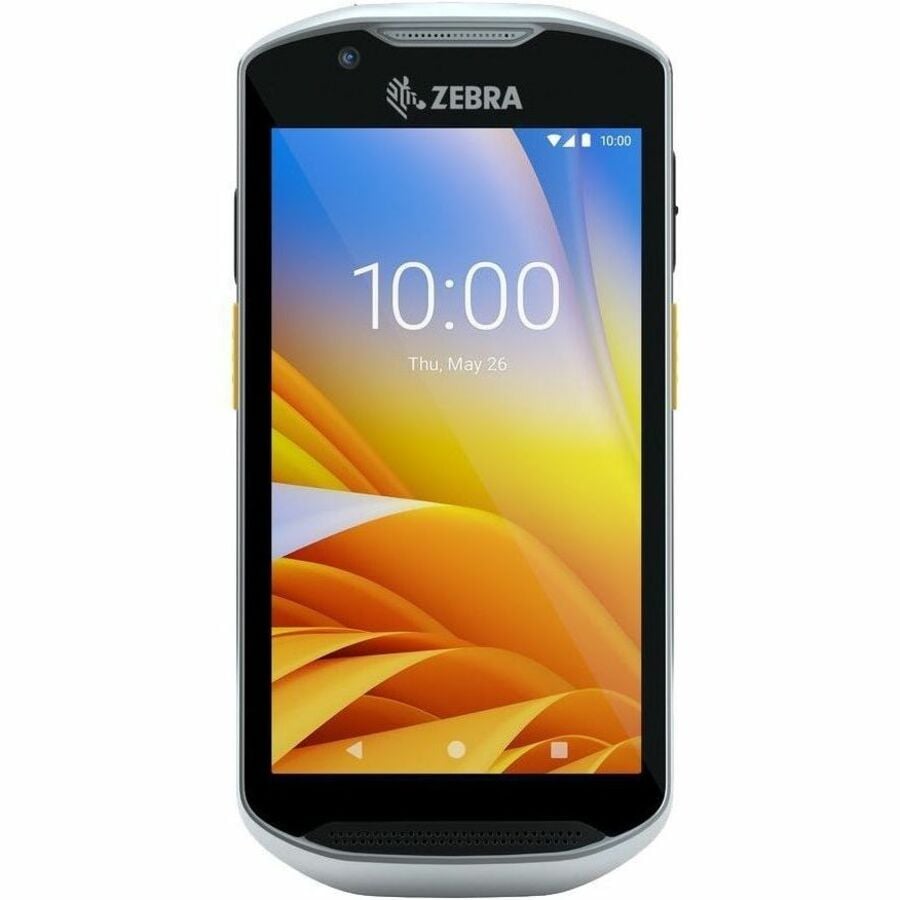

Zebra TC57HO-1XFMU6P-NA Mobile Computer Overview
THE ULTIMATE RUGGED TOUCH COMPUTER - WITH A MORE ADVANCED PLATFORM
When you choose the Zebra TC52x/TC57x, you get our best-selling TC52/TC57 rugged handheld mobile computer - and more. More advanced Zebra-only features that put the user experience in a class of its own to boost ease-of-use and productivity to new heights. More support for the latest mobile innovations, paving the way for new applications such as payment solutions that deliver more value - and superior future proofing. More Mobility DNA tools that make device management, device integration, application development and the user interface easier than ever. All in the first device in its class to offer the power of Android 10 - with up to 6 years of security updates to protect your device every day it is in service.
A USER EXPERIENCE IN A CLASS OF ITS OWN
All the power of Android 10
The best version yet, Android 10 is packed with new features that let workers do business faster, easier and more securely. Instant familiarity with Android virtually eliminates training time and adoption curves. And you can give workers the time-saving intuitive apps they expect.
Maximum application performance
Instantly navigate through application screens, thanks to the faster 2.45 GHz processor and new Universal Flash Storage (UFS).
Advanced higher-resolution touchscreen technology with Full HD
Full HD utilizes the entire 5 inch display, providing more room to view more information. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And the best-in-class outdoor readability screen is easy to read, even in bright sunlight.
An advanced scan engine for the fastest, easiest data capture
Easily capture 1D and 2D barcodes, labels and documents with the new SE4720 scanner. You get lightning fast barcode capture, maximum motion tolerance - workers can capture barcodes as fast as they can press the scan button; the ability to capture even poor quality, damaged and dirty barcodes. A larger 'sweet spot' makes scanning even easier with point-and-shoot simplicity - and enables the close-up capture of large barcodes. And a wide working range beyond 24 in./60 cm supports more applications.
Full shift power your workers can count on
The PowerPrecision+ high capacity battery delivers an impressive 14 hours of power - plenty for the longest shift. With a two-minute Warm Swap mode, swapping batteries is fast and easy - there's no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.
Easily find misplaced devices
An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices.
Shave steps and time out of tasks with rich locationing support
Enable locationing applications that improve the shopper experience and workforce efficiency - and increase sales - with support for Bluetooth 5.0 BLE and WiFi, as well as Zebra's SmartLens and MotionWorks solutions.
Full specifications (PDF)
