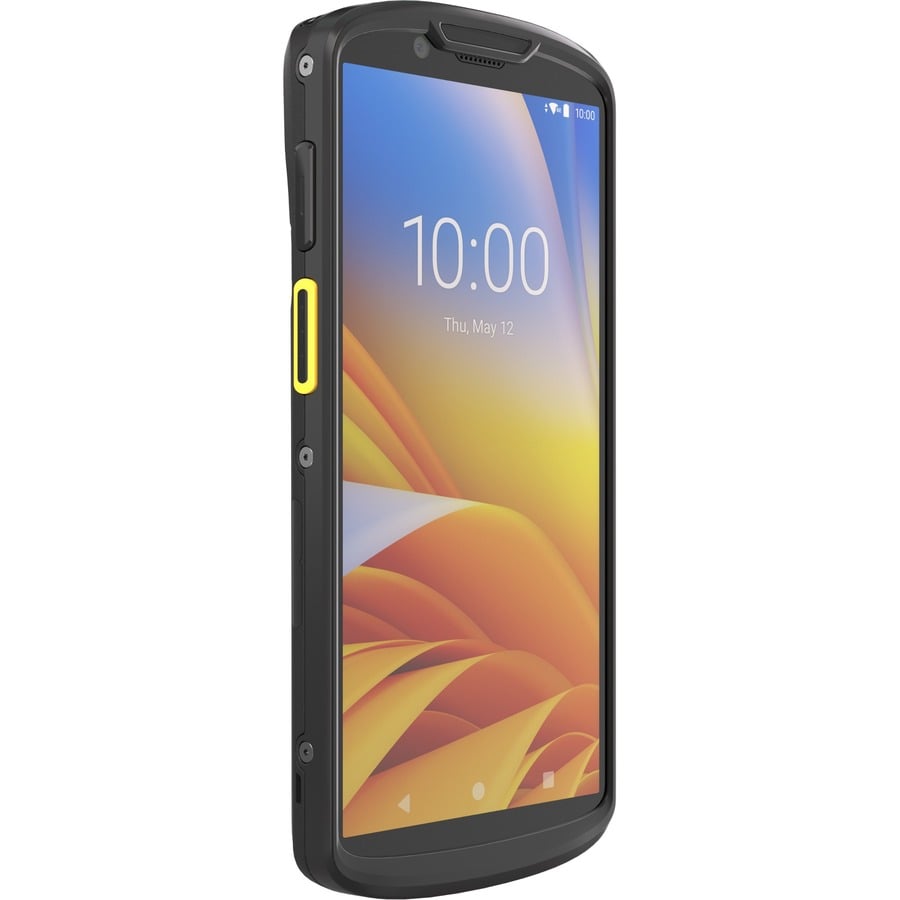

Zebra TC53 Mobile Computer

The Zebra TC53 Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra - TC53 Kit With Warranty. Kit Includes (Part# TC5301-0T1K4B1000-NA) And (Part# Z1B5-EMH250-5000)
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • 6" LCD screen is ideal for scan intensive applications
  • NFC is perfect for automated identity approval at facility section points
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • It's android 11 operating system offers powerful platform to efficiently run routine applications
  • 8 GB RAM / 128 GB flash memory helps run applications rapidly and stores the mightiest databases
  • Expand your data storage option with the microSD card slot
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections
Read More
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Scan Engine Model:
SE55
Image Sensor Type:
Imager
Scanner Range:
Advanced Range
Scanning Distance:
39.37 ft
Google Mobile Services (GMS):
Yes
Sensor Type:
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Pressure Sensor
  • Proximity
  • Gyroscope
Brightness:
600 Nit
Features:
  • Push-to-talk
  • Gorilla Glass
  • Drop Resistant
Drop Specification:
Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C / -4°F to 122°F) with protective boot per MIL STD 810H; Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C / 14°F to 122°F) per MIL STD 810 H
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Model:
6490
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.70 GHz
Memory
Standard Memory:
8 GB
Flash Memory:
128 GB
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
6"
Screen Resolution:
2160 x 1080
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.2
Near Field Communication (NFC):
Yes
Interfaces/Ports
USB:
Yes
USB Type-C:
Yes
Camera
Front Camera:
Yes
Front Camera Resolution:
8 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
16 Megapixel
Software
Operating System:
Android 11
Upgradable Operating System:
Android 16
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
4400 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Rugged:
Yes
Height:
6.5"
Width:
3"
Depth:
0.7"
Weight (Approximate):
10.34 oz
Miscellaneous
Application/Usage:
  • Retail
  • Field Sales/Service
  • Transportation
  • Logistics
  • Warehouse
Ingress Protection (IP) Rating:
  • IP65
  • IP68
TAA Compliant:
Yes
Item Numbers
UNSPSC: 43211715
