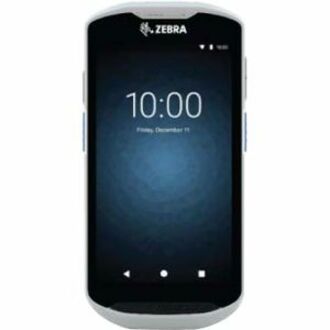

Zebra TC520L-1HCMH7P-NA Mobile Computer

Zebra TC52ax-HC - Mobile Computers, Zebra TC52ax-HC, TC52ax Wi-Fi 6, NA Healthcare, SE4720 Imager, Rear Red Mechanical Button, 7 Pin Bottom Connector, 4/64 GB RAM/UFS Flash, Std 4150 mAh Battery, 5FHD Display, 2.45 Octa-Core Processor, GMS
  • Touchscreen adds an additional hour of efficiency per worker to the workday
  • 5" LED screen is ideal for scan intensive applications
  • NFC is perfect for automated identity approval at facility section points
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • It's android 11 operating system offers powerful platform to efficiently run routine applications
  • 4 GB RAM / 64 GB flash memory helps run applications rapidly and stores the mightiest databases
  • SDXC memory card support gives you extended, portable storage of your precious data
  • Wireless connectivity provides computing versatility throughout the workplace
  • Experience the versatility of Bluetooth connectivity with your Zebra Handheld Terminal
  • Phone-size form factor - Ideal for offsite pros as it effortlessly fits in hip holsters and vehicle-mounted cradles
Read More
$2,233.97
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Quantity Unit Price Discount
2 $2,122.27 5% OFF
5 $2,055.25 8% OFF
Add to Quote
Zebra TC52ax-HC Mobile Computer Model Overview
The Zebra TC52ax Healthcare Mobile Computer includes all of the features found in the TC52x-HC, adds Wi-Fi 6, double the memory, and new healthcare blue hues. Zebra's TC52ax-HC mobile computer is designed with hospital-grade materials to support over 30 chemical disinfectants and UV-C appliances, making it the best purpose-built corporate solution for healthcare. The Zebra TC52ax-HC has a 5-inch Full HD display that provides maximum screen space, quality, and readability in any light.
Zebra TC520L-1HCMH7P-NA Mobile Computer Overview

THE ULTIMATE HEALTHCARE FEATURE SET FOR THE ULTIMATE IN QUALITY OF CARE

Building on the highly successful TC52-HC, this series offers two models that help caregivers improve the quality of care and the patient experience - the TC52x-HC and the TC52ax-HC. Give workers a superior mobile voice and data experience with best-in-class processing power. See more and scroll less with the large screen. Get never-ending power with a hot-swappable battery. The clog-proof design enables easier disinfecting. Summon the right help with one-press of the red alert button. Capture barcodes in any condition with healthcare safe illumination LEDs and aimer colors. Take high quality photos to easily document patient condition and enable better remote collaboration with physicians. Keep Android updated effortlessly with over-the-air automatic updates. Locate devices - even if the battery is dead or they are powered off. Create a fully functional mobile-powered workstation in a split second. And with Wi-Fi 6 and double the memory, the TC52ax-HC offers faster Wi-Fi, support for more users and future proofing.

First-time every time flawless 1D/2D barcode capture

Capture barcodes in virtually any condition with the integrated scanner's global shutter and PRZM Intelligent Imaging - even on curved or uneven surfaces like medicine vials and bags. And the white illumination LEDs and green aimer are ideal in healthcare, making it easy to scan barcodes on color-coded specimen trays and biopsy cassettes.

Ultra high-resolution photos and videos

The 13 MP color rear camera with Phase Detection Autofocus (PDAF) captures detailed photos and videos to document wound condition and more. Software advancements deliver more accurate color and sharper, crisper images, even in low light - while new on screen icons make the user interface more intuitive.

Improve collaboration with high quality video conferencing

The front-facing 5 MP camera enables Telehealth consultations, better patient monitoring and better collaboration with colleagues.

Out-of-the-box capture of Unique Device Identifier (UDI) barcodes

Caregivers can instantly check to see if medical equipment has been recalled before use, protecting patient safety. Ensure that all charges for all items are captured, protecting the bottom line. And inventory visibility is complete and more accurate, eliminating risky out of stocks.

Automatically capture data on labels and forms

Need to capture multiple barcodes on a single label or data on a medical form, such as checkboxes, text fields and signatures?

THE ULTIMATE DATA CAPTURE EXPERIENCE

Exceptional touchscreen technology

The 5-inch Full HD display delivers maximum screen space, resolution and readability. Text and graphics are sharper. The 600 nit display is easy to read in any light. And the easy and familiar multi-touch operation works when wet, with a gloved finger or a stylus.

THE ULTIMATE PURPOSE-BUILT PLATFORM FOR HEALTHCARE

Turn TC52X-HC Series devices into mobile-driven workstations

Do some tasks need a larger display to best view information and interact with applications? With Zebra's Workstation Connect1, just insert the TC52X-HC Series healthcare mobile computers into a compatible cradle to get a true desktop experience, complete with a large monitor, a mouse, keyboard, scanner and more. The user interface takes advantage of the additional screen real estate - and users can resize windows and open multiple apps in multiple windows. To switch back to mobile computer mode, just lift the device from the cradle.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Scan Engine Model:
SE4720
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Google Mobile Services (GMS):
Yes
Sensor Type:
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Proximity
  • Gyroscope
  • eCompass
Brightness:
600 Nit
Features:
  • Water Resistant
  • Gorilla Glass
  • Push-to-talk
Drop Specification:

Multiple 4 ft./1.2 m drops to tile over concrete over 14° F to 122° F/-10° C to 50° C

Illumination Type:
LED
Illumination Color:
White
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Type:
Snapdragon
Processor Model:
660
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.45 GHz
Memory
Standard Memory:
4 GB
Flash Memory:
64 GB
Memory Card Supported:
  • SDXC
  • microSD
Display & Graphics
Screen Size:
5"
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Display Screen Type:
LED
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Keyboard/Keypad
Buttons & Keys:

Six programmable buttons for maximum flexibility: Alert button, dual dedicated scan buttons, dedicated push-to-talk button and volume up/down buttons

Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.1
Near Field Communication (NFC):
Yes
Interfaces/Ports
USB:
Yes
Camera
Front Camera:
Yes
Front Camera Resolution:
5 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
13 Megapixel
Software
Operating System:
Android 11
Upgradable Operating System:
Android 14
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
4150 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Removable Battery:
Yes
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Phone-size
Rugged:
Yes
Height:
6.1"
Width:
2.9"
Depth:
0.7"
Weight (With Battery):
9.14 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:

Subject to the terms of Zebra's hardware warranty statement, the TC52x-HC and TC52ax-HC are warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit:

www.zebra.com/warranty

Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Zebra TC520L-1HCMH7P-NA Mobile Computer is also known as ZEB-TC520L1HCMH7PNA or TC520L1HCMH7PNA.
