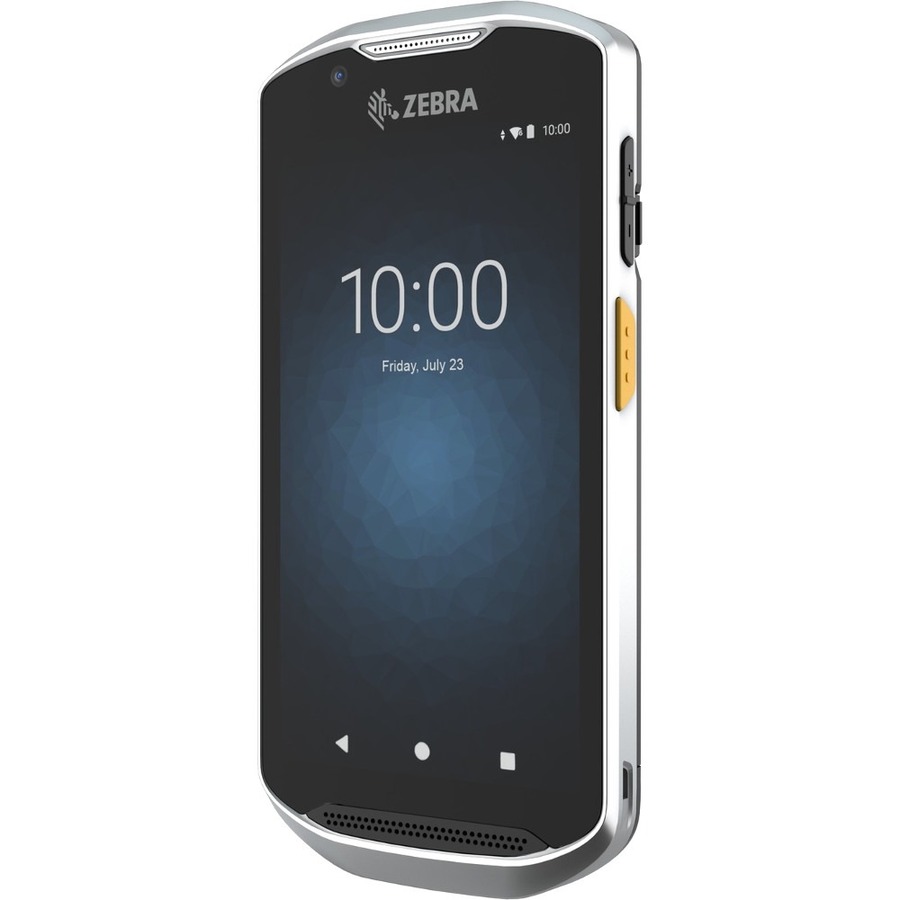

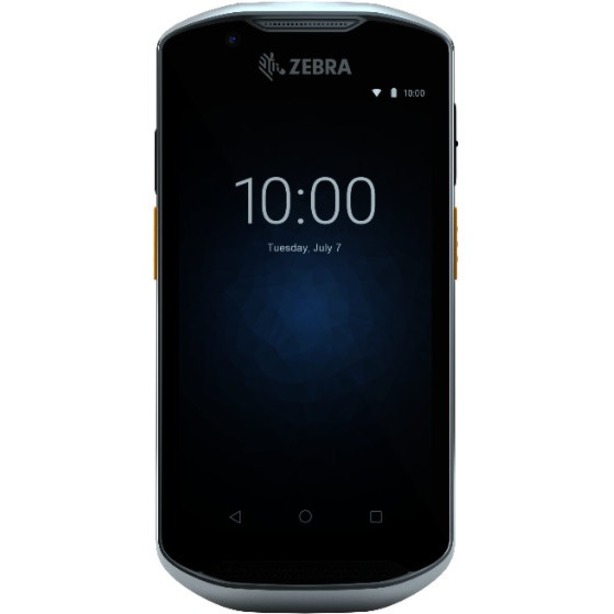

Zebra TC520K-1XFMU6P-FT Mobile Computer
Part Number:
TC520K-1XFMU6P-FT
Model:
TC52
Full specifications (PDF)
Zebra TC52 Mobile Computer Model Overview
The TC52/TC57 Touch Computers build on the highly successful TC51/TC56, adding a new platform and new capabilities to deliver the ultimate in enterprise-class touch computing. You get the ultimate user experience — the simplicity of Android with all the business features workers need to maximize productivity and minimize process cycle times. You get the ultimate technology advancements on a cutting edge platform, maximizing the benefits of mobility today, with the future proofing you need to serve your business tomorrow. You get the ultimate collection of value-add apps, Mobility DNA™, with four new complimentary solutions that deliver unparalleled functionality — including the best possible WiFi performance, centralized control of the device update process, control over access to Google Mobile Services (GMS) and more. And optional Visibility Services offer the ultimate in device management capabilities to maximize device value.
Android for instant familiarity
Your workers already know how to use an Android device, virtually eliminating training time and adoption curves. And you can deliver the highly-graphic interactive apps today’s workers expect.
Advanced touchscreen technology
Give your workers touchscreen simplicity. The 5 in. display offers plenty of real estate for graphics-intensive intuitive applications. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And with best-in-class outdoor readability, the screen is easy to read, even in bright sunlight.
Easily capture it all — barcodes, labels and documents
Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc — regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance — no need to ever align the device with the barcode. Need to capture multiple barcodes on a single label or data on a form, such as checkboxes, text fields, signatures and more? You can do it all with the press of a single button with Zebra’s SimulScan, a no-cost pre-installed Mobility DNA application.
Full shift power your workers can count on
The PowerPrecision+ high capacity battery delivers an impressive 14 hours of power — plenty for the longest shift. With Warm Swap mode, swapping batteries is fast and easy — there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.
Active Edge™ Touch Zone for One-touch Feature Access
Your users can easily create unique dedicated soft keys on either side of the display to access their most frequently used device features and applications with single touch simplicity — from the scanner, camera and line-of-business applications to push-to-talk and text messaging.
Rugged and ready for the toughest business day
While these touch computers look like smartphones, the similarities stop there — they are engineered for the enterprise, inside and out. You can drop it in water or on concrete and use it in dusty areas, out in the rain or snow — and still expect reliable operation. The unibody design provides extra impact protection for the sensitive electronics. And the Corning® Gorilla® Glass touch panel and imager window bring maximum scratch-resistance and shatter-proofing to two of the most vulnerable device features.
A platform to handle all your apps — today and tomorrow
The ultra-powerful processor provides superior performance on all voice and data apps. You also get built-in support for the next two versions of Android (P and Q) and future apps, such as artificial intelligence.
Rich locationing support
Easily implement locationing with support for many technologies, including Visible Light Communication (VLC), Bluetooth 5.0 BLE and WiFi, plus Zebra’s SmartLens and MotionWorks solutions.
Support for the latest WiFi enhancement improves WiFi range and speed — with less power
2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting WiFi network capacity, speed and range. And processing is shifted from the mobile device to the access point, extending battery cycle time.
The highest quality voice in its class
Three microphones, high-volume speakers and noise-cancellation technology work together to ensure that callers on both ends of every call can hear every word — even in the noisiest areas.
New 5 MP front-facing camera supports more advanced apps
With the new front-facing camera, you get built-in support for the latest positioning technology, Visible Light Communication (VLC) which allows you to track the location of shoppers and workers with compatible overhead LED lighting. Video calling improves service and productivity. Customers enjoy a more personal touch — and remote experts can see a repair in process to help onsite technicians resolve issues faster and increase first-time-fix rates.
Complete cellular network flexibility with single device simplicity
The TC57 provides all workers anywhere in the world with dependable cellular service. Support for carrier aggregation substantially improves application performance by increasing data capacity and speeds. It is certified on leading public safety networks, including AT&T FirstNet and Verizon, assuring responders have the connectivity they need even when networks are overloaded in crisis situations.
Ultra high-resolution photos and videos
The 13 MP color rear camera captures highly detailed photos and videos — ideal for proof-of-condition/delivery/service, onsite technical support and more.
Bluetooth 5.0 for twice the speed and four times the range — with less power
Improved data speeds up to 2 Mbps increases application flexibility and performance for Bluetooth peripherals, such as printers and headsets, while Bluetooth Low Energy reduces power requirements to extend battery cycle times.
Maximize productivity with enterprise accessories
Unlike consumer smartphones, you get a full suite of backward compatible business-class accessories that make the TC52/TC57 easier to use and manage, from a snap-on trigger handle for easier scanning to unique ShareCradles that charge it all — devices and batteries.
WorryFree WiFi — dependably superior WiFi, delivered
Provide every worker with the best possible WiFi connection, every minute of every shift. This free tool delivers near instant application response times, unmatched roaming performance, plus exceptional voice quality and network diagnostics — everything you need to leverage your WiFi network to increase workforce productivity and better serve customers.
PowerPrecision Console — prevent aging batteries from reducing workforce productivity
This free PC-based solution provides an easy-to-read dashboard that allows you to quickly identify and remove aging batteries from your battery pool — before they impact workforce productivity and mobile device uptime.
End-to-end revolutionary control of the update process with LifeGuard
Updating your enterprise-class Android mobile devices is often time-consuming, costly, complex and difficult to track. Now you can do it all with LifeGuard Analytics — free with your Zebra OneCare® Support contract. View available updates along with priority and which devices are eligible for the update. Automatically update your devices over the air with the press of a button. And easily monitor and manage the status of updates in real time.
Easily manage access to Google Mobile Services (GMS) with Restricted Mode
StageNow’s new Restricted Mode delivers an industry first — an easy way to simply click to deactivate Google Mobile Services (GMS) that come standard with the operating system — and reactivate should you need them down the road.
Improve device value with Zebra’s optional Visibility Services
Get the device management data you need to take device uptime, operational efficiency and the return on investment to the next level. Asset Visibility Service (AVS) is an easy to use and deploy solution that doesn’t require an Enterprise Mobility Management (EMM) system. Operational Visibility Services (OVS) is a comprehensive device management solution that leverages your EMM information to help get more value out of your Zebra mobile devices. These optional services can be added to your optional Zebra OneCare support contract.
RETAIL ASSOCIATES
• Price/inventory checks • Loyalty apps • Item locator • Price management • Line busting/POS • Assisted selling • Electronic coupons • Store transfers • Gift registry lookup
RETAIL MANAGERS
• Workforce management • Planogram management • Promotion compliance • Merchandising
DIRECT STORE DELIVERY DRIVERS
• Order automation • Delivery tracking • Inventory management • Customer support
FIELD SERVICE TECHNICIANS
• Asset management • Parts inventory • Invoicing • Scheduling and location-based services
LIGHT COURIER DRIVERS
• Proof of delivery • Asset management • Location services • Invoicing
GOVERNMENT AND PUBLIC SAFETY
• eCitation • Situational awareness • Communication and collaboration • Asset management
TC52/TC57 Series Specifications
Standard Features
- Android 10 (upgradable through Android 11/R) with Zebra’s Restricted Mode for control over GMS (Google Mobile Services) and other pre-loaded apps
- 5.0 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
- Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
- Qualcomm Snapdragon 660 octa-core, 2.2 GHz
- 4GB RAM/32GB Flash Memory
- 13 MP (rear) and 5 MP (front) camera
- 1 nano SIM; 1 eSIM (TC57 only)
- Wi-Fi (802.11a/b/g/n/ac/d/h/i/r/k/v/w); Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO
- Bluetooth 5.0 BLE
- IP68 and IP65
Optional Features and Accessories
- Zebra OneCare® SV (Special Value Add) and Essential and Select support services
- Snap-on USB/Charge Back Accessory
- Snap-on Trigger Handle Accessory
- Rugged Boot Accessory
- TC5X ShareCradles
- Zebra Bluetooth Printers
- Zebra Cordless Scanners
TC52/TC57 Series vertical markets and applications:
- Zebra TC520K-1XFMU6P-FT Mobile Computer Overview
THE ULTIMATE RUGGED TOUCH COMPUTER - WITH A MORE ADVANCED PLATFORM
When you choose the Zebra TC52x/TC57x, you get our best-selling TC52/TC57 rugged handheld mobile computer - and more. More advanced Zebra-only features that put the user experience in a class of its own to boost ease-of-use and productivity to new heights. More support for the latest mobile innovations, paving the way for new applications such as payment solutions that deliver more value - and superior future proofing. More Mobility DNA tools that make device management, device integration, application development and the user interface easier than ever. All in the first device in its class to offer the power of Android 10 - with up to 8 years of security updates to protect your device every day it is in service.
A USER EXPERIENCE IN A CLASS OF ITS OWN
All the power of Android 10
The best version yet, Android 10 is packed with new features that let workers do business faster, easier and more securely. Instant familiarity with Android virtually eliminates training time and adoption curves. And you can give workers the time-saving intuitive apps they expect.
Maximum application performance
Instantly navigate through application screens, thanks to the faster 2.45 GHz processor and new Universal Flash Storage (UFS).
Advanced higher-resolution touchscreen technology with Full HD
Full HD utilizes the entire 5 inch display, providing more room to view more information. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And the best-in-class outdoor readability screen is easy to read, even in bright sunlight.
An advanced scan engine for the fastest, easiest data capture
Easily capture 1D and 2D barcodes, labels and documents with the new SE4720 scanner. You get lightning fast barcode capture, maximum motion tolerance - workers can capture barcodes as fast as they can press the scan button; the ability to capture even poor quality, damaged and dirty barcodes. A larger 'sweet spot' makes scanning even easier with point-and-shoot simplicity - and enables the close-up capture of large barcodes. And a wide working range beyond 24 in./60 cm supports more applications.
Full shift power your workers can count on
The PowerPrecision+ high capacity battery delivers an impressive 14 hours of power1 - plenty for the longest shift. With a two-minute Warm Swap mode, swapping batteries is fast and easy - there's no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.
Easily find misplaced devices
An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices.
Shave steps and time out of tasks with rich locationing support
Enable locationing applications that improve the shopper experience and workforce efficiency - and increase sales - with support for Bluetooth 5.0 BLE and WiFi, as well as Zebra's SmartLens and MotionWorks solutions.
