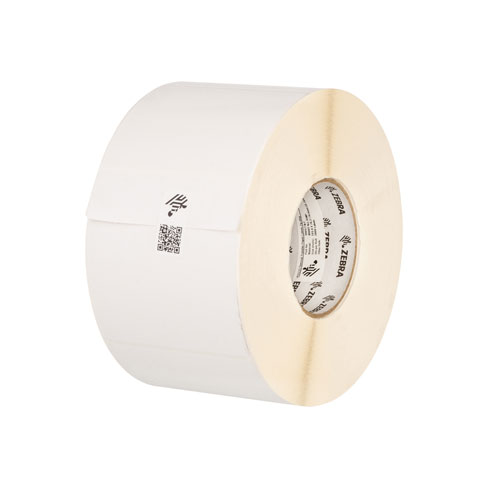

Zebra SAM5227 Labels

• Thermal transfer, matte polyolefin label with a cold-temp permanent acrylic adhesive
• Offers -112° F performance for low-temperature use; provides resistance to repeated freeze and thaw cycles
• Some smear/scratch and chemical resistance
• Very good resistance to dirt, blood, and water
• Excellent conformability to tight diameters
• Available in white (05227RM)

All products should be pre-tested to ensure it meets all intended requirements of specific end-use applications.

Suggested Applications:

• Medical labs • Hospitals • Cold temp industrial/ manufacturing applications

Material Construction

Component Description Caliper Facestock White corona-treated polyolefin 3.5 mil Adhesive Permanent, acrylic- based 0.8 mil Liner 50 lb. semi-bleached, kraft stock 3.2 mil TOTAL ± 10% 7.5 mil

Temperature Performance

Minimum Application Temperature Service Temperature Optimal Storage Conditions 50° F (10° C) -112° F to 200° F (-80° C to 93° C) 72° F (22° C) at 50% RH Expected Exterior Life 1 year

Chemical Resistance

Suggested Ribbon Chemical 6100 3200 Weak Blood • • Body Fluid • • Salt Water • • Water • • Window Cleaner • • Moderate Alcohol • • Ammonia • • Bleach • • IPA • • Harsh Gasoline • • Grease • • Oil • • Extreme Acetone NR NR IR Reflow NR NR MEK NR NR TCE NR NR Xylene NR NR

Product Performance and Suitability:

The information contained in this document is to be used for guidance only and is not intended for use in setting specifications. All purchasers of Zebra products shall be solely responsible for independently determining if the product conforms to all requirements of their unique application.

Matte polyolefin label with a cold-temp permanent acrylic adhesive that offers -112° F /-80° C performance for low-temperature use; provides resistance to repeated freeze and thaw cycles
