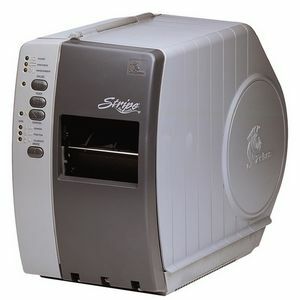

Zebra S600-104-00000 Barcode Label Printer

The Zebra S600-104-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra S600 - Direct Thermal/Thermal Transfer Printing, 203 DPI, 4" Print Width, Parallel and Serial Interfaces. Includes EU/UK Power Cord. Parallel (Part# 02798) and Serial (Part# 52184) interface cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 2 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra S600 Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra S600-104-00000 Barcode Label Printer
Zebra S600-104-00000 Barcode Label Printer Zebra S600-104-00000 Barcode Label Printer Zebra S600-104-00000 Barcode Label Printer
Zebra S600-104-00000 Barcode Label Printer
Zebra S600-104-00000 Barcode Label Printer

Full specifications (PDF)
Zebra S600 Barcode Label Printer Model Overview
The S600 ranks among Zebra's most popular printers. With Zebra Stripe Series printers, you can count on consistent, reliable performance. The S600 features state-of-the-art technology, including real-time clock and the new ZebraLink real-time connectivity and control solution. Each printer can accommodate a full-sized roll of media within the printer, minimizing media maintenance and label contamination by airborne dust or moisture. Lightweight, yet highly durable, these printers can be easily moved from one workstation to the next, anywhere they are required. Replaces the Zebra S-500 printer. All units ship with one user's manual.
Zebra S600-104-00000 Barcode Label Printer Overview

The Stripe S600 ranks among Zebra's most popular printers. With Zebra Stripe S600 printer, you can count on consistent, reliable performance. The S600 features state-of-the-art technology and has a standard media door. This printer can accommodate a full-sized roll of media within the printer, minimizing media maintenance and label contamination by airborne dust or moisture. Lightweight, yet highly durable, the S600 can be easily moved from one workstation to the next, anywhere it is required.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Ultracode
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Black Mark
  • Perforated Label
  • Notched
  • Tag Stock
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Height:
13"
Width:
8.3"
Depth:
17"
Miscellaneous
Package Contents:
  • S600 Label Printer
  • User guide
  • Accessories CD
  • Power cord with UK/ European plug
Cables Included:
AC
Additional Information:
  • Auto-calibration
  • Transmissive Sensor
  • Standard Media Door
  • Auto-switching power supply
Platform Supported:
PC
Certifications & Standards:
  • CSA 22.2 (No. 950-95)
  • UL 1950
  • EN 50082-1
  • CISPR 22 (Class B)
  • IEC 950
  • EN 60950
  • IEC 801-2, -3 and -4
  • FCC (Part 15 Subpart B/Level B)
  • CE compliance
  • CB scheme documents
  • UL544 (Part 42.5)
  • EMC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra S600-104-00000 Barcode Label Printer is also known as ZEB-S600-104-00000 or S60010400000.
