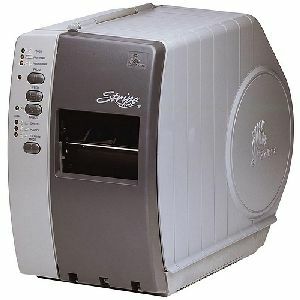

Zebra S600 – Barcode Label Printer – 203 dpi – Thermal Transfer – Real-Time Clock

Part Number: S600-101-00120
Model: S600
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer Printing, 203 DPI, 4" Print Width, Parallel and Serial Interfaces, Cutter, Real-Time Clock. Includes US Power Cord. Parallel (Part# 02798) and Serial (Part# 52184) interface cables sold separately.
Explore all Zebra S600 Barcode Label Printers
Add to Quote
Zebra S600-101-00120 Barcode Label Printer
Zebra S600-101-00120 Barcode Label Printer
Zebra S600-101-00120 Barcode Label Printer
Zebra S600-101-00120 Barcode Label Printer Zebra S600-101-00120 Barcode Label Printer

Full specifications (PDF)

Zebra S600 Barcode Label Printer Model Overview

The S600 ranks among Zebra's most popular printers. With Zebra Stripe Series printers, you can count on consistent, reliable performance. The S600 features state-of-the-art technology, including real-time clock and the new ZebraLink real-time connectivity and control solution. Each printer can accommodate a full-sized roll of media within the printer, minimizing media maintenance and label contamination by airborne dust or moisture. Lightweight, yet highly durable, these printers can be easily moved from one workstation to the next, anywhere they are required. Replaces the Zebra S-500 printer. All units ship with one user's manual.
Zebra S600-101-00120 Barcode Label Printer Overview

With Zebra Stripe S600 printer, you can count on consistent, reliable performance. The S600 features state-of-the-art technology, including real-time clock and the new ZebraLink real-time connectivity and control solution. This printer can accommodate a full-sized roll of media within the printer, minimizing media maintenance and label contamination by airborne dust or moisture. Lightweight, yet highly durable, the S600 can be easily moved from one workstation to the next, anywhere it is required.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Ultracode
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Black Mark
  • Perforated Label
  • Notched
  • Tag Stock
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
8.3"
Depth:
17"
Miscellaneous
Package Contents:
  • Stripe S600 Thermal Label Printer
  • User's CD
  • Power Cord with US plug
Cables Included:
AC
Additional Information:
  • Auto-calibration
  • Real Time Clock
  • Transmissive Sensor
  • Standard Media Door
  • Peel with 1/2 liner take-up
  • Auto-switching power supply
Platform Supported:
PC
Certifications & Standards:
  • CSA 22.2 No. 950
  • UL 1950
  • EN 50082-1
  • CE
  • FCC Class B
  • CISPR Class B
  • GSA
  • IEC 950/EN 60950
  • IEC 801-2, -3 & -4 standards
  • CB
  • UL544
  • EMC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
