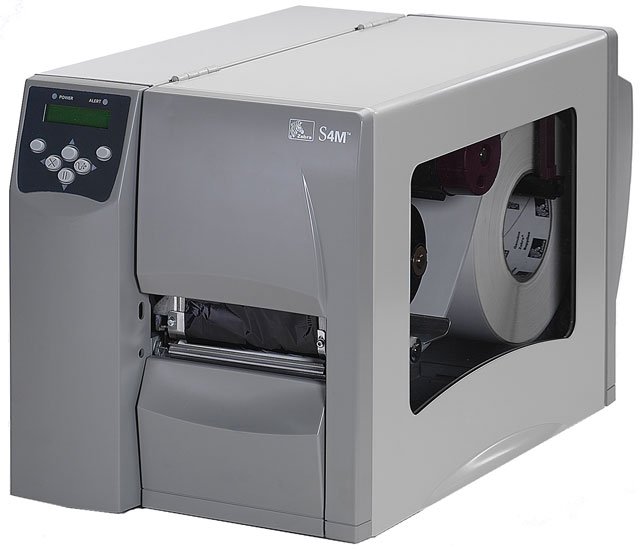

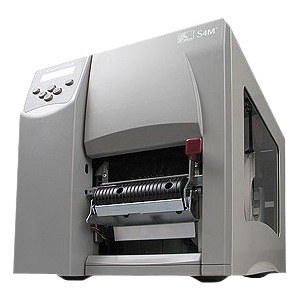

Zebra S4M – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer

Part Number: S4M00-3001-1500T
Model: S4M
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB, Wi-Fi
Print Resolution
300 dpi, 305 dpi

Product Description:

  Direct Thermal-Thermal Transfer Bar Code Printer (300 dpi, ZPL II, XML, 4MB Flash, Power Cord with US Plug, Peel, Serial, USB and ZebraNet Internal Wireless Plus - Includes Radio Card)
Explore all Zebra S4M Barcode Label Printers
Add to Quote
Zebra S4M00-3001-1500T Barcode Label Printer
Zebra S4M00-3001-1500T Barcode Label Printer
Zebra S4M00-3001-1500T Barcode Label Printer
Zebra S4M00-3001-1500T Barcode Label Printer Zebra S4M00-3001-1500T Barcode Label Printer

Full specifications (PDF)

Zebra S4M Barcode Label Printer Model Overview

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.
Zebra S4M00-3001-1500T Barcode Label Printer Overview

Zebra's S4M printer proudly wears the Stripe series name. Offering ease of use, a metal construction and a variety of connectivity features into a thermal printer that takes a full 8" roll of Zebra labels for fewer media changes. Designed for the budget minded, the S4M has the features needed to support many applications at an affordable price. With easy controls and proven side loading design, it's quick to learn, use and load, so operators can focus on more productive tasks.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 128 UCC
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • RSS
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • GS1 DataBar
  • S2 of 5
Peel Facility:
Yes
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Tag
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.6"
Width:
10.7"
Depth:
18.8"
Miscellaneous
Package Contents:
  • S4M Network Thermal Label Printer
  • Power Cord
  • Safety Guide
  • User's CD (includes Ztools Utilities, ZPL II Programming Guide, ZebraDesigner software, Universal Windows Printer Driver)
Cables Included:
AC
Additional Information:
  • Radio Card
  • Unicode Compliant
  • Back-lit LCD control panel
  • Element Energy Equalizer
  • Power Cord with US plug
  • Metal media cover with enlarged clear window
  • Construction: Die-cast metal frame with sheet metal enclosure
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
