Zebra S4M – Barcode Label Printer – 300 dpi, 305 dpi – Direct Thermal

Part Number: S4M00-3001-0200D
Model: S4M
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi

Product Description:

  Direct Thermal, 300 dpi, 4.09" print width, Serial, USB and Ethernet interfaces, 8MB RAM, 4MB flash and ZPL. Includes US power cord. Order cables separately, see accessories.
Explore all Zebra S4M Barcode Label Printers
Add to Quote

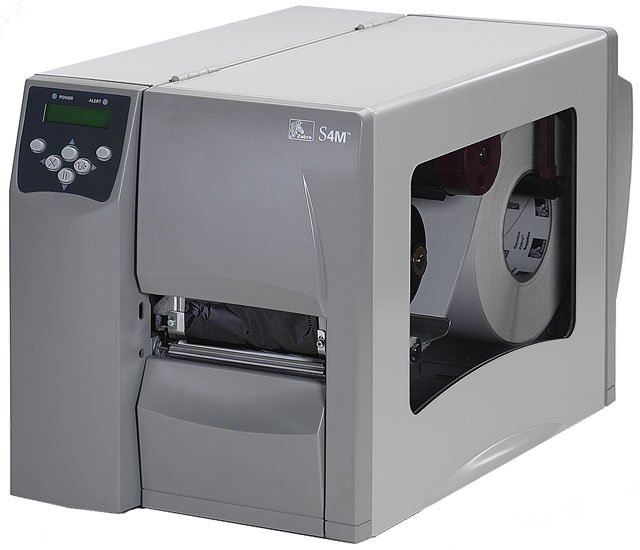

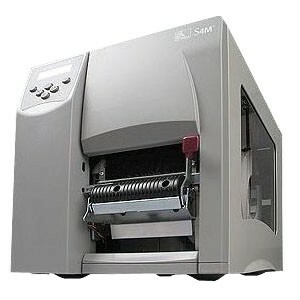

Zebra S4M00-3001-0200D Barcode Label Printer
Zebra S4M00-3001-0200D Barcode Label Printer
Zebra S4M00-3001-0200D Barcode Label Printer
Zebra S4M00-3001-0200D Barcode Label Printer Zebra S4M00-3001-0200D Barcode Label Printer

Full specifications (PDF)

Zebra S4M Barcode Label Printer Model Overview

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.
Zebra S4M00-3001-0200D Barcode Label Printer Overview

S4M Label printer is ease of use, metal construction, S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • RSS
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • EAN-13
  • EAN-8
  • UPC-A with 2 or 5 Digit Extension
Features:
Tear-off
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Tag
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.6"
Width:
10.7"
Depth:
18.8"
Miscellaneous
Package Contents:
  • S4M Label Printer
  • Power Cord with US plug
  • Safety Guide
  • User's CD
Cables Included:
AC
Additional Information:
  • 8.0 inches outer diameter on a 3 inches internal diameter core
  • 6.0 inches outer diameter on a 1inches internal diameter core
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
