Zebra S4M00-3001-0110T Barcode Label Printer

Zebra ZT23043-T01000FZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT23043-T01000FZ Barcode Label Printer.
Zebra S4M - Direct Thermal/Thermal Transfer printing, 305 dpi, 4" print width, Serial/Parallel/USB interfaces, Real Time Clock. Includes US power cable. Interface cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.5 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.50" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports continuous label media type for dependable, efficient results with maximum productivity
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides maximum usability with better reliance
  • Tear Bar feature for better reliance and usability
  • Comes with 8 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra S4M Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra S4M00-3001-0110T Barcode Label Printer
Zebra S4M00-3001-0110T Barcode Label Printer Zebra S4M00-3001-0110T Barcode Label Printer Zebra S4M00-3001-0110T Barcode Label Printer
Zebra S4M00-3001-0110T Barcode Label Printer
Zebra S4M00-3001-0110T Barcode Label Printer

Full specifications (PDF)

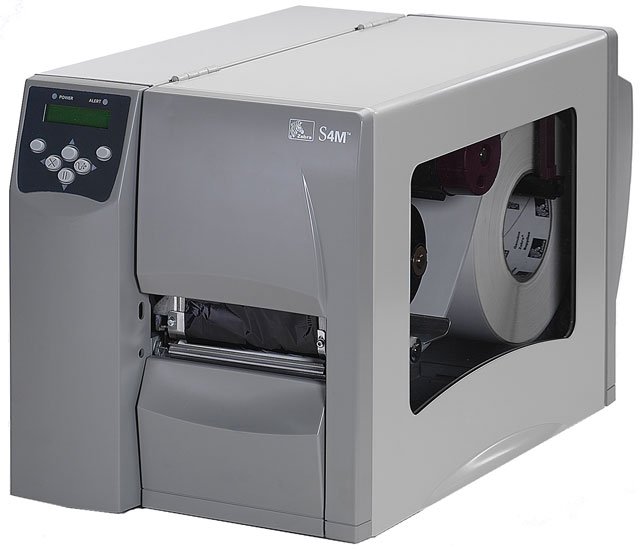

Zebra S4M Barcode Label Printer Model Overview
The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.
Zebra S4M00-3001-0110T Barcode Label Printer Overview

Zebra's S4M printer proudly wears the Stripe series name. Offering ease of use, a metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of Zebra labels for fewer media changes. Designed for the budget-minded, the S4M has the features needed to support many applications at an affordable price.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • RSS
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • GS1 DataBar
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Tear Bar
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Tag
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • XML
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.6"
Width:
10.7"
Depth:
18.8"
Weight (Approximate):
27.20 lb
Miscellaneous
Package Contents:
  • S4M Label Printer
  • Power Cord with US Plug
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cULus
  • CE
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra S4M00-3001-0110T Barcode Label Printer is also known as ZEB-S4M0030010110T
