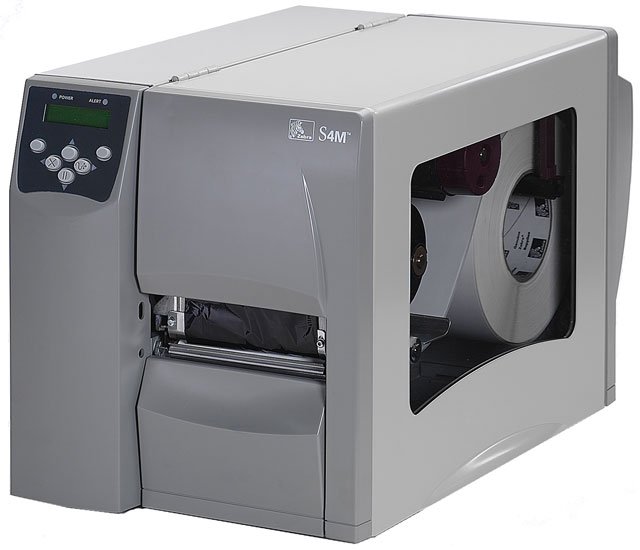

Zebra S4M00-2301-0200T Barcode Label Printer

The Zebra S4M00-2301-0200T Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra S4M - Direct Thermal-Thermal Transfer Bar Code Printer (203 dpi, APL-D, 4MB Flash, Power Cord with US Plug, Serial, Internal ZebraNet PrintServer 10/100 Ethernet and USB Interfaces)
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.5 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.50" maximum label width for dependable, desired results
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Tear-off feature for better reliance and usability
  • Comes with 8 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • Custom Size - 4.50" media size for maximum feasibility and better accommodation of your requirements
Read More

Need a different version? See all Zebra S4M Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra S4M00-2301-0200T Barcode Label Printer
Zebra S4M00-2301-0200T Barcode Label Printer Zebra S4M00-2301-0200T Barcode Label Printer Zebra S4M00-2301-0200T Barcode Label Printer
Zebra S4M00-2301-0200T Barcode Label Printer
Zebra S4M00-2301-0200T Barcode Label Printer

Full specifications (PDF)
Zebra S4M Barcode Label Printer Model Overview
The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.
Zebra S4M00-2301-0200T Barcode Label Printer Overview

S4M Label printer is ease of use, metal construction, S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • RSS
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • EAN With 2 or 5 Digit Extension
  • Aztec Code
  • PDF-417
Features:
Tear-off
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Tag
  • Black Mark
  • Label
Media Size:
  • Custom Size - 4.50"
  • 0.80"
  • 4.50"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • APL-D
Software
Software Included:
  • Ztools Utilities
  • BAR-ONE for mySAP(tm) Business Suite
  • Zebra's Universal Windows Printer Driver
  • ZebraDesigner software for simple label design
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
  • 60 Hz
  • 50 Hz
Physical Characteristics
Height:
11.6"
Width:
10.7"
Depth:
18.8"
Miscellaneous
Package Contents:
  • S4M Label Printer
  • Power Cord with US plug
  • Safety Guide
  • User's CD
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • Fixed Transmissive Sensor
  • Adjustable Reflective Sensor
  • 8 inch O.D on a 3 inch I.D. core
  • Element Energy Equalizer (E3) for superior print quality
  • Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
  • Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cULus
  • CE
  • FCC Class B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra S4M00-2301-0200T Barcode Label Printer is also known as ZEB-S4M0023010200T or S4M0023010200T.
