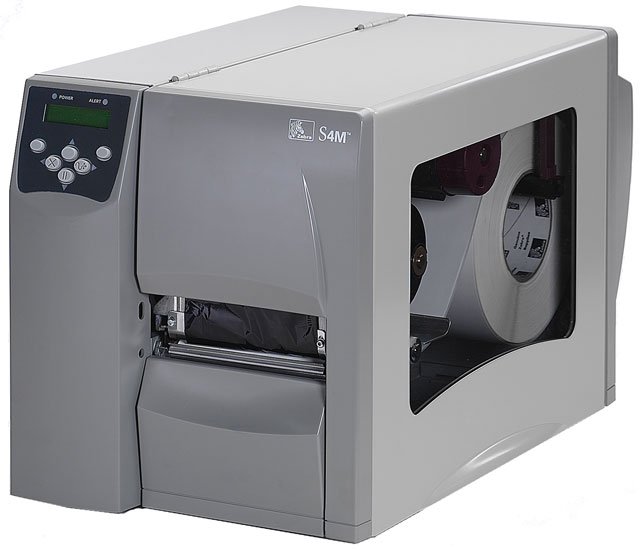

Zebra S4M00-2111-0100T Barcode Label Printer

Zebra ZT23042-T01100FZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT23042-T01100FZ Barcode Label Printer.
Zebra S4M - Direct Thermal-Thermal Transfer Bar Code Printer (203 dpi, EPL, 64MB Flash, Power Cord with US Plug, Serial, Parallel and USB Interfaces)
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.5 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Monochrome print color capability for better reliance and maximum productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.50" maximum label width for your convenience and feasible usability
  • 39" maximum label length for dependable, desired results
  • Supports continuous label media type for maximum feasibility and better accommodation of your requirements
  • Features multi-functional knives for conveniently cutting the paper to provide you with the desired shape
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides dependable printing solution with added productivity
  • Comes with 8 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra S4M Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra S4M00-2111-0100T Barcode Label Printer
Zebra S4M00-2111-0100T Barcode Label Printer Zebra S4M00-2111-0100T Barcode Label Printer Zebra S4M00-2111-0100T Barcode Label Printer
Zebra S4M00-2111-0100T Barcode Label Printer
Zebra S4M00-2111-0100T Barcode Label Printer

Full specifications (PDF)
Zebra S4M Barcode Label Printer Model Overview
The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.
Zebra S4M00-2111-0100T Barcode Label Printer Overview

Zebra's S4M printer proudly wears the Stripe series name. Offering ease of use, a metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of Zebra labels for fewer media changes. Designed for the budget-minded, the S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks. The printer offers standard serial, parallel and USB connectivity, as well as optional internal 10/100 Ethernet and IEEE 802.11b/g wireless networking for simple integration and remote monitoring, plus it can be ordered with different printer programming languages. Compared to similar printers on the market, the S4M thermal printer is an outstanding value.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • RSS
  • GS1 DataBar
  • Codabar
  • Code 11
  • Code 93
  • Code 39
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Black Mark
Media Handling:
1 x Catch Tray
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
EPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.6"
Width:
10.8"
Depth:
18.8"
Weight (Approximate):
27.20 lb
Miscellaneous
Package Contents:
  • S4M Label Printer
  • Power Cord with US Plug
  • Safety Guide
  • Software and Driver CD
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cULus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra S4M00-2111-0100T Barcode Label Printer is also known as ZEB-S4M0021110100T or S4M0021110100T.
