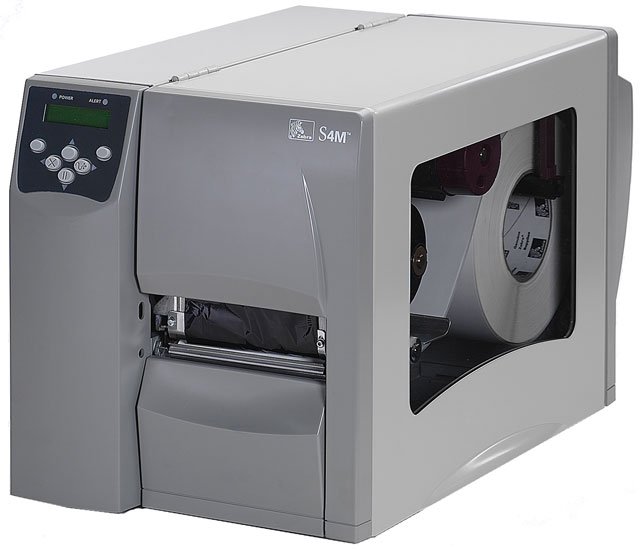

Zebra S4M00-2001-1100D Barcode Printer

0.0

(No reviews)

Be the first to

Zebra S4M - Direct thermal printing, 203 dpi, 4" print width, Serial/Parallel/USB interfaces. Includes US power cord. Interface cables sold separately.

See Replacement ›

A Variety of Connection Options for Affordable Printing

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.

Technical Information

Print Method:
- Direct Thermal
- Direct Thermal (DT)
Print Resolution: 203 dpi
Print Speed: 6 ips
Interfaces:
- 1 x Parallel
- 1 x Serial
- 1 x USB
Maximum Print Width: 4.09"
Maximum Label Width: 4.50"
Maximum Label Length: 39"
Media Sensor:
- Reflective
- Transmissive
Printer Language: ZPL
Input Voltage Range: 90 to 265 V AC
RAM Memory: 8MB
Flash Memory: 4MB
Mobile Printer: No

General Information

Manufacturer:
- Zebra
- Zebra Technologies Corporation
Product Name: S4M Label Printer

Physical Characteristics

Dimensions:
- 11.6" (294.64mm) x 10.7" (271.78mm) x 18.8" (478mm)
- 11.6" (294.64mm) x 10.7" (271.78mm) x x 18.8" (478mm)
Weight: 27.2 lb (12.34 kg)
Shipping Weight: 33.5lb (15.2kg)

Included Features

Included Features: Peel

Agency Approvals

Agency Approvals:
- IEC 60950
- EN 55022 Class B
- EN55024
- EN 61000-3-2
- EN 61000-3-3
- cULus
- CE
- FCC Class B
- ICES-003
- VCCI
- C-Tick
- NOM
- IRAM
- CCC
- GOST-R

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 104Â°F (40Â°C) Operating
- -40Â°F (-40Â°C) to 140Â°F (60Â°C) Storage
Humidity:
- 20 to 85% Operating Non-condensing
- 5 to 85% Storage Non-condensing

Other

Package Contents:
- S4M Label Printer
- Power Cord with US plug
- Safety Guide
- User's CD

Media Characteristics

Maximum Label Roll Diameter: 8"
Label Core Size: 3"
Ribbon Core Size: 1"
Ribbon Setup: Wound Out

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

See all Zebra S4M options »

Brand	Zebra
Model	S4M
Interface Options	USB, Parallel, Serial
Printer Type	Industrial
Maximum Print Width	4.09
Max Label Width	4.50
Print Resolution	203 dpi
Print Speed	6
Max Roll Outer Diameter	8
Label Core	1 inch
Included Features	Peeler
Print Method	Direct Thermal
Printer Mobility	Not Mobile
Ribbon Core	1
