Zebra S4M00-2001-0400T Barcode Label Printer

Zebra ZT23042-T01A00FZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT23042-T01A00FZ Barcode Label Printer.
Zebra S4M - Thermal transfer & Direct thermal, 203 dpi, Serial, ZebraNet Wireless Plus and USB Interfaces, 8MB RAM, 4MB Flash, Includes Power Cord with US Plug, ZPL (Wireless card not included, must be purchased separately. Recommended: AIR-CB21AG-A-K9)
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB, Wi-Fi
Print Resolution
203 dpi
Max Print Width
4.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Save time and money for your business by using one printer for all your employees
  • 4.50" maximum label width for your convenience and feasible usability
  • 39" maximum label length for dependable, desired results
  • Supports continuous form media type for maximum feasibility and better accommodation of your requirements
  • Tear-off feature for maximum efficiency and convenience
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More

Need a different version? See all Zebra S4M Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra S4M00-2001-0400T Barcode Label Printer
Zebra S4M00-2001-0400T Barcode Label Printer Zebra S4M00-2001-0400T Barcode Label Printer Zebra S4M00-2001-0400T Barcode Label Printer
Zebra S4M00-2001-0400T Barcode Label Printer
Zebra S4M00-2001-0400T Barcode Label Printer

Full specifications (PDF)
Zebra S4M Barcode Label Printer Model Overview

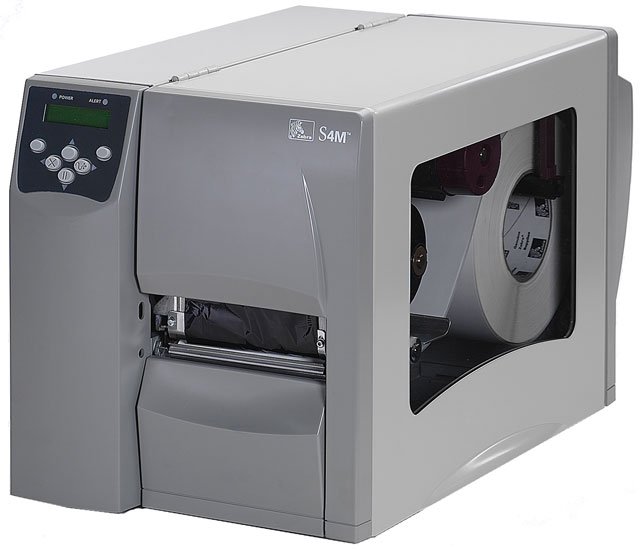

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.
Zebra S4M00-2001-0400T Barcode Label Printer Overview

S4M Label Printer packages ease of use and metal construction. Designed for the budget minded, the S4M has the features needed to support many applications at an affordable price. With easy controls and proven side loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • RSS
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • EAN With 2 or 5 Digit Extension
  • Aztec Code
  • PDF-417
Features:
Tear-off
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Tag
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Software
Software Included:
  • Ztools Utilities
  • BAR-ONE for mySAP(tm) Business Suite
  • Zebra's Universal Windows Printer Driver
  • ZebraDesigner software for simple label design
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
  • 60 Hz
  • 50 Hz
Physical Characteristics
Height:
11.6"
Width:
10.7"
Depth:
18.8"
Miscellaneous
Package Contents:
  • S4M Label Printer
  • Safety Guide
  • User's CD
  • Power Cord with US plug
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • Fixed Transmissive Sensor
  • Adjustable Reflective Sensor
  • 8 inch O.D on a 3 inch I.D. core
  • 6 inch O.D. on a 1 inch I.D. core
  • Element Energy Equalizer (E3) for superior print quality
  • Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
  • Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0778889971529, 0807027999986
UPC: 778889971529, 807027999986
EAN: 0778889971529, 0807027999986
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra S4M00-2001-0400T Barcode Label Printer is also known as ZEB-S4M0020010400T or S4M0020010400T.
