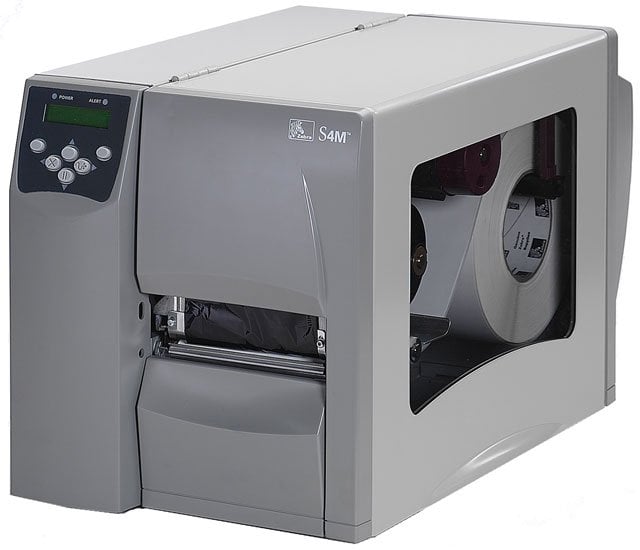

Zebra S4M00-2001-0100T Barcode Printer


4.5

(4 reviews)

Zebra S4M - Thermal transfer printing, 203 dpi, 4" print width, Serial/Parallel/USB interfaces. Includes US power cord. Interface cables sold separately.
A Variety of Connection Options for Affordable Printing

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 11.6" (294.64mm) x 10.7" (271.78mm) x 18.8" (478mm)
    • 11.6" (294.64mm) x 10.7" (271.78mm) x x 18.8" (478mm)
  • Weight: 27.2 lb (12.34 kg)
  • Shipping Weight: 33.5lb (15.2kg)

Agency Approvals

  • Agency Approvals:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • cULus
    • CE
    • FCC Class B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • S4M Label Printer
    • Power Cord with US plug
    • Safety Guide
    • User's CD

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model S4M
Maximum Print Width 4.09
Max Label Width 4.50
Interface Options Serial, USB, Parallel
Labels Per Day 1,001 - 5,000
Print Method Thermal Transfer
Max Roll Outer Diameter 8
Print Resolution 203 dpi
Print Speed 6
Printer Type Industrial
Label Core 1 inch
Printer Mobility Not Mobile
Ribbon Core 1


Customer Review Summary


4.5

(based on 4 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (2)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 4 customers

Sort by

Displaying reviews 1-4

Back to top


5.0

Better than its successor models

By Berkeley Bush

from Tallassee, AL

9/15/2014

Verified Buyer

Pros

  • Durable
  • Ease of Use
  • Easy Maintenance
  • Easy Set Up
  • Lcd Menu

Cons

  • Model At End-of-life

Best Uses

  • Box Label Printing
  • Manufacturing Environment
  • Serial Label Printing
  • Simple Bar Code Labels

Comments about Zebra S4M S4M00-2001-0100T:

We use the S4M in our manufacturing plant which can be a harsh environment. The S4M holds up excellently in that environment and performs flawlessly everyday. Problems we have had relate to cheaper media getting rolled around the platen roller and then operators making the mistake of taking a knife to cut them. This means the printer has to be sent off for repair. Our most common repairs have been to replace platen rollers and print heads, but those are rare. This model is better than its successors (ZT200 series) because the menu has a TOP setting and because the ribbon take up spindle does not require a cardboard tube. Even though the replacement models have the great advantage of being able to replace the print head and platen roller yourself, the lack of the TOP setting and the need for a cardboard roll on the take up spindle negate them for use in our factory. The S4M is so reliable and easy to use that I bought several of them as spares even though they are End-Of-Life. Get yours while you can!


4.0

Awesome Printer

By Mashley

from Chicago, IL

1/23/2013

Verified Buyer

Comments about Zebra S4M S4M00-2001-0100T:

We use this printer everyday. This is actually the second one we've bought because the first works so well

(1 of 1 customers found this review helpful)


5.0

Rock Solid

By SergMIS

from El Paso, TX

5/30/2012

Verified Reviewer

Pros

  • Best bang for the buck
  • Easy to configure
  • Rock Solid Performer

Cons

  • 3 years None so Far
  • I only have 40 of them

Best Uses

Comments about Zebra S4M S4M00-2001-0100T:

For Direct Thermal and Thermal Transfer Printing of Barcode Labels and Tags in a Manufacturing Environment. Big Display panel and Web GUI make configuration and troubleshooting easy. Highly reliable, simple to use and very affordable solution.


4.0

Solid Workhorse

By Trailer Guy

from Cookeville, TN

5/30/2012

Verified Reviewer

Pros

  • Easy loading
  • I have never had a jam

Cons

  • Roll size limit

Best Uses

  • Print runs of - 2000
  • Small label jobs

Comments about Zebra S4M S4M00-2001-0100T:

This machine has never let me down in my smaller barcode runs. This machine will not jam, it's great
