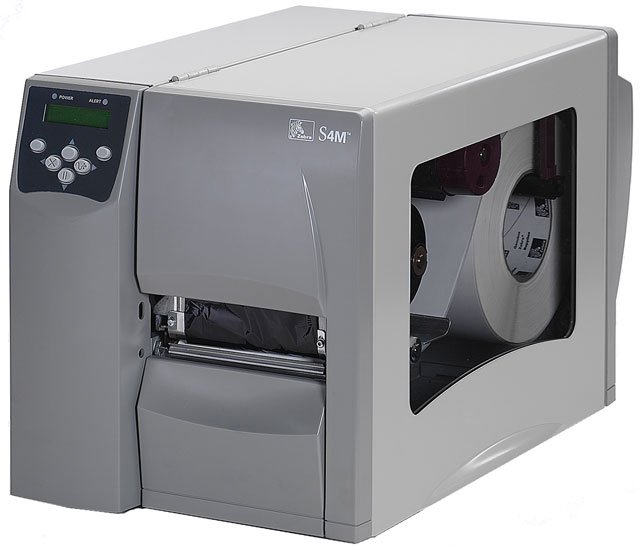

Zebra S4M00-2001-0100D Barcode Printer


3.0

(2 reviews)

Zebra S4M - Direct thermal printing, 203 dpi, 4" print width, Serial/Parallel/USB interfaces. Includes US power cord. Interface cables sold separately.
A Variety of Connection Options for Affordable Printing

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Tear-off
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC-A with 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • RSS
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • Micro PDF-417
    • TLC 39

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: S4M
  • Product Name: S4M Thermal Label printer

Physical Characteristics

  • Height: 11.6"
  • Width: 10.7"
  • Depth: 18.8"

Other

  • Platform Supported: PC
  • Package Contents:
    • S4M Label Printer
    • Power Cord with US plug
    • Safety Guide
    • User's CD
    • S4M Label Printer
    • Power Cord with US plug
    • Safety Guide
    • User's CD
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
  • Additional Information:
    • Unicode -Compliant
    • Fixed Transmissive Sensor
    • Adjustable Reflective Sensor
    • 8 inch O.D on a 3 inch I.D. core
    • 6 inch O.D. on a 1 inch I.D. core
    • Element Energy Equalizer (E3) for superior print quality

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Tag
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model S4M
Maximum Print Width 4.09
Max Label Width 4.50
Max Roll Outer Diameter 8
Print Resolution 203 dpi
Print Speed 6
Interface Options Parallel, Serial, USB
Label Core 1 inch
Print Method Direct Thermal
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
