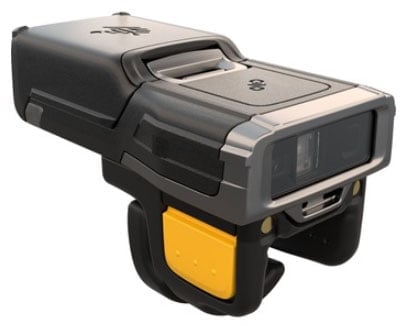

Zebra RS6100 – Barcode Scanner

Part Number: RS61B0-KFSSYWR
Model: RS6100
Add to My Shopping List Add to Compare
$1,414.35
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scan Engine Model
SE55
Light Source
Laser
Scan Mode
Trigger

Product Description:

  Barcode Scanner, Zebra RS6100, RS6100 Wearable Scanner, SE55, Freezer Battery (660mAh), Single Trigger, -30oC to +50oC Operation, Worldwide
Explore all Zebra RS6100 Barcode Scanners
Add to Quote
Zebra RS61B0-KFSSYWR Barcode Scanner
Zebra RS61B0-KFSSYWR Barcode Scanner
Zebra RS61B0-KFSSYWR Barcode Scanner
Zebra RS61B0-KFSSYWR Barcode Scanner
Zebra RS61B0-KFSSYWR Barcode Scanner
Zebra RS61B0-KFSSYWR Barcode Scanner Zebra RS61B0-KFSSYWR Barcode Scanner Zebra RS61B0-KFSSYWR Barcode Scanner Zebra RS61B0-KFSSYWR Barcode Scanner Zebra RS61B0-KFSSYWR Barcode Scanner
Full specifications (PDF)

Zebra RS6100 Barcode Scanner Model Overview

The RS6100 Bluetooth Wearable Scanner by Zebra is your ultimate solution for maximizing productivity in demanding environments. This lightweight and compact device, weighing just over two ounces, features an advanced multi-focus scan engine that captures 1D and 2D barcodes from as far as 40 ft. away, regardless of conditions. With five interchangeable wearing styles, it enhances user comfort and efficiency, whether in freezers, warehouses, or on loading docks. The removable battery design ensures minimized downtime, letting you swap batteries seamlessly for continuous operations.


Key Features
  • Maximum Versatility: Choose between cordless and corded operation.
  • Exceptional Scanning Range: Capture barcodes from 2 in. to 40 ft.
  • Durability: IP65 rated, withstands harsh conditions and multiple drops.
  • Instant Pairing: NFC technology for quick setup.
  • Custom Comfort: Five different wearing styles to suit user preferences.
  • Advanced Battery Management: Removable and replaceable batteries to reduce downtime.

Specifications
  • Dimensions: 2.62 in. L x 1.29 in. W x 0.83 in. D
  • Weight: 2.47 oz. with standard battery
  • Scanning Engine: SE55 1D/2D Advanced Range with IntelliFocus™
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Battery: 480 mAh standard; 735 mAh extended
  • Sealing: IP65 rated for water and dust resistance
  • Drop Specification: Multiple 6 ft./1.8 m drops to concrete
  • Bluetooth Technology: Class 1 and 2, Bluetooth v5.2
  • Supported 1D & 2D Symbologies: Various common formats including QR Codes and UPC
  • Warranty: 1-year limited warranty against defects
Zebra RS61B0-KFSSYWR Barcode Scanner Overview

Maximum versatility, power and performance

Introducing Zebra's most powerful and versatile wearable scanner-the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition-scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there's a style that will maximize comfort for every user. Use it anywhere-from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery-no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.

Small and Practically Weightless

The RS6100 is less than half the size and weight of its predecessor, the RS6000-just over two ounces and two cubic inches.

Cordless or Corded-It's Your Choice

Pair with any Bluetooth-enabled Zebra enterprise-class handheld, tablet, wearable or vehicle mount mobile computer to utilize the full feature set of the RS6100-or pair with any existing Bluetooth smartphone, tablet or PC. Want to eliminate the need for batteries with corded operation? Power the RS6100 via a corded adapter that connects to select Zebra mobile devices, including wearable and handheld computers.

Instant pairing - just tap and go

With NFC, simply tap the RS6100 on NFC-enabled Zebra devices - no need to scan a pairing barcode or open Bluetooth settings to identify and select the device.

Direct users with programmable line-of-sight LEDs

Programmable multiple LEDs on the back of the RS6100 can provide users with feedback to improve productivity and task accuracy - confirm successful scans, direct users through the fastest path to the right item and more.

Prevent the spread of germs with personal trigger assemblies

A modular two-piece design separates the trigger assembly from the scanner body. Since only the trigger assembly touches skin, you can give each worker their own trigger.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scan Engine Model:
SE55
Light Source:
Laser
Scan Mode:
Trigger
Scanner Range:
Long Range
Scanning Distance:
72.01"
Features:
  • Beep
  • Notification LED
  • Vibration
  • NFC Reader
Field of View (Horizontal):
37°
Field of View (Vertical):
21°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
107639 lux
Drop Specification:
  • Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
100 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
100 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
2688 x 1520
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
15kV DC
Contact Electrostatic Discharge (+/-):
8kV DC
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
660 mAh
Environmental Conditions
Operating Temperature:
-22°F (-30°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Width:
1.3"
Depth:
0.8"
Length:
2.6"
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Warehouse
  • Picking
  • Packing
  • Sorting
  • Distribution
  • Manufacturing
  • Inventory
  • Component Tracking
  • Assembly Line
  • Transportation
  • Logistics
  • Retail
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (1)
  • Carrying and Protective Accessories (4)
  • Docks and Cradles (3)
  • Mounting Hardware and Stands (2)
  • Power Device (1)

Recommended Accessories for Model: Zebra RS61B0-KFSSYWR Barcode Scanner

Top Batteries Purchased With Zebra RS61B0-KFSSYWR

  • Zebra BTRY-RS5X6-6MA-01 Battery
    Zebra BTRY-RS5X6-6MA-01 Battery
    Batteries, Zebra, RS5100 / RS6100 Lithium Ion Battery for Freezer Operation, 660mAh, Worldwide, Enables Operation From -30 C/-22 F to 50 C/122 F With RS6100 And -20 C/-4 F To 50 C/122 F With RS5100
    In Stock
    $147.59
    Add to Quote

Top Cables, Connectors, and Adapters Purchased With Zebra RS61B0-KFSSYWR

Top Carrying and Protective Accessories Purchased With Zebra RS61B0-KFSSYWR

See All Carrying and Protective Accessories for Zebra RS61B0-KFSSYWR Barcode Scanner >

Top Docks and Cradles Purchased With Zebra RS61B0-KFSSYWR

  • Zebra CRD-RS61-20SCHG-01 Docks and Cradles
    Zebra CRD-RS61-20SCHG-01 Docks and Cradles
    Docks and Cradles, Zebra, 20-Slot Ring Scanner Charger, Allows Charging Of 20 Ring Scanners, Requires Power Supply (PWR-BGA12V108W0WW), DC Line Cord (CBL-DC-382A1-01) and 3-Wire Grounded Country Specific AC Line Cord, Sold Separately, for RS6100
    In Stock
    $2,016.02
    Add to Quote
  • Zebra CRD-RS61-4SCHG-01 Docks and Cradles
    Zebra CRD-RS61-4SCHG-01 Docks and Cradles
    Docks and Cradles, Zebra, 4-Slot Ring Scanner Charger, Allows Charging Of 4 Ring Scanners, Requires Power Supply (PWR-BGA12V50W0WW), DC Cable (CBL-DC-388A1-01) and 3-Wire Grounded Country Specific AC Line Cord, Sold Separately, for RS6100
    In Stock
    $465.24
    Add to Quote
  • Zebra CRD-RS5X6-2SCHG-01 Docks and Cradles
    Zebra CRD-RS5X6-2SCHG-01 Docks and Cradles
    Docks and Cradles, Zebra, RS5100/RS6100 2 Bay Charger, Requires Country Specific Charger PWR-WUA5V12W0XX And CBL-TC5XUSBc2A-01, Optional Shim For Battery Charging Is Shim-CRDr5X62B-01.
    In Stock
    $221.44
    Add to Quote

Top Mounting Hardware and Stands Purchased With Zebra RS61B0-KFSSYWR

Top Power Device Purchased With Zebra RS61B0-KFSSYWR

Frequently Asked Questions

The Zebra RS6100 features the SE55 1D/2D Advanced Range scan engine with Intellifocus technology, delivering an extraordinary scanning range of 2 inches to 40 feet (5.08 cm to 12.2 m)—more than double the range of the RS6000. This enables you to capture barcodes in hand and on the top shelf of a rack, regardless of condition—scratched, dirty, poorly printed, or under shrinkwrap. We offer the RS6100 with Zebra's exclusive PRZM Intelligent Imaging software to ensure fast and accurate capture in virtually any environment.

Yes, the RS6100 is engineered for extreme environments and operates reliably from -30°C to +50°C (-22°F to 122°F). It's triple-tested for durability across the entire temperature range—drop tested in both freezing and hot conditions—so you can deploy it in freezers, coolers, on the dock in rain and snow, and in blazing summer heat without worrying about brittle plastics or component expansion. Contact us today to discuss your cold chain application requirements.

The RS6100 is less than half the size and weight of its predecessor, the RS6000—weighing just over two ounces and measuring two cubic inches. This dramatic reduction in size and weight makes it significantly more comfortable for scan-intensive warehouse operations while maintaining superior scanning performance. We offer the RS6100 as an excellent migration path for organizations currently using the RS6000.

The RS6100 wirelessly pairs with any Bluetooth-enabled Zebra enterprise-class mobile device, or any Bluetooth smartphone, tablet, or PC. It features Wi-Fi Friendly Mode to eliminate potential interference between Bluetooth and Wi-Fi connections on your network. Additionally, a corded adapter is available to connect to select Zebra mobile devices for battery-free operation. Visit barcodesinc.com to explore all connectivity options available from us.

We offer two PowerPrecision+ battery options: a standard battery that powers a full shift, and an extended battery for longer shifts. The removable and rechargeable batteries eliminate downtime—simply swap in a fully charged battery to keep the scanner in service. High-capacity ShareCradles can charge 20 RS6100 scanners or 40 batteries simultaneously, and PowerPrecision Console helps you identify aging batteries that can no longer hold a full charge.

Yes, the RS6100 shares common trigger assemblies, batteries, and mounts with the RS5100, making upgrades easy and cost-effective. Your existing RS5100 single and double trigger assemblies work with the RS6100, as do standard and extended batteries from the RS5100. The updated Enterprise Hand Mount, Back of Hand Mount, and Lanyard Mounts are compatible with both models, simplifying accessory management in mixed deployments. Contact us today for migration guidance from your RS5100 fleet.

The Zebra RS61B0-KFSSYWR Barcode Scanner is also known as ZEB-RS61B0KFSSYWR or RS61B0KFSSYWR.
