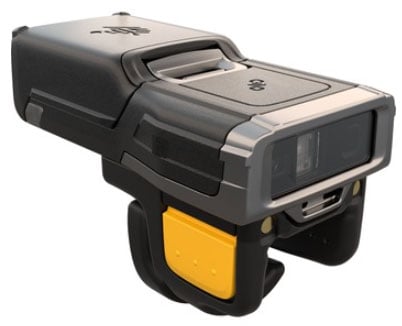

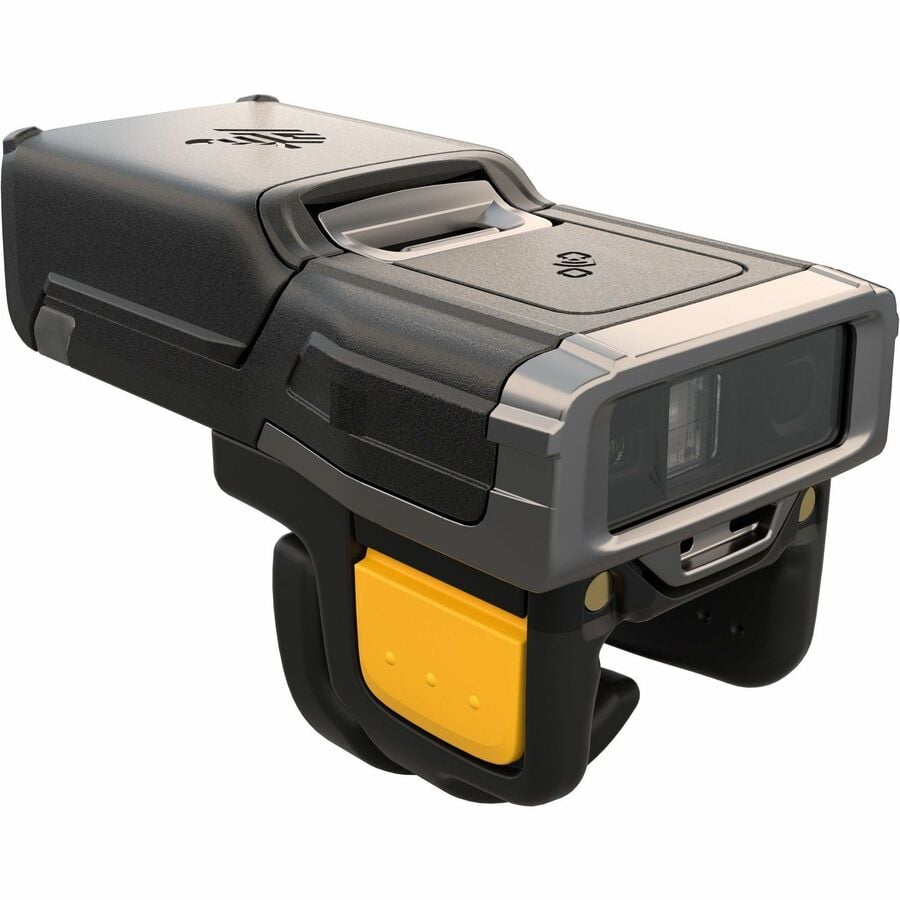

Zebra RS6100 – Barcode Scanner – Scanner Only

Part Number: RS61B0-KESSXWR
Model: RS6100
to get Free Ground Shipping on your order.
3-year Premium Plus ($437.96)
3-year Premium ($383.26)
No Support
$1,135.66
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Code 39 Code 128 Code 93 Codebar/NW7 Code 11 MSI UPC/EAN I 2 of 5 Korean 3 of 5 GSI DataBar Base 32 (Italian Pharma)2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal CodesOCR Symbologies: OCR-A OCR-B
Scan Engine Model
SE55

Product Description:

  Wearables, Zebra RS6100, Wearable Scanner, SE55, Extended Battery, Single Trigger, -30oC to +50oC Operation, Worldwide

Zebra RS6100 Barcode Scanner Model Overview

The RS6100 Bluetooth Wearable Scanner by Zebra is your ultimate solution for maximizing productivity in demanding environments. This lightweight and compact device, weighing just over two ounces, features an advanced multi-focus scan engine that captures 1D and 2D barcodes from as far as 40 ft. away, regardless of conditions. With five interchangeable wearing styles, it enhances user comfort and efficiency, whether in freezers, warehouses, or on loading docks. The removable battery design ensures minimized downtime, letting you swap batteries seamlessly for continuous operations.


Key Features
  • Maximum Versatility: Choose between cordless and corded operation.
  • Exceptional Scanning Range: Capture barcodes from 2 in. to 40 ft.
  • Durability: IP65 rated, withstands harsh conditions and multiple drops.
  • Instant Pairing: NFC technology for quick setup.
  • Custom Comfort: Five different wearing styles to suit user preferences.
  • Advanced Battery Management: Removable and replaceable batteries to reduce downtime.

Specifications
  • Dimensions: 2.62 in. L x 1.29 in. W x 0.83 in. D
  • Weight: 2.47 oz. with standard battery
  • Scanning Engine: SE55 1D/2D Advanced Range with IntelliFocus™
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Battery: 480 mAh standard; 735 mAh extended
  • Sealing: IP65 rated for water and dust resistance
  • Drop Specification: Multiple 6 ft./1.8 m drops to concrete
  • Bluetooth Technology: Class 1 and 2, Bluetooth v5.2
  • Supported 1D & 2D Symbologies: Various common formats including QR Codes and UPC
  • Warranty: 1-year limited warranty against defects
Zebra RS61B0-KESSXWR Barcode Scanner Overview

Maximum versatility, power and performance

Introducing Zebra's most powerful and versatile wearable scanner-the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition-scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there's a style that will maximize comfort for every user. Use it anywhere-from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery-no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.

Five Interchangeable Wearing Styles

Five different mounts provide users with the freedom to choose the wearing style they prefer to maximize comfort, simplify task execution-and increase job satisfaction. All mounting accessories are interchangeable-swap at any time to maximize user comfort for scan-intensive tasks. The Enterprise Hand Mount accessory gives every hand a snug, comfortable and secure custom fit with a range of sizes for right and left hands-and users can adjust the scanner position on the hand to achieve the perfect balance and optimal scan angle for the ultimate in comfort and user productivity. For workers who prefer to wear the scanner on one finger, there are two single finger mount options-single and double triggers. The single trigger can be removed and rotated, allowing users to easily switch between left and right finger mounting. The double trigger enables workers to change hands on the fly-without removing the trigger. All triggers support continuous scanning mode. And the optional vibrating trigger signals an error or exception, allowing users to take corrective actions. The ambidextrous, one-size-fits-all back of hand mount accommodates gloves and easily fits into the smallest of spaces. And a retracting lanyard trigger worn around the neck or on a belt keeps the scanner handy, yet out of the way

Use it Everywhere-Including The Freezer

Use the RS6100 in freezers and coolers, out on the dock in the sweltering heat and subzero cold, rain, snow-the RS6100 is built to handle it all.

Small and Practically Weightless

The RS6100 is less than half the size and weight of its predecessor, the RS6000-just over two ounces and two cubic inches.

Cordless or Corded-It's Your Choice

Pair with any Bluetooth-enabled Zebra enterprise-class handheld, tablet, wearable or vehicle mount mobile computer to utilize the full feature set of the RS6100-or pair with any existing Bluetooth smartphone, tablet or PC. Want to eliminate the need for batteries with corded operation? Power the RS6100 via a corded adapter that connects to select Zebra mobile devices, including wearable and handheld computers.

Instant Pairing-Just Tap and Go

With NFC, simply tap the RS6100 on NFC-enabled Zebra devices- no need to scan a pairing barcode or open Bluetooth settings to identify and select the device.

Direct Users With Programmable Line-of-Sight LEDs

Programmable multiple LEDs on the back of the RS6100 can provide users with feedback to improve productivity and task accuracy- confirm successful scans, direct users through the fastest path to the right item

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes

OCR Symbologies:

  • OCR-A
  • OCR-B


Scan Engine Model:
SE55
Light Source:
Laser
Image Sensor Type:
Imager
Scan Mode:
Trigger
Depth of Field:
  • 2.7 in./6.9 cm to 16.2 in./41.1 cm @ 3 mil Code 39
  • 2.5 in./6.4 cm to 26.6 in./67.6 cm @ 5 mil Code 39
  • 2.8 in./7.1 cm to 19.6 in./49.8 cm @ 5 mil PDF417
  • 2.6 in./6.6 cm to 25.6 in./65.0 cm @ 6.7 mil PDF417
  • 2.2 in./5.6 cm to 27.1 in./68.8 cm @ 10 mil DataMatrix
  • 2.5 in./6.4 cm to 71 in./180 cm @ 100% UPC (13 mil)
  • 7.2 in./18.2 cm2 to 72 in./182.9 cm @ 15 mil Code 128
  • 109 in./276.9 cm² @ 20 mil Code 39
  • 293 in./744.2 cm² @ 55 mil Code 39
  • 554 in./1407.2 cm² @ 55 mil Code 39
  • 270 in./685.8 cm² @ 100 mil DataMatrix
Scan Pattern:
Area
Scanner Range:
Standard Range
Scanning Distance:
46.17 ft
Features:
  • Beep
  • Notification LED
  • Vibration
Field of View (Horizontal):
37°
Field of View (Vertical):
21°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
107639 lux
Drop Specification:
  • Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
100 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
100 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
2688 x 1520
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
15kV DC
Contact Electrostatic Discharge (+/-):
8kV DC
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Serial
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
735 mAh
Environmental Conditions
Operating Temperature:
-22°F (-30°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Durability:
  • Water Proof
  • Dust Proof
  • Spill Resistant
Width:
1.3"
Depth:
0.8"
Length:
2.6"
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Warehouse
  • Distribution
  • Picking
  • Packing
  • Sorting
  • Manufacturing
  • Assembly Line
  • Component Tracking
  • Inventory
  • Logistics
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (1)
  • Carrying and Protective Accessories (4)
  • Docks and Cradles (3)
  • Mounting Hardware and Stands (2)
  • Power Device (1)

Recommended Accessories for Model: Zebra RS61B0-KESSXWR Barcode Scanner

Top Batteries Purchased With Zebra RS61B0-KESSXWR

  • Zebra BTRY-RS5X6-6MA-01 Battery
    Zebra BTRY-RS5X6-6MA-01 Battery
    Batteries, Zebra, RS5100 / RS6100 Lithium Ion Battery for Freezer Operation, 660mAh, Worldwide, Enables Operation From -30 C/-22 F to 50 C/122 F With RS6100 And -20 C/-4 F To 50 C/122 F With RS5100
    In Stock
    $118.82
    Add to Quote

Top Cables, Connectors, and Adapters Purchased With Zebra RS61B0-KESSXWR

Top Carrying and Protective Accessories Purchased With Zebra RS61B0-KESSXWR

See All Carrying and Protective Accessories for Zebra RS61B0-KESSXWR Barcode Scanner >

Top Docks and Cradles Purchased With Zebra RS61B0-KESSXWR

  • Zebra CRD-RS61-20SCHG-01 Docks and Cradles
    Zebra CRD-RS61-20SCHG-01 Docks and Cradles
    Docks and Cradles, Zebra, RS6100 20-Slot Ring Scanner Charger, Allows Charging Of 20 RS6100 Ring Scanners, Requires PWR-BGA12V108W0WW, DC Line Cord CBL-DC-382A1-01 And 3-Wire Grounded Country Specific AC Line Cord, Sold Separately.
    In Stock
    $1,601.46
    Add to Quote
  • Zebra CRD-RS61-4SCHG-01 Docks and Cradles
    Zebra CRD-RS61-4SCHG-01 Docks and Cradles
    Docks and Cradles, Zebra, RS6100 4-Slot Ring Scanner Charger, Allows Charging Of 4 RS6100 Ring Scanners, Requires PWR-BGA12V50W0WW, DC Cable CBL-DC-388A1-01 And 3-Wire Grounded Country Specific AC Line Cord, Sold Separately.
    In Stock
    $369.57
    Add to Quote
  • Zebra CRD-RS5X6-2SCHG-01 Docks and Cradles
    Zebra CRD-RS5X6-2SCHG-01 Docks and Cradles
    Docks and Cradles, Zebra, RS5100/RS6100 2 Bay Charger, Requires Country Specific Charger PWR-WUA5V12W0XX And CBL-TC5XUSBc2A-01, Optional Shim For Battery Charging Is Shim-CRDr5X62B-01.
    In Stock
    $184.29
    Add to Quote

Top Mounting Hardware and Stands Purchased With Zebra RS61B0-KESSXWR

Top Power Device Purchased With Zebra RS61B0-KESSXWR
